Albedo xGenius - tester do 10G


⇒ Pomiary IP / Ethernet / PTP / SyncE / T1 / E1 / E0 / C37.94 oraz Datacom
⇒ Produkcja EU
⇒ Podówjne porty
⇒ Pomiar SyncE oraz PTP z opcją zegara Rubidowego
⇒ Lekka konstrukcja, długa żywotność baterii
⇒ Symetryczne i asymetryczne testy RFC-2544
⇒ Symetryczne i asymetryczne testy eSAM (Y.1564)



xGenius to przenośny tester IP / Ethernet / PTP / SyncE / T1 / E1 / E0 / C37.94 oraz Datacom. Urządzenie posiada duży ekran dotykowy oraz zasilanie bateryjne. Urządzenie zaprojektowane zarówno do pracy w terenie jak i w laboratoriach. Jego konstrukcja jest lekka (1,9kg) oraz bardzo wytrzymała. Urządzenie pozwala na pomiary sieci transmisyjnych oraz synchronizacyjnych do 10Gb/s. Wspiera emulację PTP master/slave. Szeroka gama trybów pracy pozwala na testy wydajności, jakości, opóźnienia (ona-way) oraz Wander`a na wszystkich interfejsach. Wbudowany zegar rubidowy dyscyplinowany oscylatorem GNSS pozwala bardzo dokładne pomiary czasowe.

Platform

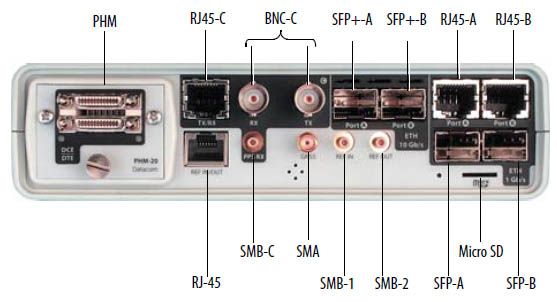

Multiport Interfaces

  • A:B ports: 2 x SFP/SFP+ (100MbE, 1GbE, 10GbE, 10G WAN)
  • A:B ports: 2 x RJ45 (10MbE, 100MbE, 1GbE)
  • C:D ports: Balanced 2 x RJ45 (T1/E1)
  • C:D ports: Unbalanced 2 x BNC (T1/E1)
  • GNSS Port: SMA female
  • PPS Ports: 3xSMB female (i/o)

Hot swappable modules

  • C37.94
  • Datacom DTE/DCE: V.11/X.24, V.24/V.28, V.24/V.35, V.24/V.11 (V.36/RS449)
  • VF Port
  • Codirectional - G703

Operation / Results

  • Graphic and tabular wander results
  • Navigation: by touch screen, keyboard, mouse
  • Remote Control: by VNC
  • Storage capacity: one week of results
  • Export: results in pdf/txt/csv through USB interface or SD card
  • Report export to remote host through Ethernet / IP

Ergonomics

  • Size: 260 x 160 x 63 mm
  • Weight: 1.9 kg
  • Light and easy to carry in a small bag
  • Start: Manual / Timed with optional password

Batteries

  • Two pack of Lipo batteries always included
  • Large duration that also depends on operation, conditions, aging, etc.

Time / Clocks

Internal Clocks

  • Default better than ±2.0 ppm
  • OCXO better than ±0.1 ppm
  • Rubidium better than ±5.0e-11 (GNSS disciplined, warm- up: 600s)

Internal Rubidium clock

Free―run (No GPS)

  • Freq. accuracy (7.5 minutes warm up): ± e-9
  • Freq. accuracy on shipment (24 h. warm up): ±5.0e-11
  • Aging (1 day, 24 hours warm up): ±0.5e-11
  • Aging (1 year): ±1e-9

GPS locked

  • Time accuracy (24 h. locked): ±50 ns

Hold - over (after 24 h. locked)

  • Freq. accuracy: 1.5e-11 / 24h
  • Time accuracy: ±100 ns / 2h, ±1.0μs / 24 h

Input Clock References

  • Rates: 1.544 Mb/s, 2.048 Mb/s, 1.544 MHz, 2.048 MHz, 10 MHz
  • Built-in GNSS receiver, 1 pps
  • SyncE
  • GNSS
  • ToD
  • 1PPS
  • T1/E1 (1544 kb/s, 2048 kb/s)
  • Custom delay compensation for phase and time

Output Clock

  • 2.048 MHz, 10 MHz
  • 1 pps
  • ToD
  • Custom delay compensation for phase and time

SyncE and PTP testing

  • PTP profiles: Telecom and Power
  • Encapsulations: Ethernet and UDP
  • Clock emulation: Master / Slave, Unicast/Multicast, 128 packet/s
  • PDV capture, protocol analysis and correction field support

Ethernet PTP Frequency testing

  • Floor Delay Population (G.8260): FPC, FPR, FPP
  • Wander: Analysis and Generation TIE, MTIE and TDEV (in real time)

Ethernet PTP Phase testing

  • Measured at GbE and 1pps interfaces
  • Time Error (TE): Maximum (max |TE|), Dynamic (dTE), Constant (cTE)

1 pps testing

  • Wander: TIE, MTIE, TDEV
  • Time Error (TE): Maximum (max |TE|)

Synchronous Ethernet

  • ESMC / SSM: Generation, decoding and transparent forwarding
  • Wander: Analysis/Generation: TIE, MTIE and TDEV (in real time)

Latency and Delay measurements

E1, T1, GbE and 10GbE interfaces

  • Round-trip delay (RTD)
  • One-way delay (OWD) GNSS assisted

Ethernet PTP (GbE and 10GbE)

  • Floor delay packet population, ratio/percentage/count
  • Path delay asymmetry
  • End-to-end / peer-to-peer path delay mechanisms
  • Master-to-slave / Slave-to-grandmaster latency
  • PTP packet delay variation test
  • Time Error (TE): Maximum (max |TE|), Dynamic (dTE), Constant (cTE)

Service Disruption Time

  • Interfaces: E1, T1, IEEE C37.94, Datacom, Co/Contra-directional
  • Resolution: 100 us

Packet Capture

Protocol Analysis

  • Wirespeed performance
  • Programable capture filters
  • Zero-delay technology
  • Save them in PCAP format
  • Full duplex operation

Ethernet/IP Testing

8 x independent streams

  • Streams: may use individual sour/dest. addresses and bandwidth profile
  • Internet Protocol: IPv4 / IPv6 support
  • Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP), MPLS, and Jumbo
  • IP with UDP or arbitrary protocol
  • DHCP for source IP and ARP for destination MAC

Counts et statistics

  • Frame counts, IP traffic statistics, and bit rate
  • Top ten VLAN, MAC, IPv4 and IPv6 addresses
  • QoS: Latency, Delay variation, Loss ratio, SES, Availability, OOS, Duplicated

BER Tests et Patterns

  • Traffic generation: Continuous, Burst, Ramp, Random
  • PHY layer: RPAT, JPAT, SPAT, HFPAT, LFPAT, MFPAT, LCRPAT, SCRPAT
  • Layer 2/4 PRBS: 2e11-1, 2e15-1, 2e20-1, 2e23-1, 2e31-1
  • Layer 2/4 PRBS: all inverted versions

Symmetric/Asymmetric RFC-2544

  • Throughput
  • Latency
  • Loss
  • Back-to-back
  • System Recovery

Symmetric/Asymmetric eSAM (Y.1564)

  • Latency, Delay Variation, Loss, and Availability
  • Eight / four services (colour/not colour)
  • CIR, EIR, max, Througput

Loopback

  • L1 - L4 loopback mode
  • Traffic filtering by
  • sour/dest MAC/IP/Port
  • VLAN, CoS (DSCP/PCP)
  • Protocol




TCP test - RFC 6349

8 x independent streams

  • Modes: active (client), passive (server)
  • ALBEDO / IPerf3 endpoints in client mode
  • Configurable MTU and MSS
  • Configurable Bottleneck Bandwidth (BB) in f/s, %
  • Round-Trip Time (RTT)
  • Window Sweep at 25 / 50 / 75 / 100% of BDP size
  • Transfer Time Ratio, TCP Efficiency, Buffer Delay

PDH / T.Carrier testing

Interfaces

  • T1 (ANSI T1.102)
  • E1 (ITU-T G.703)
  • E0/Co-Directional (ITU-T G.703)

Modes

  • Terminal
  • Monitor
  • High Impedance
  • Pass-through
  • T1: Framed SF and ESF and unframed Generation/Analysis
  • E1: Framed PCM-30 / 31 with/without CRC and Unframed signals
  • T1/E1: Display and Edition: all fields, CAS, Pulse Masks, Events
  • Channel map: Busy/Free, External Drop/Insert of 64 kb/s co-dir or datacom

Measurements

  • BER
  • Line/Freq
  • Errors/Alarms
  • G.821, G.826, M.2100
  • VF: tone generation/analysis
  • Attenuation, Freq, Freq. deviation, Level, Peak codes

Synchronization

  • Jitter analysis: Peak to peak, RMS, hits, count (0.1 to 100 kHz range)
  • Wander: Analysis/Generation and masks (1 μHz to 10 Hz range)
  • Wander Analysis/Generation in 10 MHz, 2048 kHz, 1544 kHz, 1pps

C37.94 testing

Operation Modes

  • Unframed or framed operation
  • Clock: Recovered or Internal
  • End point or terminal mode
  • Results with PASS/FAIL indications

    Analysis & Generation

  • Bit Rate generation in steps of nx64 kb/s up to 768 kb/s
  • BER test
  • ITU-T G.821 performance test
  • Event Detection / Insertion
  • Defects: LOS, AIS, LOF, RDI, LSS, All 0, All 1
  • Anomalies: FAS, TSE, Slip

    Delay & Freq. Tests

  • Round Trip Delay (ms)
  • One-way Delay synchronized with GPS
  • Frequency (Hz)
  • Frequency Deviation (ppm), max. Deviation

    Jitter and Wander analysis

  • Peak to peak, RMS, jitter, hits detection and count
  • MTIE and TDEV resolution: 100 ps
  • Pass / Fail based on standard masks

    C37.94 SFPs

  • Multi-mode: SFP 850 nm, 2048 kbit/s, 1500 meters
  • Single-mode; SFP 1310 nm, 2048 kbit/s, 10 km
  • Optical Power Meter

Cable features

Cable tests

  • Wiremap
  • Skew
  • Cable Diagnostics
  • Distance to fault

    Power over Ethernet

  • PoE and PoE+
  • Volts / Current

Datacom testing

Modes

  • Terminal emulation
  • Bi-directional Monitoring
  • Datacom / E1 mux

Display and Edition

  • DTE/DCE control circuit
  • Timing circuits
  • Binary rates

Tests

  • BER, Frequency
  • Insertion/Analysis of events
  • G.821
  •
