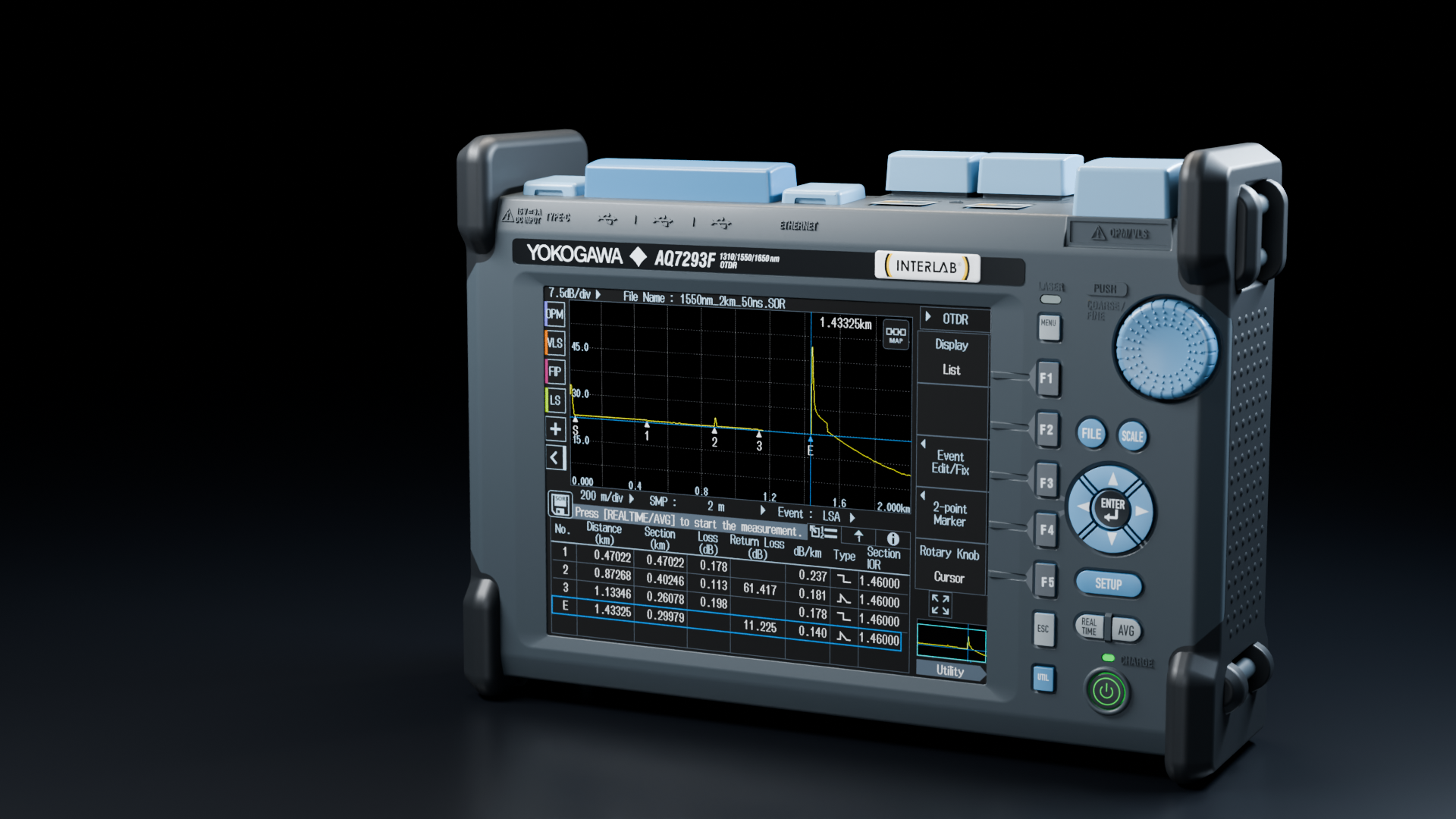

Yokogawa AQ7290 OTDR

The Yokogawa AQ7290 OTDR optical reflectometer is a high-end, new-generation portable OTDR with an 8.4″ touchscreen. It supports PON networks up to a 1:128 split, measurements over 100 km and up to 2000 fibers in a multi-fiber project. Equipped with USB-C power and Wi-Fi remote control.

8.4″ touchscreen
Supports PON networks up to 1:128
Measurements over 100 km
USB-C Power Delivery
Wi-Fi remote control

Yokogawa AQ7290 – the new-generation OTDR optical reflectometer

The Yokogawa AQ7290 OTDR optical reflectometer is a flagship, portable measurement instrument for the installation, maintenance and diagnostics of fiber optic networks – from FTTH to backbone routes over 100 km. It combines the highest dynamic range, an intuitive touchscreen and extensive multitasking capabilities in one compact housing.

Key benefits of the AQ7290 series

› RELIABILITY

Rugged construction for harsh field conditions. The operating system provides stability and virus resistance.

› EASE OF USE

8.4" multi-touch screen. Simple OTDR mode, Wi-Fi remote control, USB Power Delivery.

› SPEED

Instant start-up, immediate reports over wireless connectivity. Multitasking maximises productivity.

Model choice – 6 OTDR variants

The AQ7290 series comprises 6 OTDR models and 2 optical power meter (OPM) types. It covers needs from FTTH installation to measurements beyond 100 km.

Model	Wavelengths	Dynamic range (dB)	Characteristics
AQ7292A	1310 / 1550 nm	39 / 37 dB	Short-range model up to 70 km
AQ7293A	1310 / 1550 nm	43 / 42 dB	Standard model, PON split up to x128
AQ7294A	1310 / 1550 nm	47 / 47 dB	High dynamic range, measurements >100 km
AQ7293F	1310 / 1550 / 1650 nm	43 / 42 / 40 dB	2 ports, live-line maintenance, built-in filter
AQ7293H	1310 / 1550 / 1625 nm	43 / 42 / 40 dB	1 port, 1625 nm service band
AQ7294H	1310 / 1550 / 1625 nm	47 / 47 / 45 dB	1 port, high dynamic range, 1625 nm service band

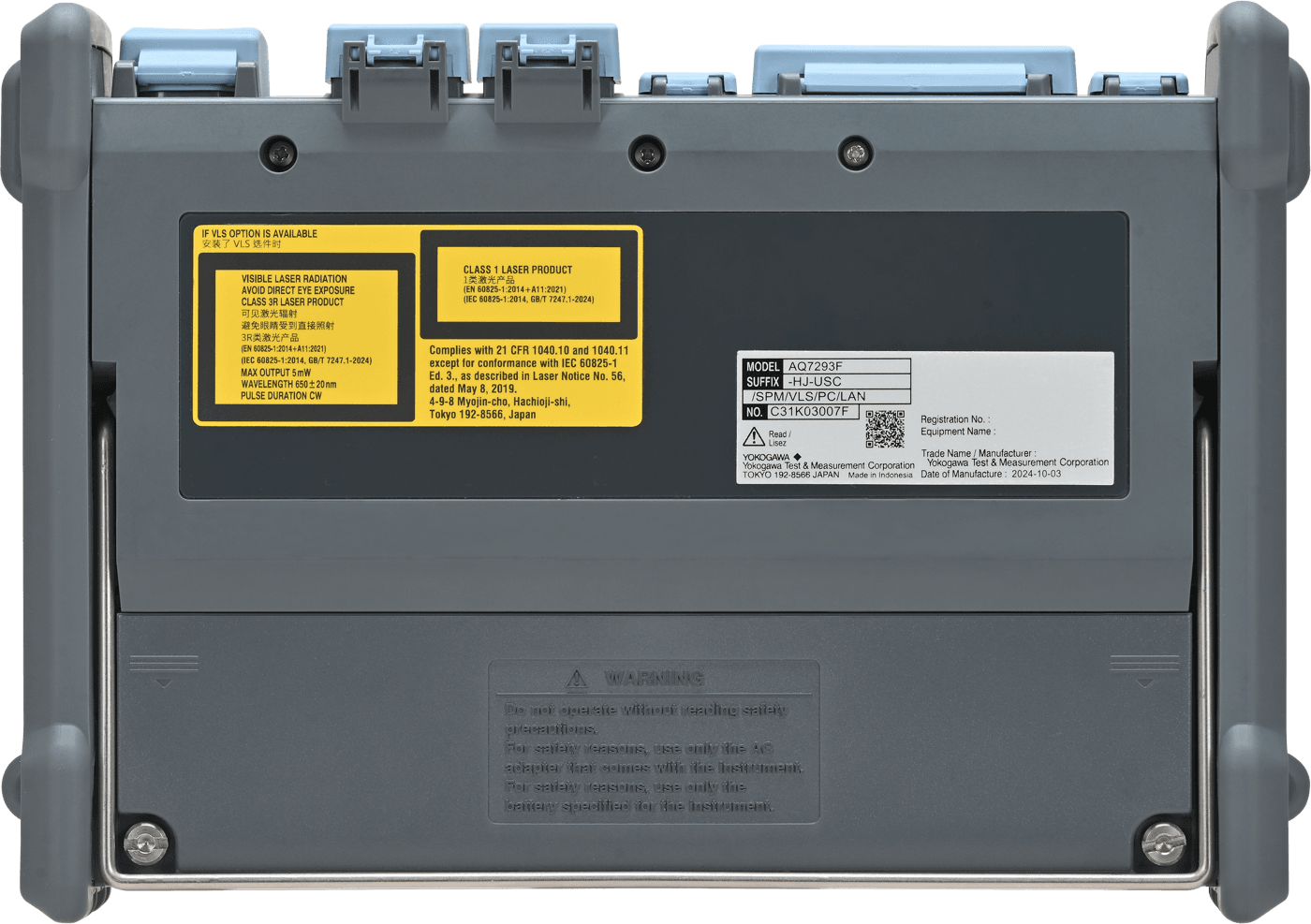

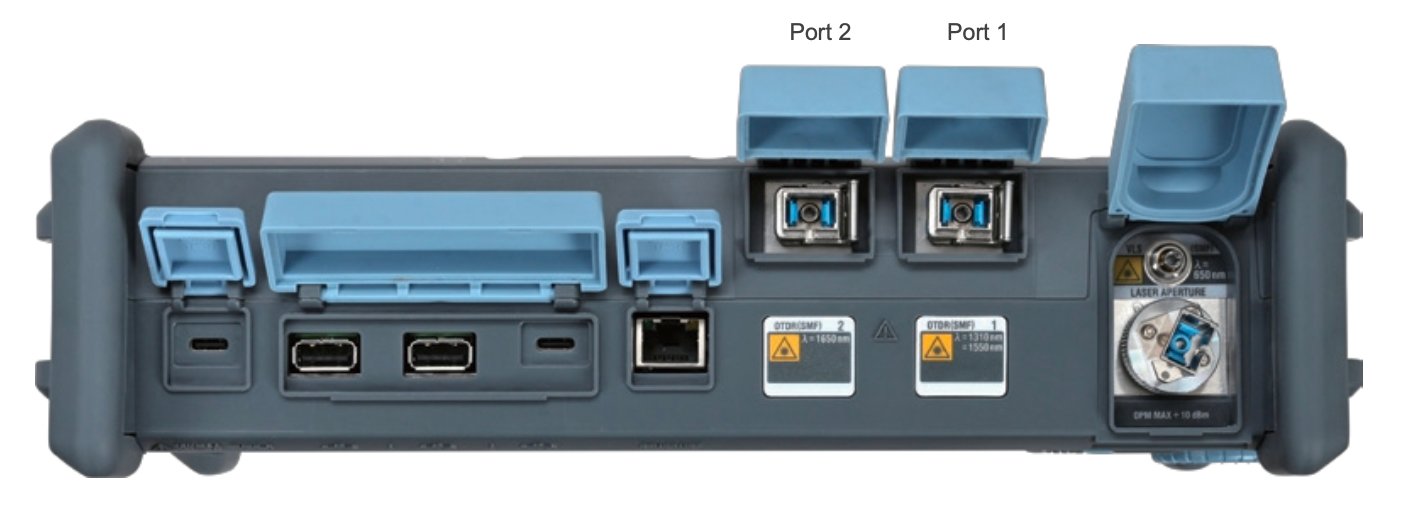

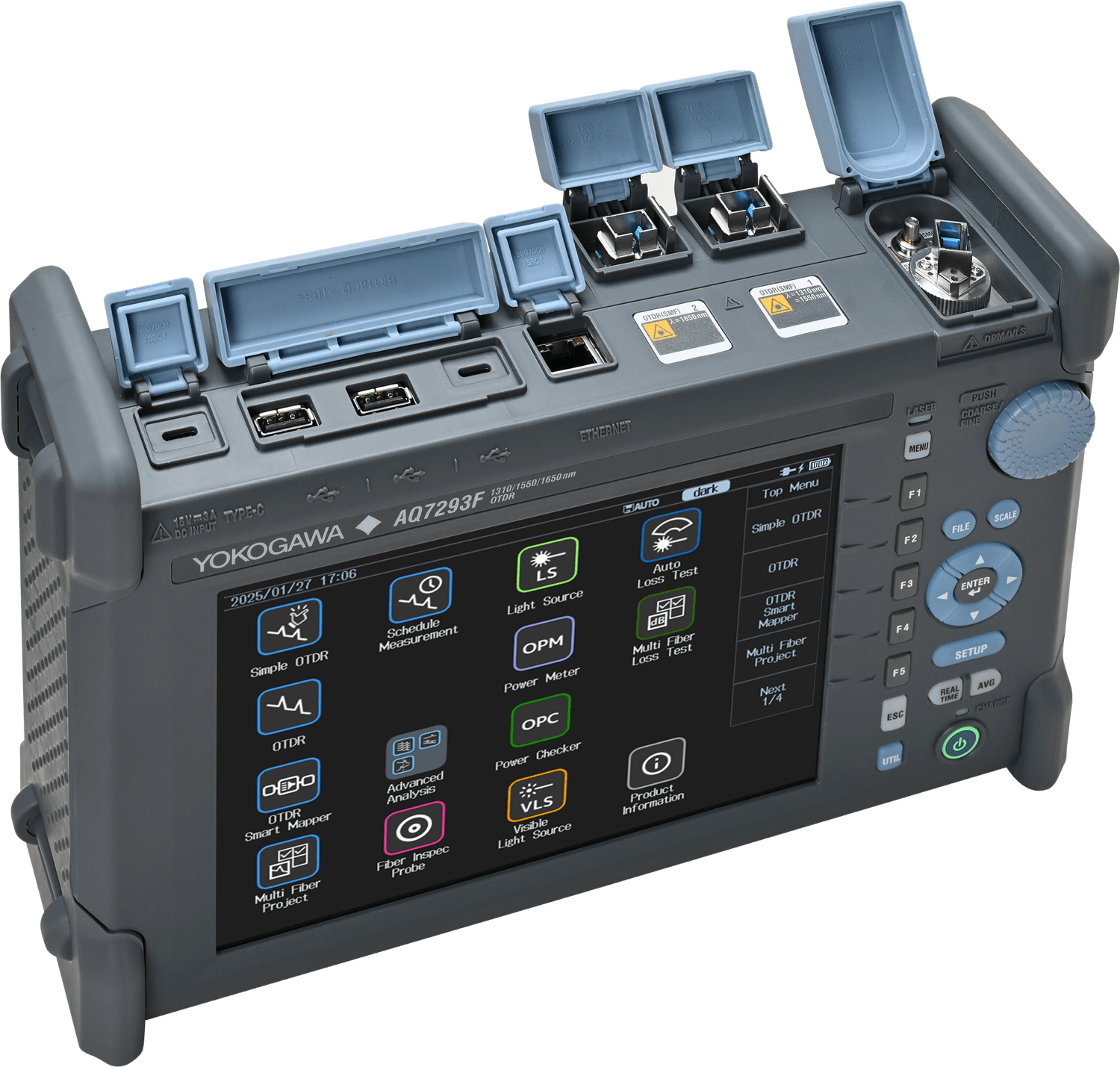

Rear panel: Port 2 (1650 nm) – Port 1 (1310/1550 nm) – USB – Ethernet – OPM/VLS

Excellent OTDR performance

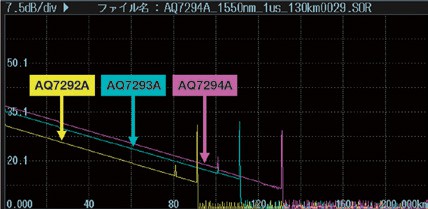

Improved dynamic range

The AQ7290’s dynamic range has increased by 1–3 dB at all wavelengths vs the predecessor AQ7280. This enables measurement of greater distances that were previously out of reach.

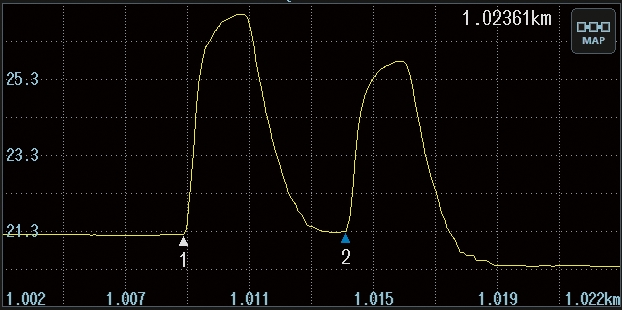

Improved event-detection performance

Event dead zone ≤ 0.6 m, attenuation dead zone ≤ 2.5 m. Distinguishes closely spaced connectors – indoor and fixed cabling.

PON measurement – supports split ratios up to 1:128

The AQ7290 supports PON networks with a split of up to 128 subscribers. Two Real-Time modes (High-Speed and High-Reflection) ensure an accurate reading even at a high reflection coefficient.

Ease of use

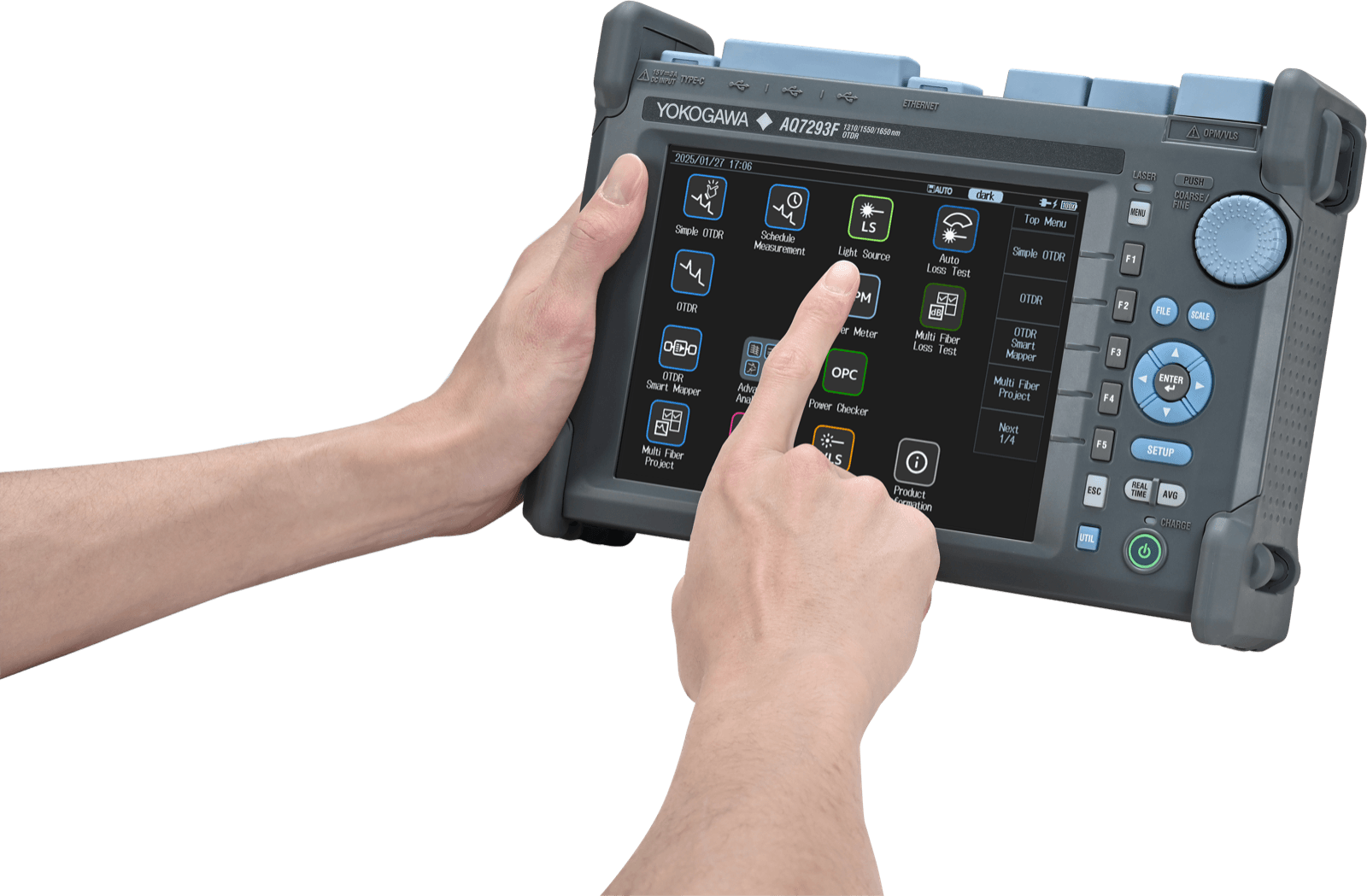

8.4" touchscreen

Capacitive multi-touch with pinch-zoom and drag support. Simply touch an icon in the main menu.

USB Power Delivery

Charging via USB Type-C (Power Delivery 2.0, min. 45 W). Works with a power bank. Runtime: 15 hours.

Simple OTDR – a mode for beginners

One-button measurement. A pop-up guides you through the successive steps – no OTDR experience required.

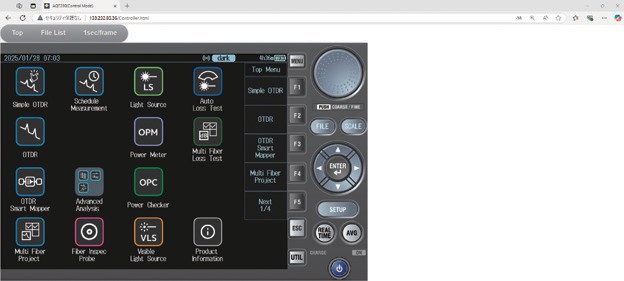

Remote control over Wi-Fi

Via an external LAN adapter – operate from a smartphone or PC through a browser. Eliminates the need for two technicians on a single operation.

Multitasking – more than an OTDR

Available in parallel with the OTDR measurement:

Stabilised light source (LS) – standard
Visible light source (VLS) – /VLS option
Optical power meter (OPM) – /SPM or /HPM option
Power Checker (OPC) – /PC option
Fiber end-face imaging (video probe)
Control of the AQ3550 optical switch

Smart Mapper and multi-fiber measurement

The Smart Mapper function is an advanced mode for automatic measurement and analysis of a fiber optic network. At the press of one button the device performs the measurements itself, detects all events in the network and makes a PASS/FAIL assessment against user-defined thresholds. The icon map view lets you instantly see the location and type of every event – connectors, splices, splitter, fiber end – without having to analyse raw OTDR traces.

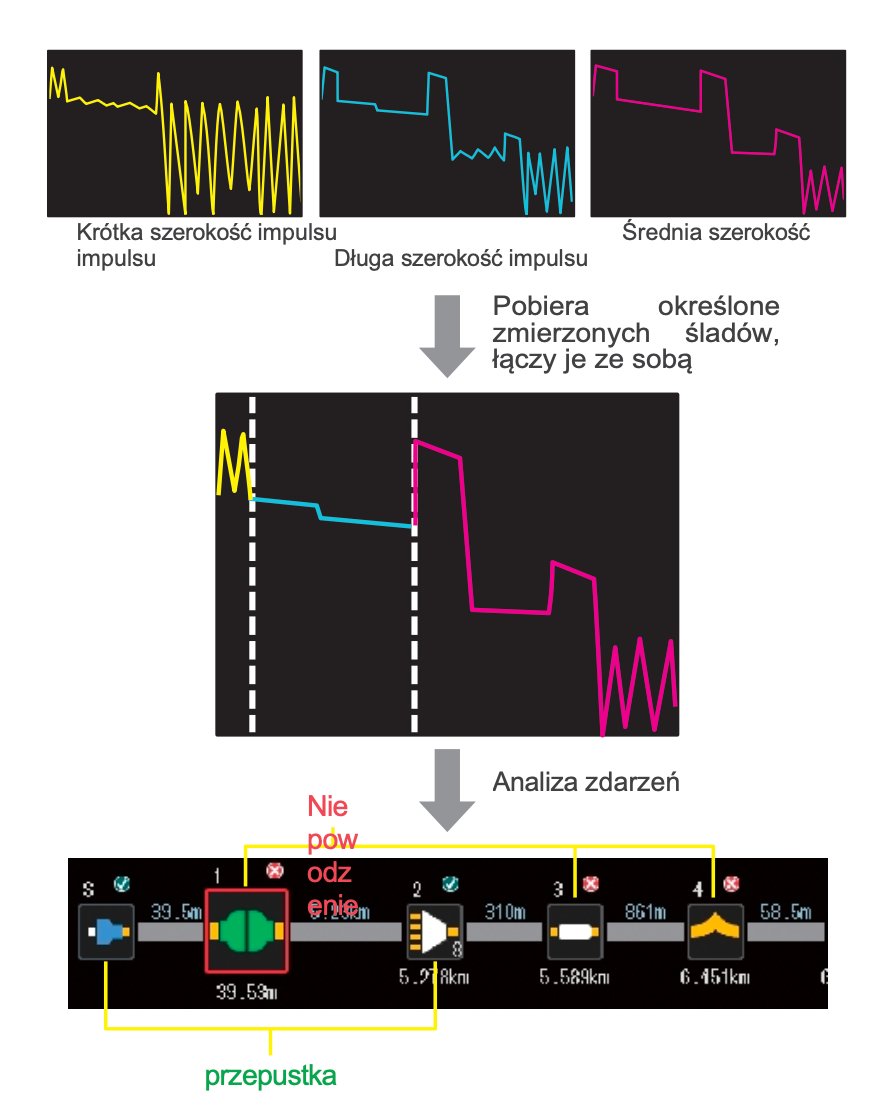

Advanced multi-pulse analysis

The AQ7290 takes measurements with different pulse widths (short, medium, long) and then automatically merges the selected segments of each trace into one optimal trace. A short pulse width provides accuracy near connectors, a long one provides range over large distances. The result is a complete, precise picture of the entire route, followed by automatic event analysis.

Smart Mapper: merging traces from different pulse widths → event analysis → PASS/FAIL assessment on the network map

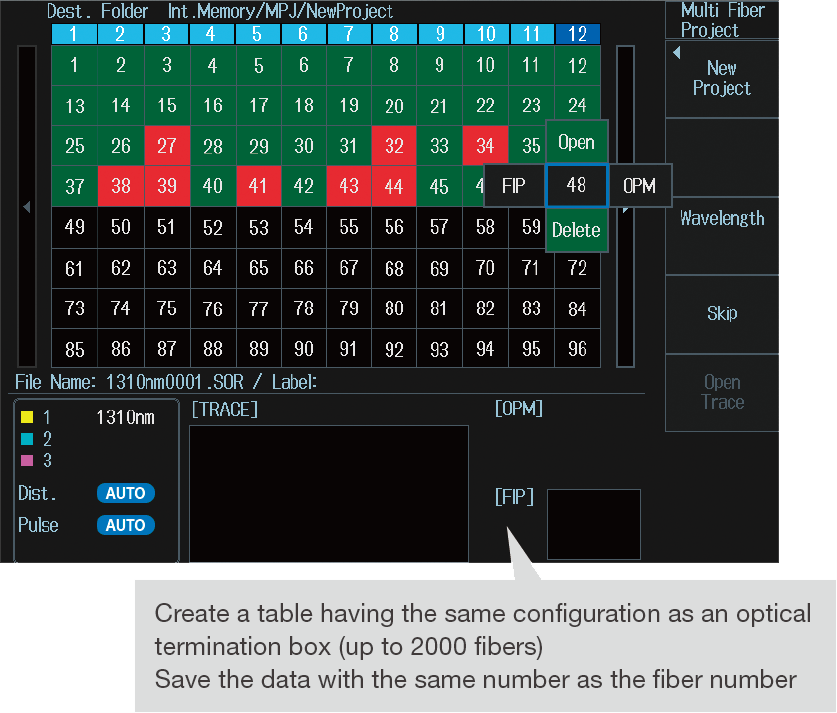

Multi-fiber measurement up to 2000 fibers

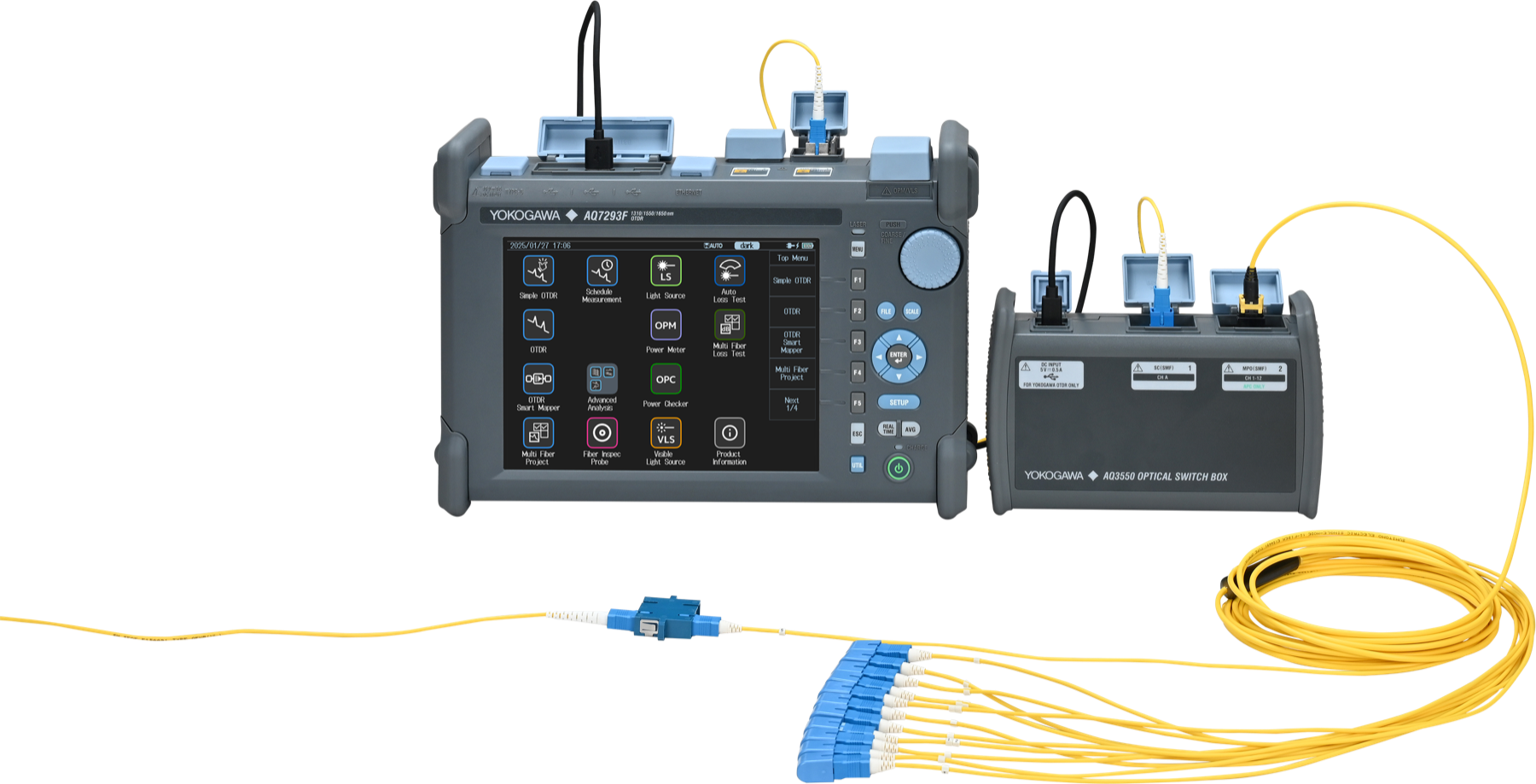

The multi-fiber project module creates a table mapping the distribution-box configuration – up to 2000 fibers. Each measured fiber is automatically saved under its number, and a change in the number colour signals test completion and prevents omissions. Integrated control of the external AQ3550 optical switch allows the measurement sequence to be automated without manually re-connecting cables.

Technical specifications

Parameter	Specification
Display	8.4" colour TFT LCD 800×600 px, multi-touch
Fiber	SM (ITU-T G.652)
Measurement range	0.1 to 512 km
Pulse width	3–20 000 ns (14 settings)
Event dead zone	≤0.6 m (3 ns pulse)
Attenuation dead zone	≤2.5 m (10 ns pulse)
Loss accuracy	±0.03 dB/dB
Internal memory	1 GB / up to 60 000 traces; microSD up to 2 TB
Optical connector	SC, FC, SC Angled-PC adapter
Interface	USB 2.0×3, Ethernet 1000BASE-T (option), microSD
Power	USB-C Power Delivery 2.0, min. 45 W
Battery	Li-Ion, 15 h runtime, 6 h charging
Dimensions / Weight	287×210×80 mm / approx. 2.6 kg
Operating temperature	−10 to +50 °C
Warranty	3 years
File formats	SOR, SOZ, CSV, BMP, JPG, PDF

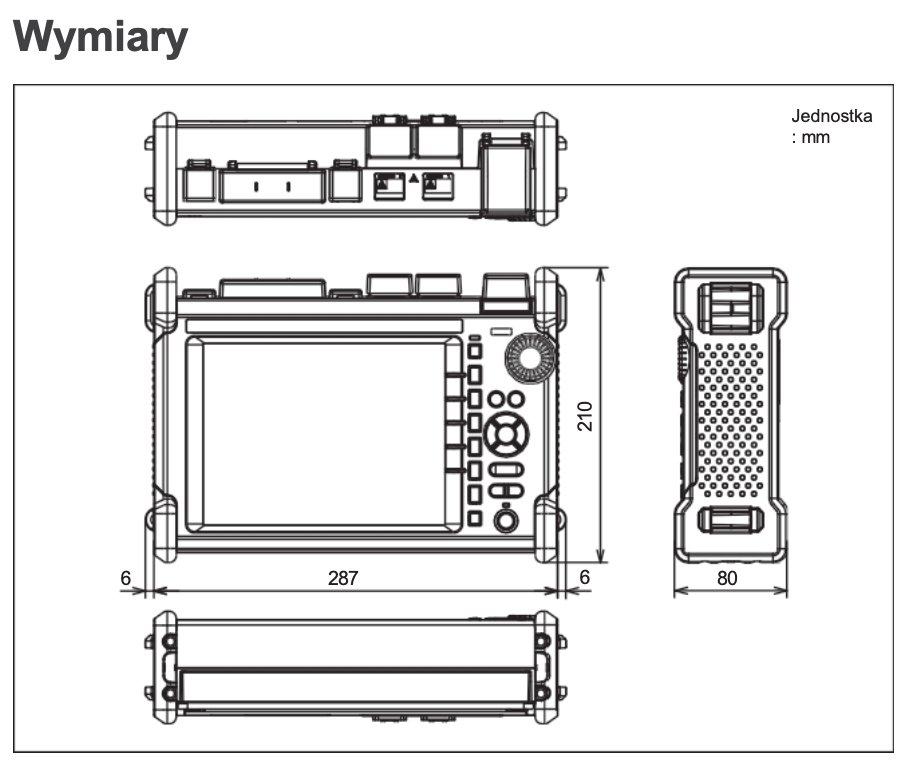

Dimensions: 287×210×80 mm | Weight: approx. 2.6 kg

Accessories and software

Available for the AQ7290 OTDR:

Soft case (739860)
Spare battery (739883)
Shoulder strap (B8070CY)
External optical switch AQ3550 (1×12, SM)
SC, FC, SC Angled-PC, LCSC optical adapters
AQ7933 software – analysis of up to 1000 traces, PDF reports, remote control
Monitoring function licence (/MNT)
Fiber end-face test licence (/FST)
