Prophea.X · Ergoneers — One timeline for eye tracking, biosignals and simulators

Software for human behavior research. It records mobile eye trackers, cameras, a microphone, physiological signals and simulator or vehicle data at the same time — for one person or a whole group — and takes you from recording to a report with attention metrics.

Request a quote How it works
no limiton data streams in the Unlimited package
many participantsrecording and analyzing a group at once
30+ metricsfor eye tracking, incl. per ISO 15007
100% localoffline, behind your firewall, no cloud

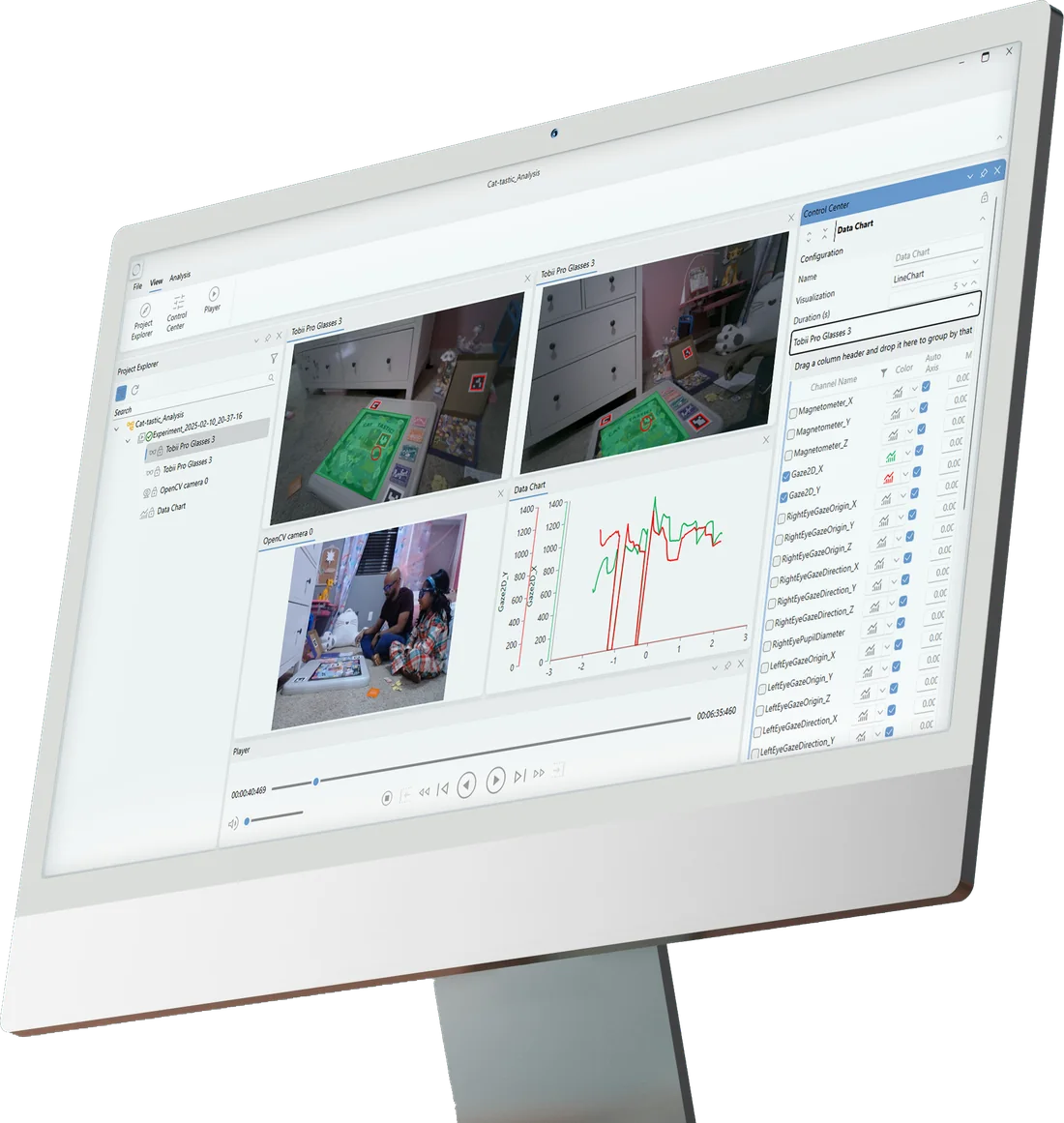

A monitor with Prophea Analyzer software: two recordings from eye tracking glasses, a signal chart and a list of data channels
Eye tracker 1 Eye tracker 2 Camera + audio EEG GSR · ECG Simulator · CAN
REC 00:12:43.218
all streams on a shared clock · illustration
00:01 · What Prophea.X is

Every device in your study on one clock

In human behavior research, each device usually has its own software, its own clock and its own file. Eye tracking glasses record gaze, a camera — video, a skin sensor — arousal, and a simulator — what happened in the scenario. Putting it all together can take longer than the study itself.

Prophea.X records all these sources at the same time and stores them on a shared timeline. Afterwards, one click takes you to the moment of an event, and you see where the participant was looking, how their body reacted and what they were doing.

  1. Connect

    Eye tracking glasses, cameras, a microphone, physiological sensors, a simulator or a vehicle — via USB, network (TCP/IP), LSL, CAN-Bus or ROS 2.

  2. Record

    Prophea Data Engine triggers the recording on all devices at once. You see the camera video, the gaze point and signal charts live.

  3. Analyze

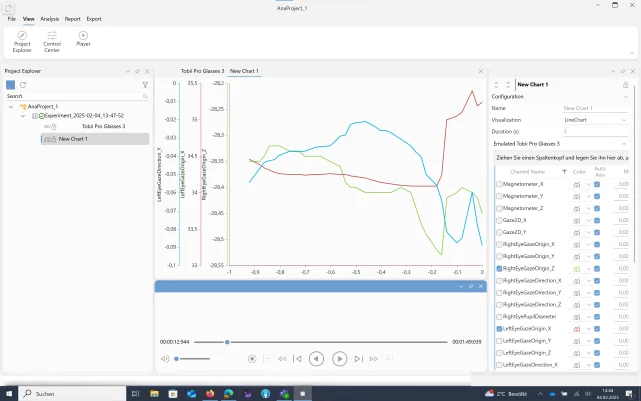

    You open a single project file in Prophea Analyzer: replay everything together, define areas of interest, calculate metrics and export a report.

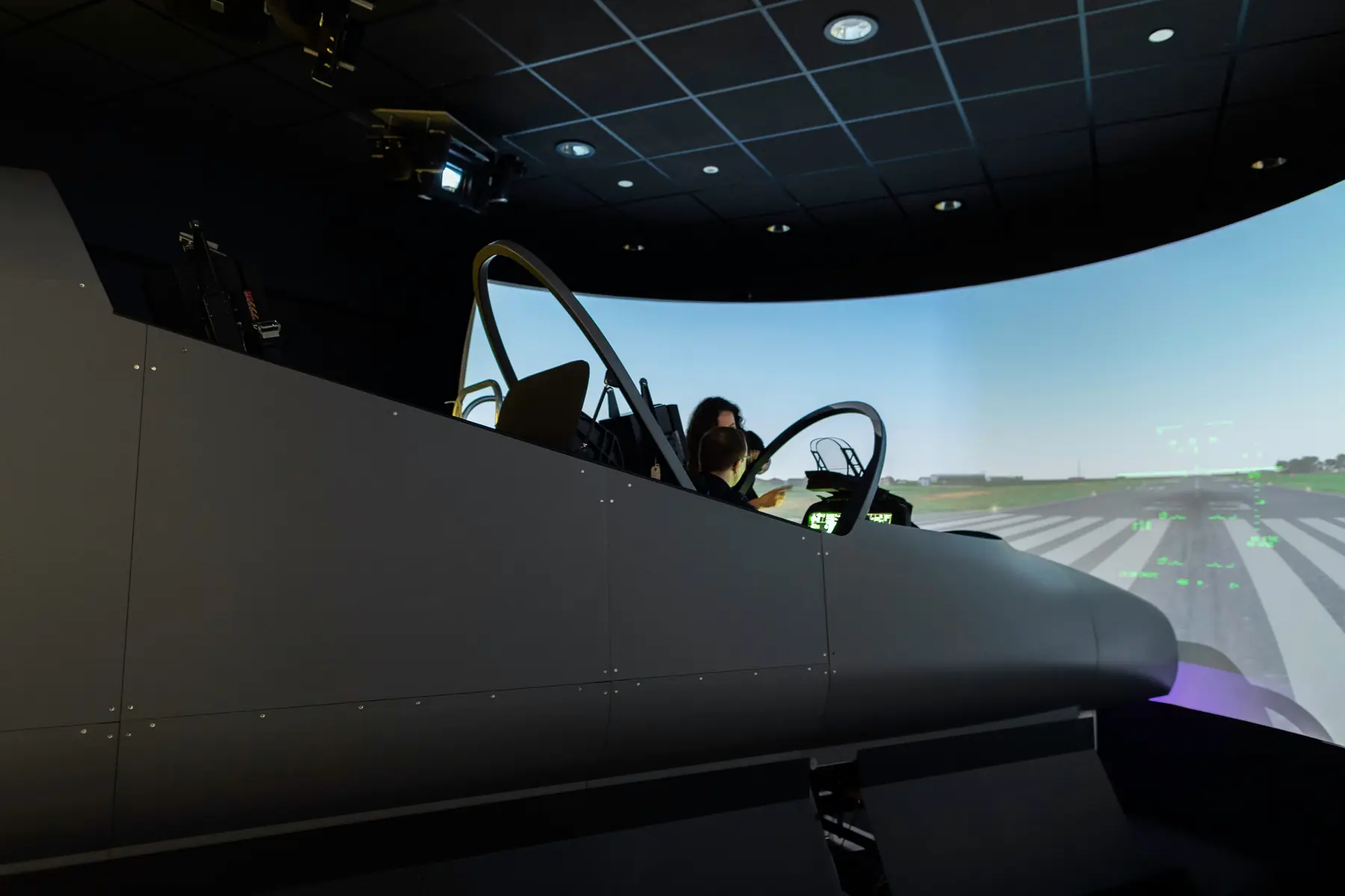

A flight simulator cockpit in front of a panoramic screen showing a runway — a typical multi-sensor research setup

Separate programs: each device starts at a different moment and keeps its own time — the same situation (yellow line) falls at different points in each recording.

00:02 · What it records

Vision, cognition, environment and physiology — in one recording

Each device answers a different question: what the participant looked at, what was going on in their mind and body, how they moved and what was happening around them. Only together do they show the whole situation.

A participant in front of a screen with signal charts; in the image, a Prophea.X panel with the categories vision, cognition, environment, physiology

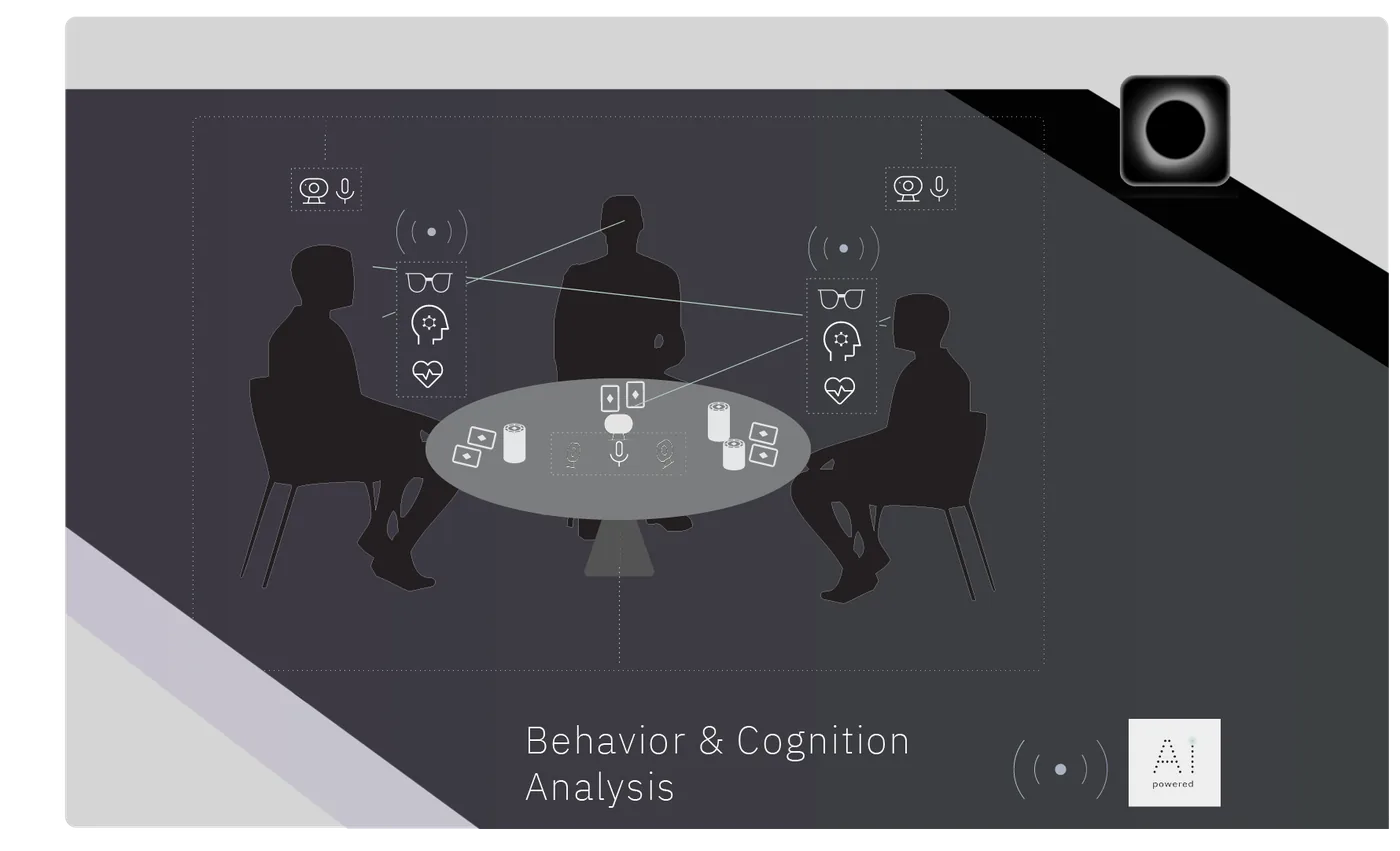

Four layers of one recordingIn the Ergoneers graphic: the participant’s vision, cognitive state, environment and physiology. Prophea.X records them together — at every moment of the recording you see all four at once.
  • Visiongaze
  • Cognitionmental state
  • Environmentsurroundings
  • Physiologicalbody

Gaze

Vision

Where the participant looks, for how long and in what order — from mobile eye trackers.

gaze pointfixations and saccadespupilblinks

Mental state

Cognition

EEG signals for studying cognitive state and mental workload; interpretation requires an appropriate research method.

EEGcognitive statecognitive load

Surroundings

Environment

What was happening around: video and sound, movement, location and machine state.

cameras · audiomotion captureGPSsimulatorvehicle (CAN-Bus)robots (ROS 2)

Physiology

Physiological

Physiological signals for studying arousal and bodily responses; they are not a standalone measure of stress.

ECG · heart rateGSRrespirationstress level
00:03 · How it works

From recording to report in two applications

Prophea Data Engine records and displays data live. Prophea Analyzer opens the same project for analysis and reporting — all in one workflow, with no moving files between programs.

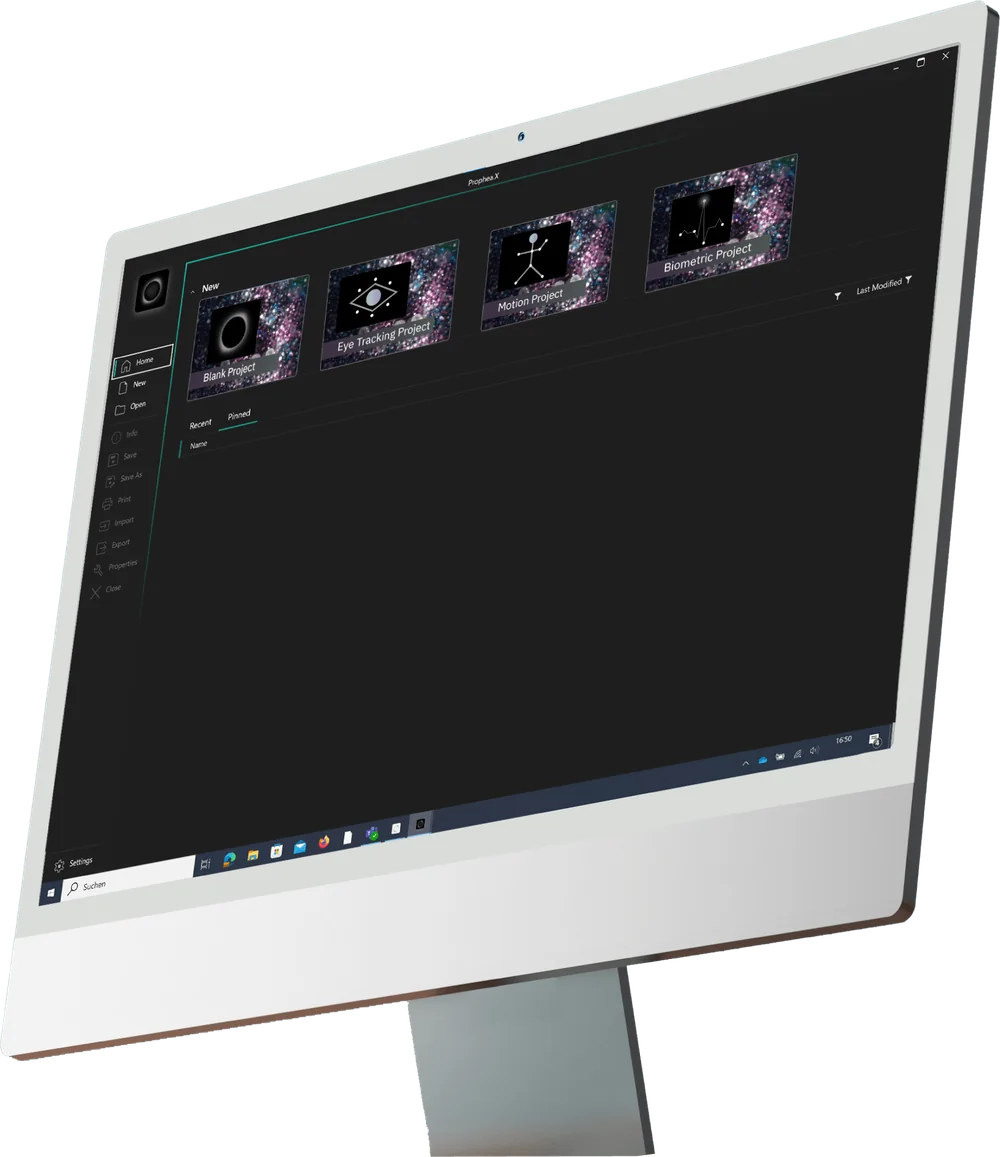

A monitor with the Prophea Data Engine start screen — a list of projects: eye tracking, motion recording, multimodal project
Prophea Data Engine

Project, tasks, sensors and participant groups

Before you hit “start”, you describe the study: which tasks the participant will perform, which devices you collect data from and which groups the participants belong to.

  • Task definitions and sensor definitions in the project
  • Grouping participants into categories (e.g. experienced and novices)
  • Custom window layout, work on multiple monitors
  • Data Engine works on its own or together with the analysis modules
Local and offline — data never leaves your network A suitably configured laptop enables field recordings A single project file opens on any computer with Analyzer
00:04 · Lab

From a laptop in the field to a whole-lab network

The same application handles two pairs of glasses on a tennis court and a room with a simulator, cameras and several workstations. Only the way they are connected changes.

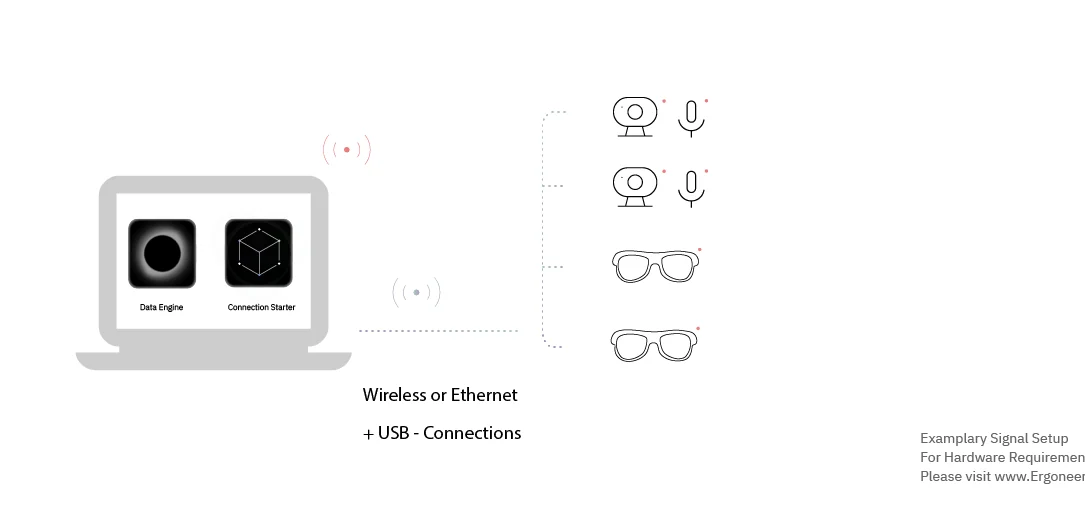

Ergoneers diagram: a laptop with Prophea Data Engine and Connection Starter connected wirelessly, via Ethernet or USB to two cameras with microphones and two pairs of eye tracking glasses

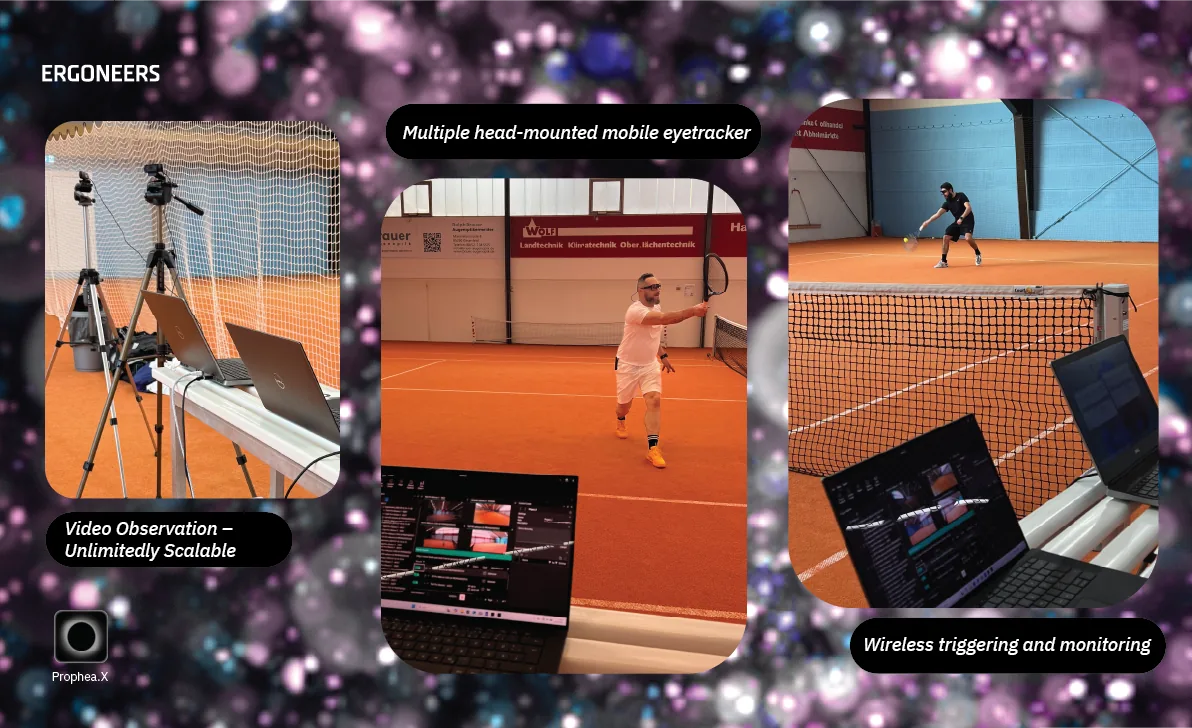

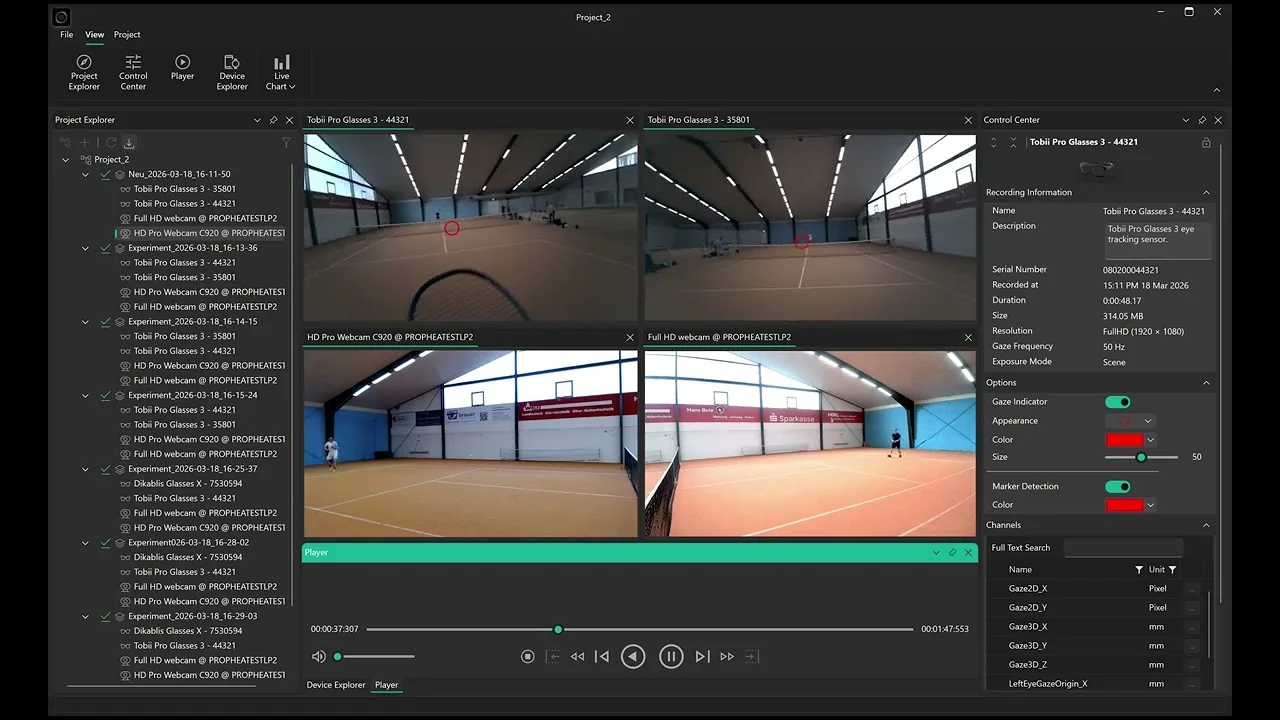

A study on a tennis court: cameras on tripods, two players wearing eye tracking glasses and a laptop showing a recording preview
An example from the court: two cameras, two pairs of glasses, one laptop with wireless triggering.

Everything on one computer

You connect glasses, cameras and microphones to one laptop — wirelessly, via Ethernet or USB. This is what a study in a store, on a sports field or in a car looks like.

  1. Prophea Connection Starter

    connects the input streams from each computer.

  2. Prophea Data Engine

    triggers recordings globally and monitors them live.

  3. Prophea Analyzer

    opens the resulting recording file on any computer — for analysis and reporting.

Typical labs

Three setups Ergoneers customers start with

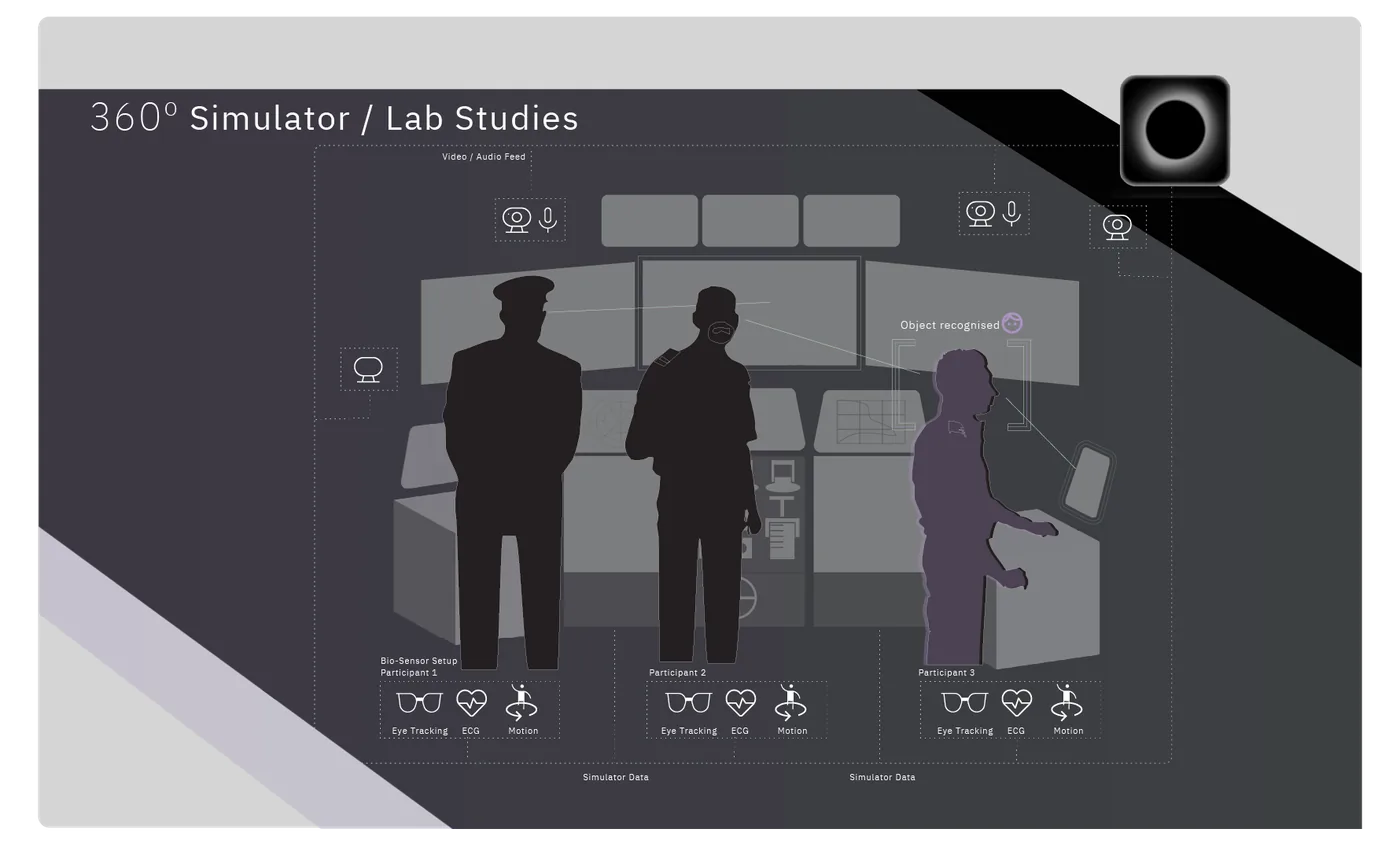

Ergoneers graphic: a 360° simulator lab — three operators in front of screens, each with eye tracking glasses, a camera, a microphone and physiological sensors

Purpose

  • operator training and assessment, recruitment support
  • reducing human error and stress
  • improving workstations, processes and interfaces

What you record

multiple eye trackerscamerasaudioGSR · respirationsimulator data

Where

Flight, ship and train simulators, control rooms and dispatch centers — real and simulated.

00:05 · Modules and packages

You expand the lab without changing the software

Prophea.X is an ecosystem of modules on a shared core. You buy what today’s project needs and add further sensors and analyses to the same environment.

Propheadata engine

Synchronous recording of any sensors, live preview, global triggering and raw data export. Can work on its own.

recording · synchronization

Propheaeye

Analysis of studies with mobile eye trackers: areas of interest, more than 30 metrics, heat maps, gaze paths and reports.

eye tracking analysis

Propheaautorecog

An AI module that recognizes objects and patterns in video. It defines areas of interest without markers and without manual frame-by-frame coding.

object recognition · AI

Propheaanalyzer

A shared analysis environment for all modules — one participant or a whole group, teamwork on one license.

analysis · reporting · team

The manufacturer is developing further modules, including video analysis and behavior coding, motion, audio and AR/MR/VR. We confirm the availability of a specific module in our quote.

Prophea Data Engine packages

How many data streams do you record at once?

Lite — included with every module

Three inputs for synchronous recording: the sensor specific to the module (e.g. a mobile eye tracker), one USB or network camera and one microphone.

TCP/IPLSLUDPCAN-BusROS 2API / SDK

You choose the master frequency and the synchronization mechanism yourself — Data Engine accepts data regardless of its format and frequency. Via Lab Streaming Layer (LSL), the manufacturer states access to more than 120 sensors and devices.

00:06 · Prophea eye

Eye tracking analysis without hours of manual coding

Eye tracking glasses record video from the participant’s perspective and the point they are looking at at any given moment. Prophea eye turns this recording into numbers: how long, how often and in what order the participant looked at selected areas — a sign, a cockpit instrument, a screen, the face of the person they are talking to.

A woman wearing eye tracking glasses at a metro station; next to her, her field of view with a gaze path on a “Way out” direction sign
Gaze path
Circles are fixations — the larger the circle, the longer the gaze stayed. Lines are saccades, the fast jumps of the eyes between points.

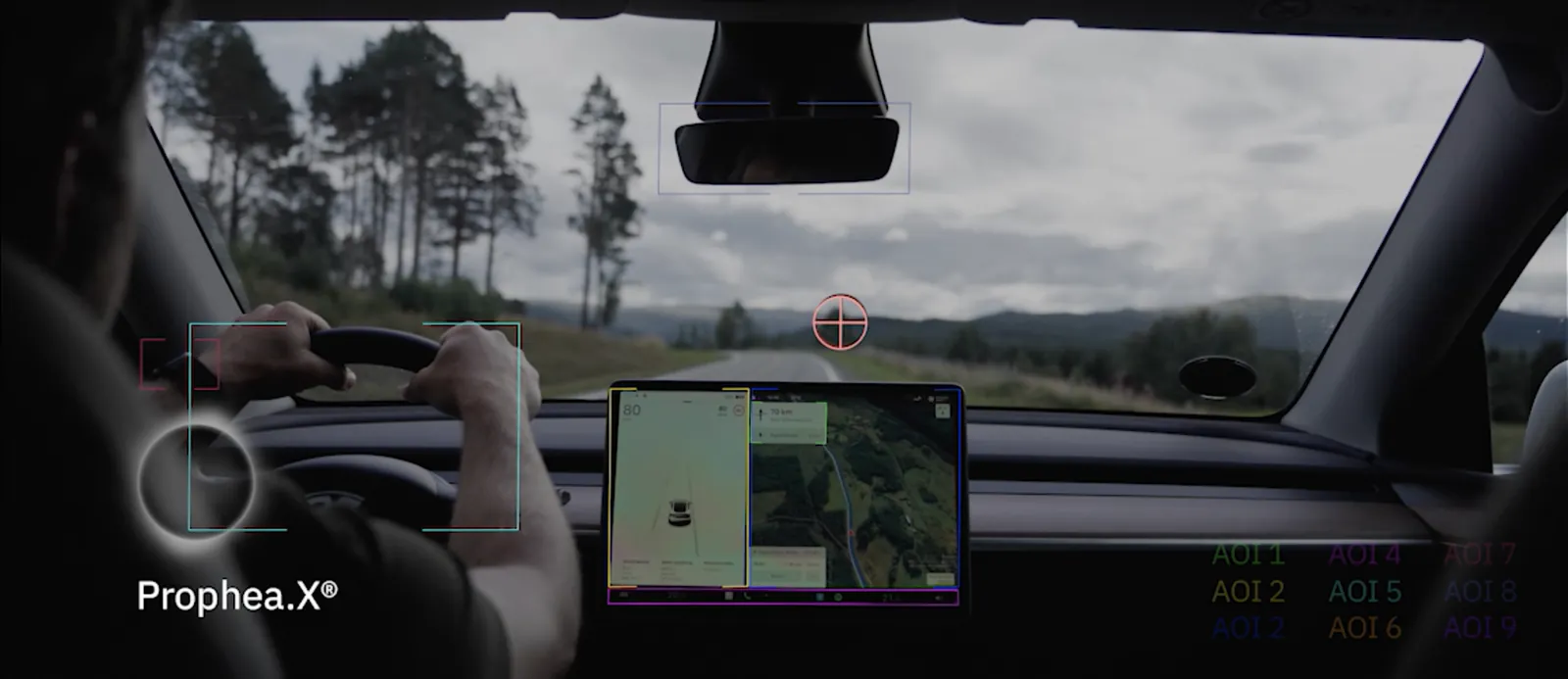

View from the driver’s perspective in a car: areas of interest on the steering wheel, mirror and navigation screen, and a gaze point crosshair

Areas of interest for the whole project

An area (AOI) defined once is recognized in the recordings of all or selected participants, even during fast head movements. You calculate metrics for static and moving AOIs.

A city intersection seen from a pedestrian’s perspective: automatically recognized traffic lights, lanes and cars with labels

AI object recognition

The Prophea autorecog module detects defined objects on its own — a traffic light, a lane, a car — and counts the glances at them. No markers to attach and no manual coding.

Gaze in 3D

Gaze referenced to the field of view regardless of head movement.

Eyes and eyelids

Detection of blinks and eye closure, eyelid opening, pupil diameter.

Transparent calculations

Insight into how each metric is calculated and full control over its parameters.

Visualizations

Static heat maps and dynamic ones on video, gaze paths, mapping gaze onto an image.

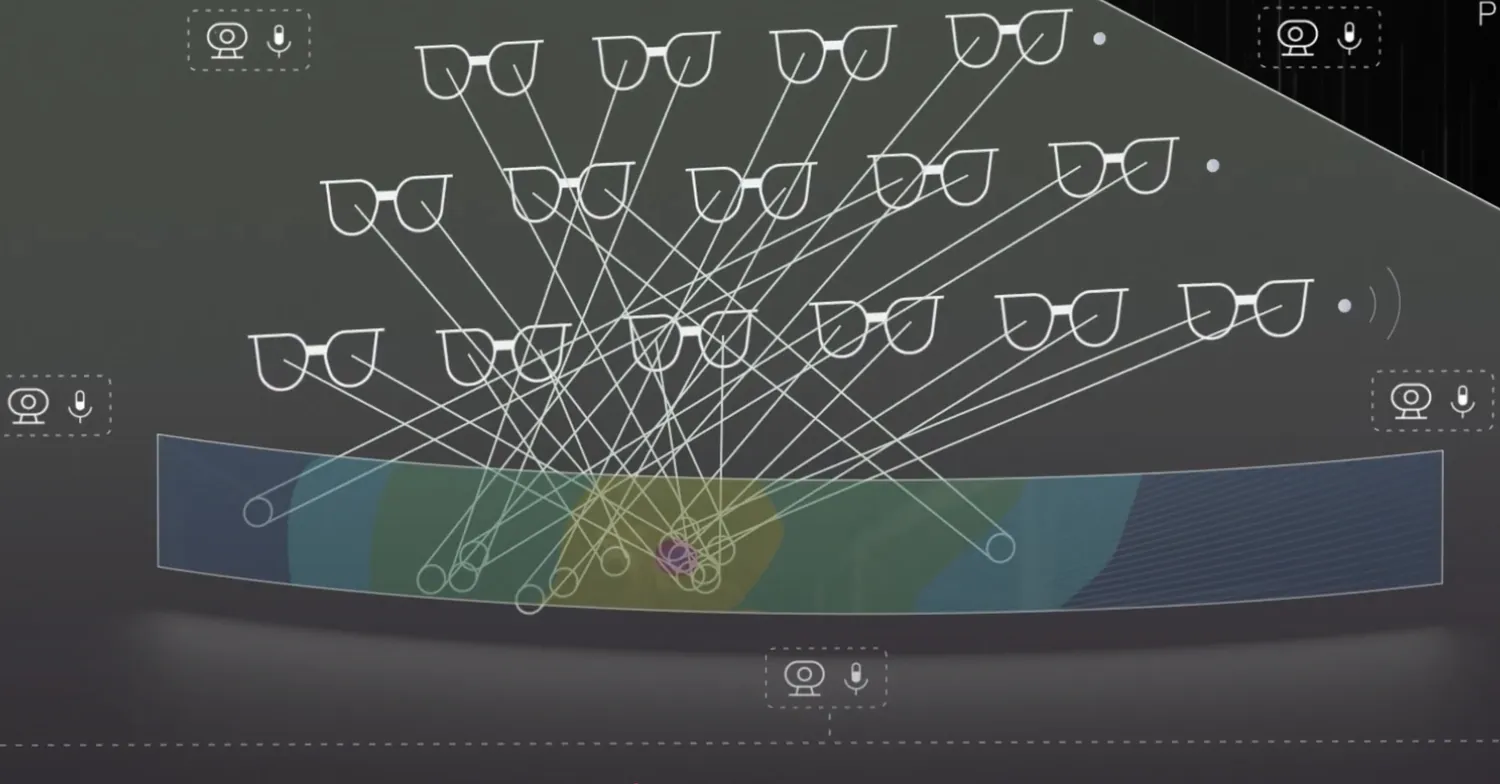

Ergoneers graphic: many pairs of eye tracking glasses directed at a shared screen, with a heat map of collective attention; cameras and microphones around the room
Many participants at once

The whole group’s attention on one timeline

Prophea eye synchronizes any number of simultaneously recording glasses — currently Dikablis Glasses X and Tobii Pro Glasses 3. Shared areas of interest work for all participants, reducing repetitive work in group analysis. Analysis time depends on the recordings and the scope of the study.

This is how you study what cannot be recorded individually: a team in a control room, a crew on the bridge, a team on the field, students in a classroom.

4eye trackers recorded and analyzed on one standard laptop — the manufacturer’s example

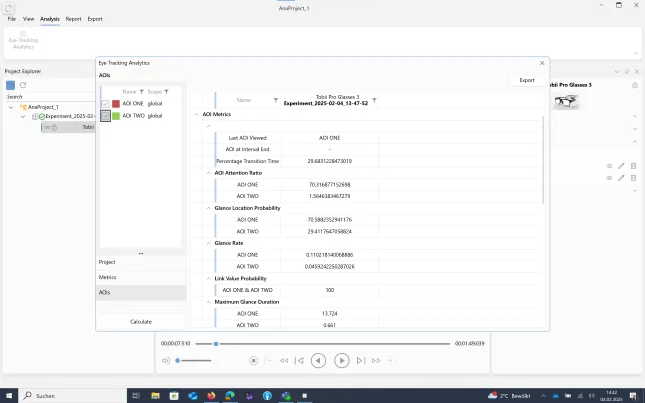

32 eye tracking metrics — each with a definition

Metrics for areas of interest calculated according to ISO 15007. Click a metric to see what it means.

Number of Glances Number of glances

The number of glances at a selected area of interest (AOI) within a given time interval.

00:07 · Eye tracking glasses

Dikablis Glasses X or Tobii Pro Glasses 3

Prophea eye works with two glasses models, both connected to Data Engine without additional configuration. You can combine them in one study.

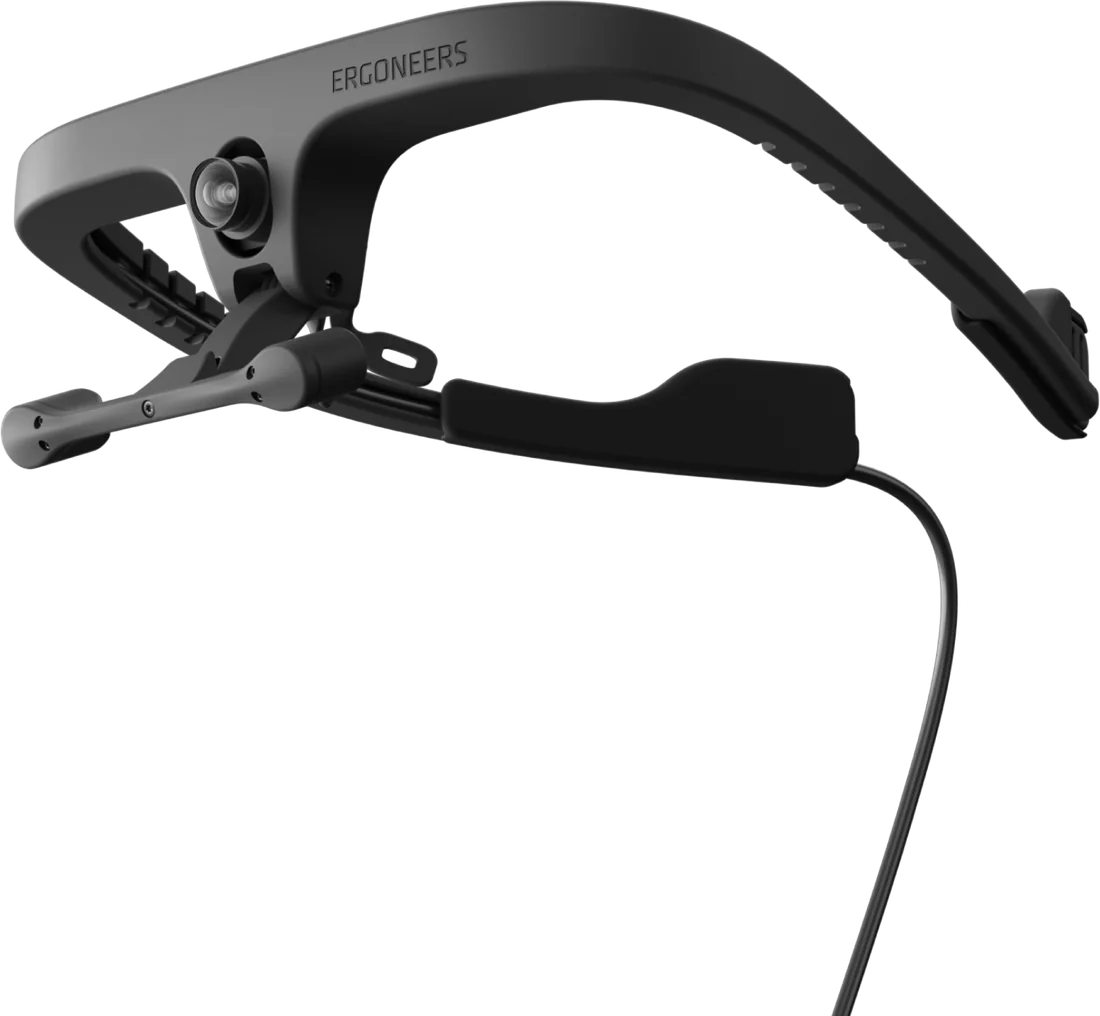

Ergoneers Dikablis Glasses X eye tracking glasses: a frame with a scene camera above the nose, temples with eye cameras and ear pieces
Ergoneers

Dikablis Glasses X

Glasses designed for movement and difficult lighting: a cockpit, a sports field, a production floor, a control room.

  1. 1080p scene camera with global shutter and HDR — smooth video from the participant’s perspective at up to 120 Hz.
  2. Infrared eye cameras with global shutter, on adjustable arms; a triangular camera layout with no lenses between the eye and the scene — no reflections, even with prescription glasses.
  3. From 180 g, frame above the ear line, clips that spread the pressure; a headband for fast movements included.

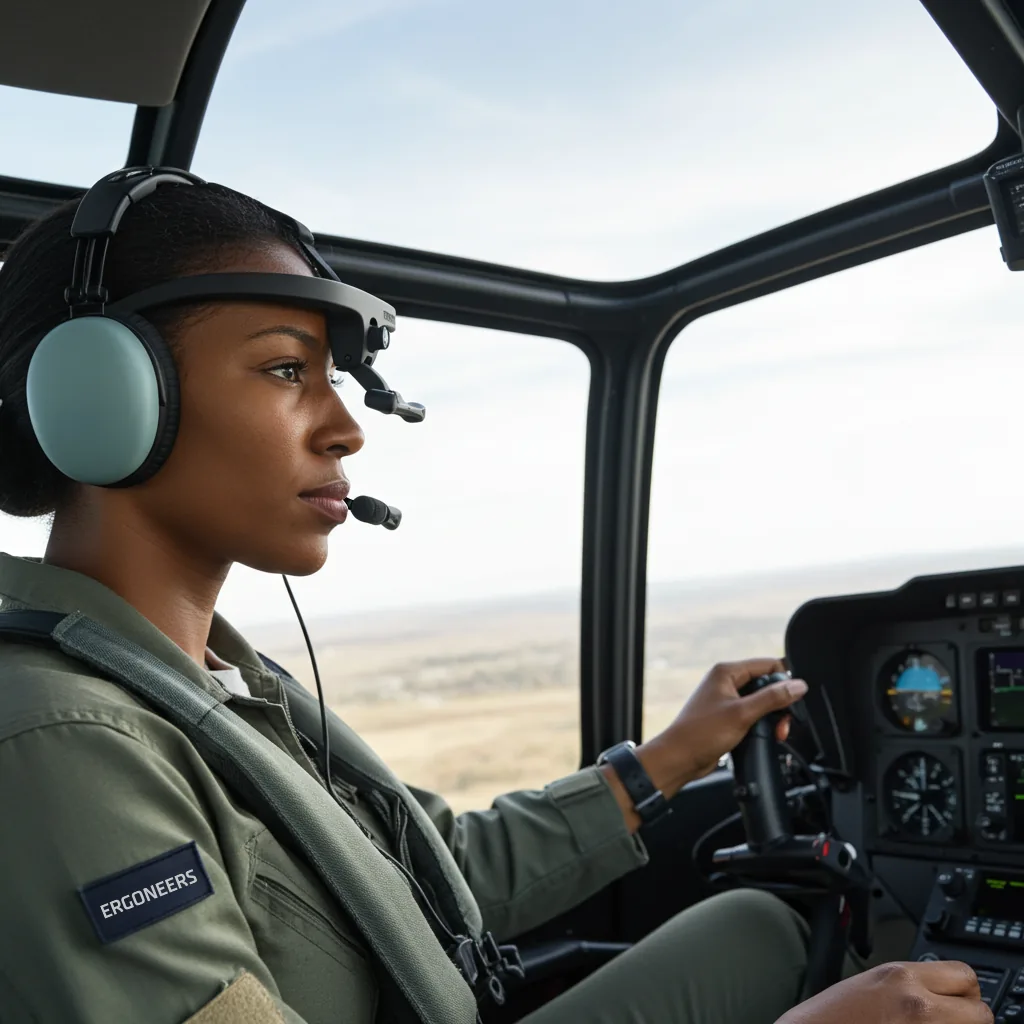

A helicopter pilot wearing Dikablis Glasses X in the cockpit, in bright daylight
Cockpit, bright lightEye tracking with light from the front and the side

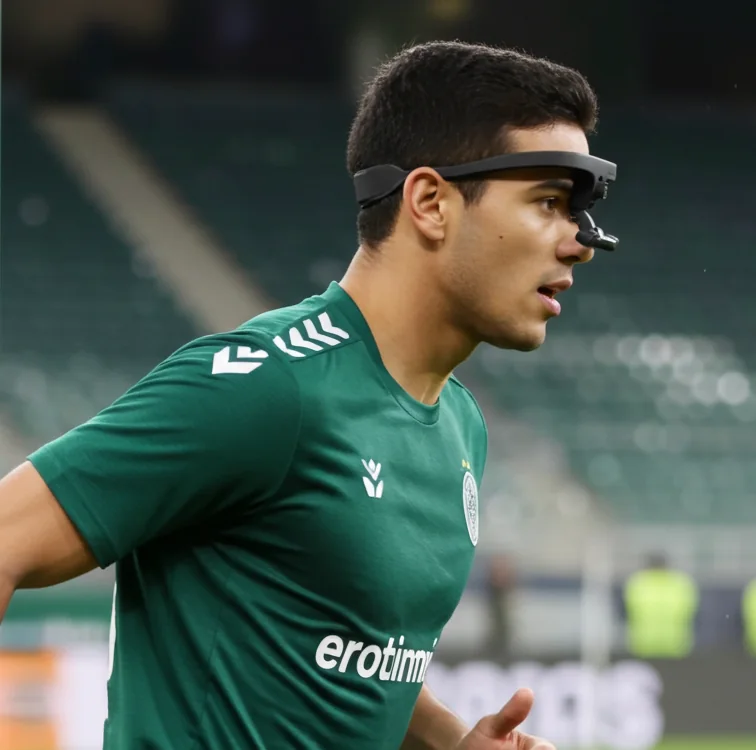

A soccer player in a stadium wearing Dikablis Glasses X
SportsA lightweight frame and a headband for fast head movements

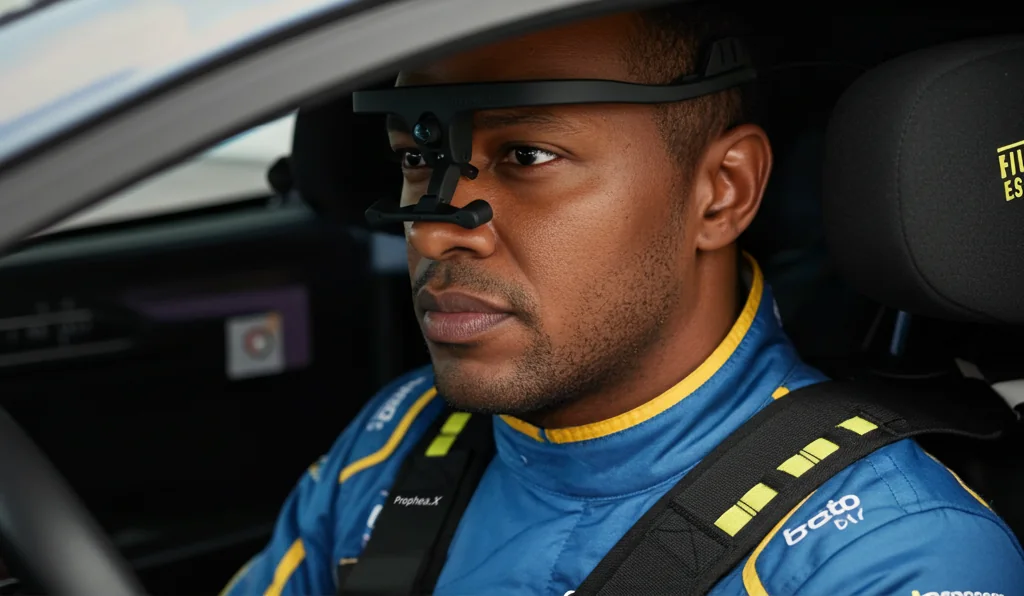

A racing driver in a race suit wearing Dikablis Glasses X behind the wheel
High-speed drivingGlobal shutter with no motion blur

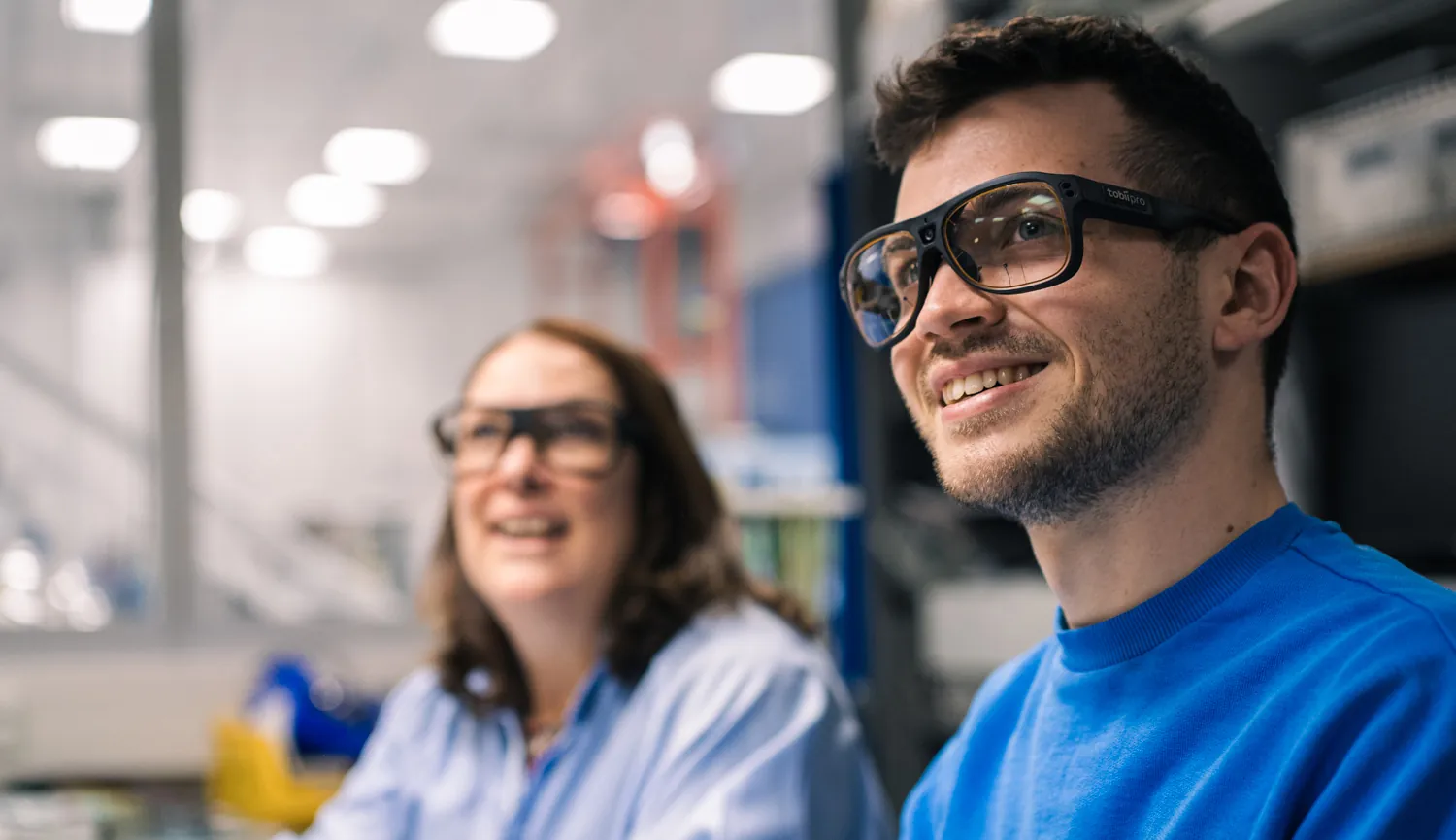

Two researchers wearing Tobii Pro Glasses 3 eye tracking glasses in a lab
Tobii

Tobii Pro Glasses 3

Tobii glasses for research in natural settings. In Prophea.X: recording multiple pairs at once, live gaze preview and analysis in Prophea eye.

  • We sell and implement them as an authorized Tobii partner
  • The same project can combine Glasses 3 and Dikablis
Tobii Pro Glasses 3

Live preview and validation of pupil detection on the eye image are available with Dikablis Glasses X.

00:08 · Applications

Where Prophea.X makes the biggest difference

Wherever behavior depends on the situation, the machine and other people — and wherever you need to record several people or several systems at the same time.

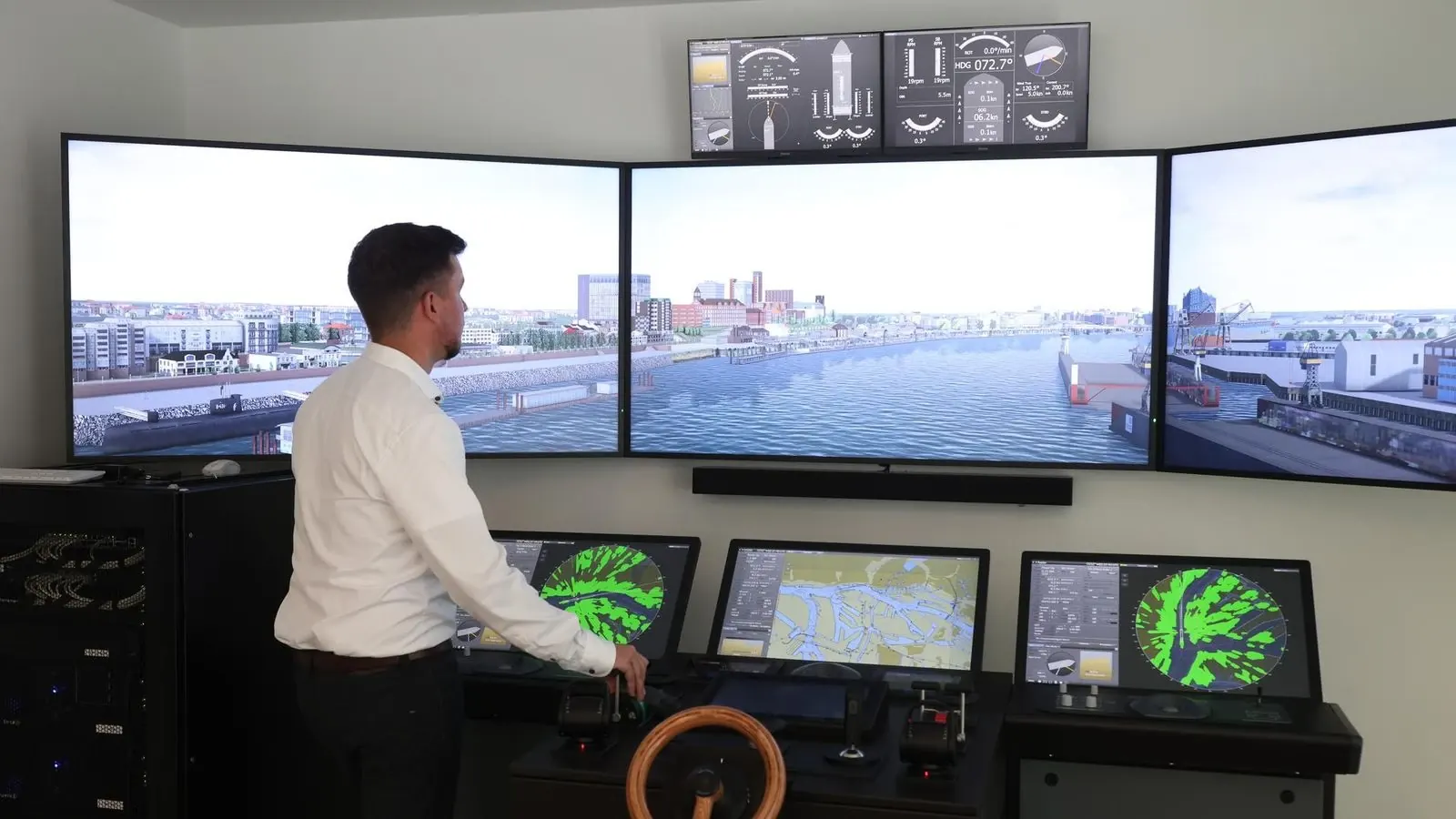

A ship’s bridge simulator: an officer at a console in front of panoramic screens showing a harbor

Flight, ship and vehicle simulators

Simulator data goes onto the same timeline as gaze and physiology — you set markers and events according to the scenario state, in real time.

multiple camerasaudiomultiple eye trackersTCP/IP · CAN · ROS
A driver’s hands on the steering wheel of a car while driving

Drivers in traffic

Glances at the mirrors, cockpit and road together with vehicle data.

CAN-BusGPScockpit AOIs

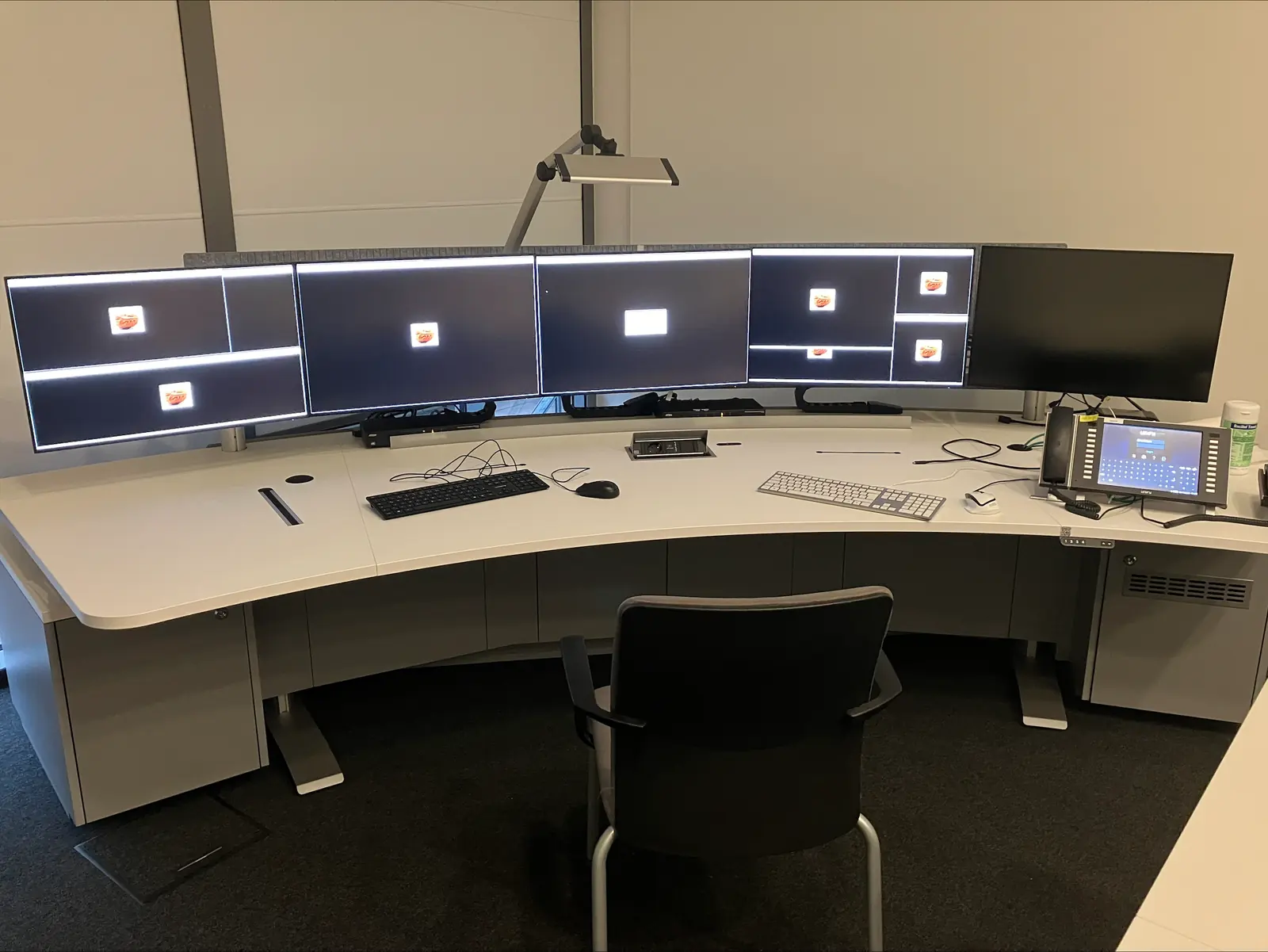

A control room workstation: an operator desk with a row of monitors

Control rooms and dispatch centers

Traffic control, power grids — a whole team of operators recorded at once.

GSR · respirationtraining
A soccer team on a field at night under a single floodlight

Sports and performance

The whole team, global events — e.g. a whistle — on all devices.

many athleteswireless
A ballet dancer in an arabesque against a wall

Biomechanics and movement

Body movement from a motion capture system synchronized with video and gaze.

motion capturevideoeye tracking
A teacher with a group of young children in a room with books

Psychology and education

Group interaction, classroom situations, teaching methods.

interactionEEG · GSR
Five people at a shared table packing clothes into boxes

Work and ergonomics

Workstations and production lines: workload, attention and collaboration in real work.

workstationteamworkload
A shopper in a store reaches for a product on a shelf while talking on the phone

Consumer behavior and UX

Research in a real store or on the street instead of a lab — with the same set of metrics as in a lab study.

store shelfinterfacesnatural setting
00:09 · Videos

See Prophea.X in action

Official Ergoneers videos. The YouTube player loads only after you click.

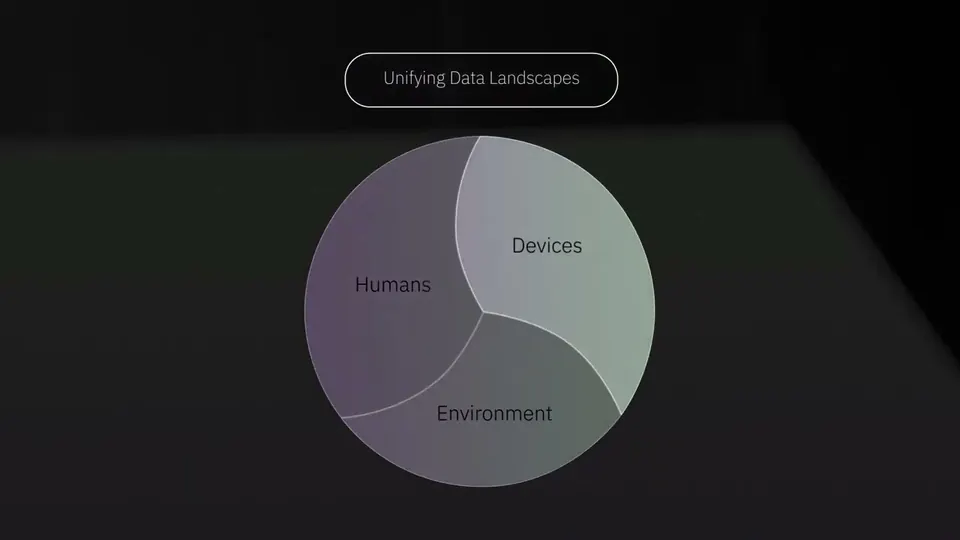

Introduction · YouTubeThis is Prophea.XWhat the Prophea.X ecosystem is and what research it was built for — from eye tracking to cognitive state.
Data Engine · YouTubeProphea Data Engine in a nutshellHow Data Engine combines data on people, devices and the environment. Eye tracking · YouTubeEye tracking of multiple people at onceFrom live preview to a report in Prophea eye. Vehicle · YouTubeEye tracking in a real carAI-assisted analysis of driver gaze. Sports · YouTubeSports and performance analysisTwo cameras and two pairs of Tobii Pro Glasses 3 synchronized in real time.

More videos: the Prophea.X YouTube channel.

00:10 · Why Interlab

A platform for your laboratory — and a team that implements it with you

License

Licensing matched to your project

We confirm the available license, update coverage and continued-use terms in an individual quotation.

Prophea.X with InterlabProject-specific license terms

we confirm modules, updates and fees in the quotation

Subscription platformAnnual renewal fee

the license must be renewed to keep using the software

Your data stays with you

100% local and offline processing, behind your institution’s firewall — no cloud. Important in research with personal data and in confidential projects.

Open to hardware

Tobii and Ergoneers glasses, USB and network cameras, and via LSL, TCP/IP, CAN-Bus and ROS 2 — the devices you already have in your lab.

Multimodal lab

We combine Tobii eye tracking with BIOPAC systems for physiological signals. Prophea.X and AcqKnowledge 6 support Lab Streaming Layer — we configure the setup for your study together.

Demo before you buy

We will demonstrate Prophea.X on your research scenario. The manufacturer also provides a demo software license.

Methodological advice

We help you match sensors, the number of inputs and the package to your research question — so you do not overpay for streams you will not use.

Simulator integration

We arrange consultations with Ergoneers engineers; the manufacturer usually prepares an outline of the technical solution within 7 working days.

Implementation and training, local support

Installation, the first recording and analysis with your team, followed by local support in Poland.

Grants and tenders

We prepare technical descriptions and summaries for grant applications and tender procedures.

20+ yearsof Ergoneers experience in scientific eye tracking (Dikablis glasses)
600+scientific publications using Ergoneers solutions
since 2005Ergoneers has been integrating simulators and vehicle data with human data
NASAAirbusBMWDaimlerSiemensBoschVolkswagenAudiContinentalFraunhoferTU MünchenRWTH AachenGeorgia TechUniversity of Iowa

Among the users of Ergoneers solutions — according to the manufacturer.

00:11 · Specifications

Prophea.X in detail

AreaProphea.X

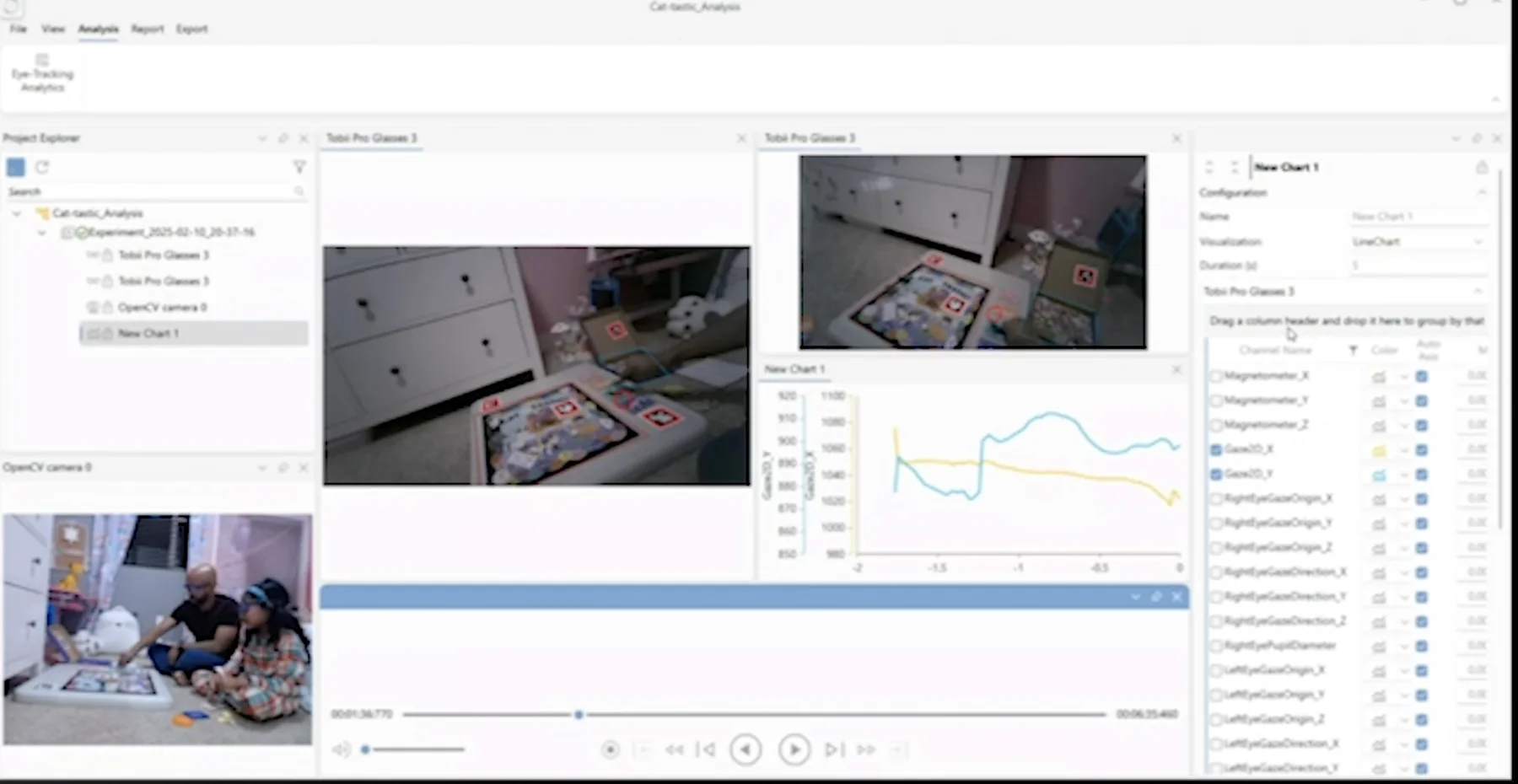

ArchitectureTwo applications: Prophea Data Engine (recording, synchronization, live preview) and Prophea Analyzer (analysis, reports); analysis modules on a shared core
ModulesProphea data engine, Prophea eye, Prophea autorecog; further modules in development — we confirm availability in our quote
Data Engine packagesLite — 3 inputs (included with every module) · Standard — 7 inputs · Extended — up to 20 inputs · Unlimited — number of streams licensed individually, no limit
InterfacesTCP/IP, LSL (Lab Streaming Layer), UDP, CAN-Bus, ROS 2, device APIs/SDKs
Integrated devicesDikablis Glasses X, Tobii Pro Glasses 3, USB cameras and webcams, IP cameras
SynchronizationChoice of master frequency and synchronization mechanism; global triggering; multiple participants and multiple modalities in one recording
Live previewVideo, recordings with the gaze point, charts of numerical signals, pupil detection (Dikablis Glasses X); comments and task markers in real time, also from external applications
Eye tracking analysis32 metrics (17 for AOIs according to ISO 15007, 4 for fixations, 11 for saccades); static and moving AOIs, project AOIs for all participants; heat maps, gaze paths; mapping gaze from video onto an image (manual and marker-based); blinks, eyelid opening, pupil diameter
Export and reportsRaw data in standard formats (including CSV), video with gaze, export by task and by participant; reports with export to PDF and PowerPoint
Data and securityLocal and offline processing, work behind a firewall, no cloud
TeamworkMultiple users on one license, central file distribution, access rights
HardwareA suitably configured laptop (the manufacturer shows 4 eye trackers recorded and analyzed on one laptop); for large labs — work on a local network
LicenseLicense and update terms confirmed in the quotation

Manufacturer documents: Prophea Data Engine — PDF · Prophea eye — PDF · Prophea.X brochure — PDF.

00:12 · FAQ

Frequently asked questions

Do I have to buy Ergoneers glasses?

No. Prophea eye works with Dikablis Glasses X and with Tobii Pro Glasses 3. If you already have Glasses 3, you can start with the software alone. Other devices — cameras, physiological sensors, a simulator — connect to Data Engine via LSL, TCP/IP, CAN-Bus, ROS 2 or an API.

Does the data go to the cloud?

No. Prophea.X processes data 100% locally and can work offline, behind your institution’s firewall. Recordings and results stay on your computers.

How many participants can I record at the same time?

It depends on the Data Engine package: Lite has 3 inputs, Standard 7, Extended up to 20, and Unlimited is licensed individually with no limit on streams. The manufacturer shows four eye trackers recorded and analyzed on one standard laptop; larger setups work on a local network.

Can I change how metrics are calculated?

Yes. Prophea eye shows the calculation method of each metric and lets you adjust its parameters. You can also export all raw data — gaze coordinates and the eye and scene camera video — for your own analysis.

Does Prophea.X work with BIOPAC?

Both platforms support Lab Streaming Layer (LSL), a standard for streaming data in research labs. We choose the connection configuration for the specific setup — let’s talk about your study.

How do I connect a simulator or a vehicle?

Data Engine connects to simulators and vehicles via TCP/IP, CAN-Bus, ROS 2 or the simulator manufacturer’s SDK; events and markers can be set according to the simulation state. For non-standard setups, we arrange a consultation with Ergoneers engineers — the manufacturer usually prepares an outline of the solution within 7 working days.

Can I test the software before buying?

Yes. We will arrange a demo on your research scenario; the manufacturer also provides a demo software license.

Download materials click to expand

Interested in this product?

Contact us for a detailed quote and technical advice.

Ask for price

Related products

Eye tracker Tobii Pro Glasses 3

Eye Tracker Tobii Pro Glasses 3

Eye TrackingMobile (Glasses)Research & Scientific Instruments

See details
Shimmer3 GSR+

Shimmer3 GSR+

AccessoriesEye TrackingResearch & Scientific Instruments

See details
Motion Capture - Urządzenie do rejestracji ruchu

Motion Capture – Motion recording device

AccessoriesEye TrackingResearch & Scientific Instruments

See details
System mocowania urządzeń mobilnych

Mobile device mounting system

AccessoriesEye TrackingResearch & Scientific Instruments

See details

Ask about this product

Product: Ergoneers Prophea.X
