AFL FOCIS Lightning for MPO Connectors

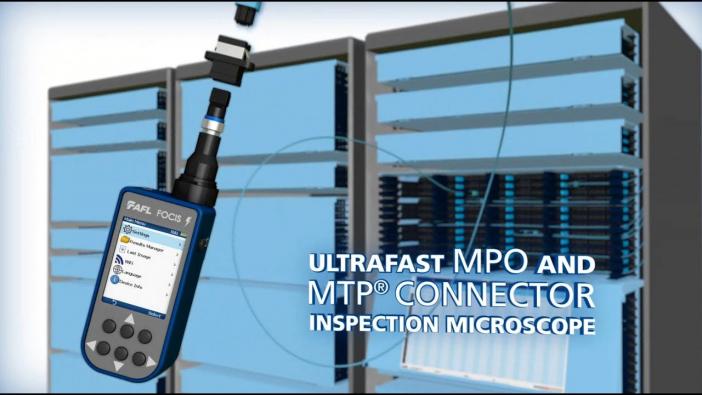

FOCIS Lightning is a self-contained inspection probe with a built-in display, designed for automatic inspection of multifiber connectors. It is intended primarily for MPO and MTP® connectors or adapters, including multi-row variants.

Ultra-fast and automatic inspection of MPO/MTP connectors
Automatic image focusing and centering
WiFi, Bluetooth and USB connectivity
Self-contained, wireless, compact
Replaceable NiMH battery (over 6 h of operation)

FOCIS Lightning is a self-contained inspection probe with a built-in display, designed for the inspection of multifiber connectors. It is intended for MPO and MTP® connectors or adapters, including multi-row variants.

Features:

Ultra-fast and automatic inspection of connectors, including MPO/MTP connectors
Automatic focusing and centering for instant and precise inspection
WiFi, Bluetooth and USB connectivity
Automatic analysis to IEC, IPC, AT&T as well as user-defined standards
Self-contained, wireless, compact and operated with a single hand
Adapters for MPO-12/MPO-16 connectors in PC and APC versions
Available with adapters tailored to the most popular single fiber connectors
Adapters for single-fiber LC connectors and bulkhead adapters (UPC &APC)
Replaceable NiMH battery lasting over 6 hours of operation

Applications:

Inspection of connectors with exposed and bulkhead ferrules as well as patchcords
Optimal tool for data centers
Inspection of multifiber multi-row MPO/MTP connectors
Ready to work even in the most demanding installation conditions

The FOCIS Lightning probe is designed for the inspection of fiber connectors and adapters, including MPO and MTP® connectors, including multi-row variants. FOCIS Lightning has built-in standards or can operate on user-defined standards to deliver precise analysis of cleanliness in an average time of one second per fiber. FOCIS Lightning stores the analysis results for each fiber, along with its image and grading result. Results can be transferred via a wireless WiFi or Bluetooth connection. The AFL FOCIS app, available for iOS and Android, offers a comprehensive and user-friendly set of features and provides connectivity to the aeRos® cloud.

Pass/fail test performed in a second: With a single button press, FOCIS Lightning automatically focuses and centers the image, performs the analysis and presents the final result based on built-in or user-defined standards.

Wireless operation: Equipped with a battery and a 2.4-inch color TFT LCD display, it is capable of operating as a standalone device.

Adapters for multifiber connectors: A wide range of adapters for both single-row and multi-row connectors allows the testing of all
