ToupTek XFCAMTOP4K – 4K C-mount autofocus camera (HDMI/USB2/Wi-Fi)

Name: ToupTek XFCAMTOP4K – 4K C-mount autofocus camera (HDMI/USB2/Wi-Fi)
Brand: ToupTek
SKU: 17964

ToupTek XFCAMTOP4K is a multi-port 4K autofocus camera (HDMI/USB2.0/Wi-Fi) with a C-mount and an 8 MP Sony sensor. A built-in ARM core displays the control panel directly on an HDMI monitor (USB mouse operation) – computer-free operation; the built-in autofocus sharpens the selected area of the scene.

An autofocus camera/microscope automatically focuses on the selected area of the scene, and combined with depth stacking it delivers a sharp image even at high magnification and on an uneven sample. The built-in XCamView interface lets you operate the camera directly on an HDMI monitor (USB mouse), without a computer; the ToupView/ToupLite software extends operation to a PC.

What is a C-mount autofocus camera with XCamView?

Key features

C-mount, 8 MP Sony sensor (IMX334)

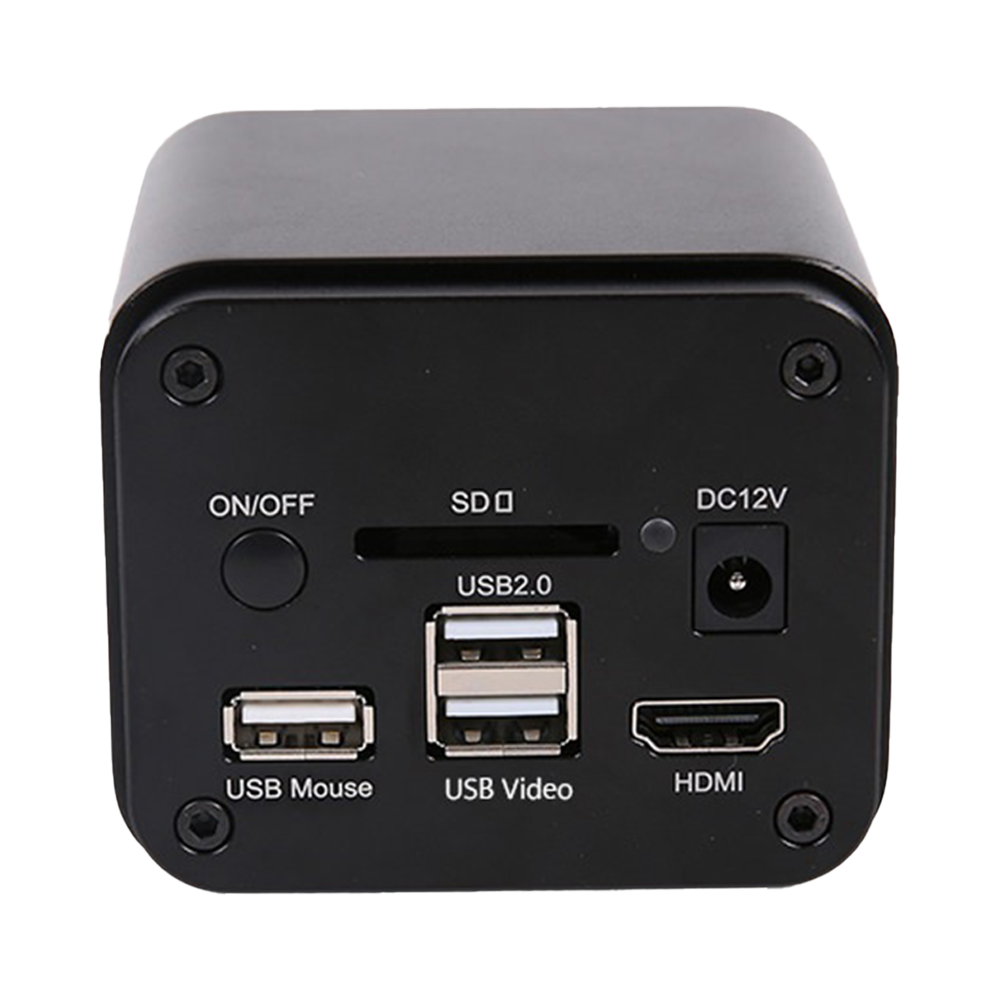

4K HDMI / USB2.0 / Wi-Fi output (4K/1080P adaptive)
Built-in autofocus on the selected area
XCamView on the monitor (USB mouse) – computer-free
SD/USB recording, local preview and playback
ISP (sharpening, 3D NR, ROI WB); ToupView/ToupLite, iOS/Android app

Technical specifications

Type	4K C-mount autofocus camera
Sensor	Sony IMX334, 8 MP (1/1.8″)
Output	HDMI / USB2.0 / Wi-Fi 4K@30
Autofocus	on the selected area
Mount	C
Software	XCamView; ToupView/ToupLite; app

Applications

Stereo microscopy
Field industrial inspection
Teaching and documentation
Live observation

Request a quote and configuration

We match ToupTek autofocus cameras and digital microscopes to your application (sensor, zoom/lens, interface, illumination). Contact Interlab to receive a quote and model selection.
