ToupTek X8FCAM4K – flagship 22 MP autofocus camera, Canon EF mount (10-bit ISP)

Name: ToupTek X8FCAM4K – flagship 22 MP autofocus camera, Canon EF mount (10-bit ISP)
Brand: ToupTek
SKU: 17961

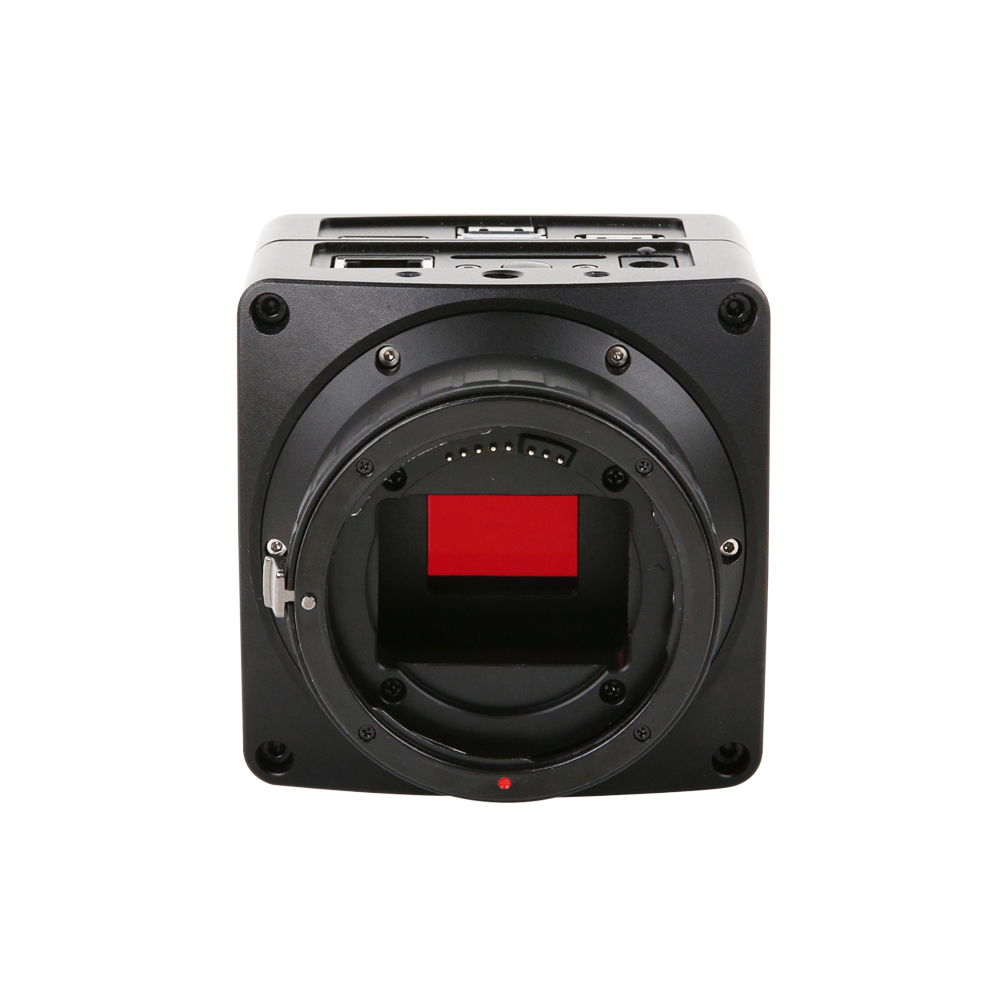

ToupTek X8FCAM4K (22MPA_EFL) is a flagship 22 MP autofocus camera on the ToupTek AI platform, with a large-format Sony IMX571 sensor (1.7″) and a 10-bit ISP. The Canon EF mount provides electronic aperture control, AF/MF and real-time depth stacking; the HDMI2.0/USB3.0/Ethernet/Wi-Fi outputs run in parallel.

An autofocus camera/microscope automatically focuses on the selected area of the scene, and combined with depth stacking it delivers a sharp image even at high magnification and on an uneven sample. The built-in XCamView interface lets you operate the camera directly on an HDMI monitor (USB mouse), without a computer; the ToupView/ToupLite software extends operation to a PC.

What sets the flagship X8FCAM4K (22 MP, 10-bit) apart?

Key features

Large-format Sony IMX571 sensor, 22 MP (1.7″, 3.76 µm)
10-bit ISP – better color reproduction, 3D NR, ROI WB
Canon EF mount (aperture, AF/MF), 18+ lenses
4K HDMI2.0/USB3.0/Ethernet/Wi-Fi output (parallel)
Depth stacking, distortion correction, RAW, voice control
XCamView (auto-edge, measurements), bilingual UI, −10…50 °C range

Technical specifications

Type	flagship 22 MP autofocus camera, EF
Sensor	Sony IMX571, 22 MP (1.7″, 3.76 µm)
ISP	10-bit
Mount	Canon EF (AF/MF, aperture)

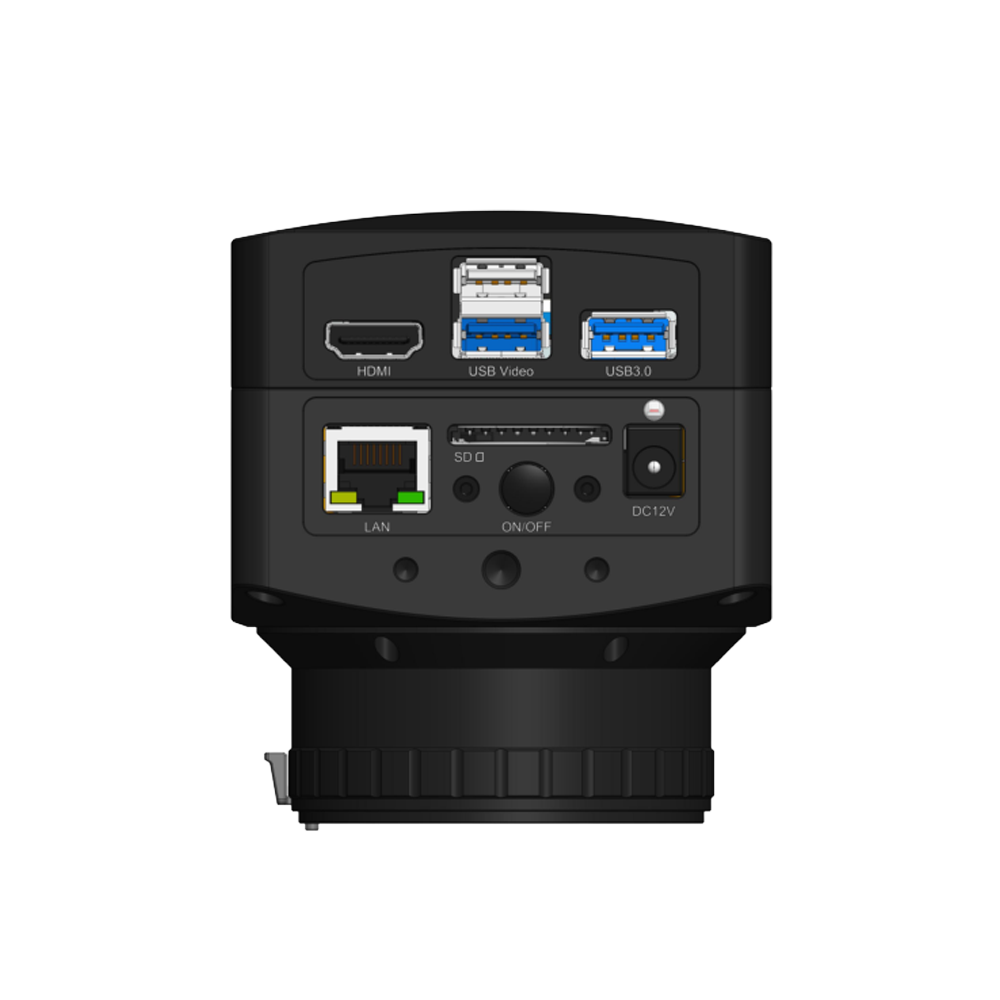

Output	HDMI2.0 / USB3.0 / Ethernet / Wi-Fi
Functions	depth stacking, distortion correction, RAW, voice
Operating range	−10…50 °C

Applications

Medical diagnostics (ophthalmology, dentistry)
Precision UHD industrial inspection
Advanced research
High-resolution documentation

Request a quote and configuration

We match ToupTek autofocus cameras and digital microscopes to your application (sensor, zoom/lens, interface, illumination). Contact Interlab to receive a quote and model selection.
