ToupTek SWIR1302 900–1700 nm – InGaAs 1.3 MP camera (USB3/10GigE/CameraLink)

Name: ToupTek SWIR1302 900–1700 nm – InGaAs 1.3 MP camera (USB3/10GigE/CameraLink)
Brand: ToupTek
SKU: 18019

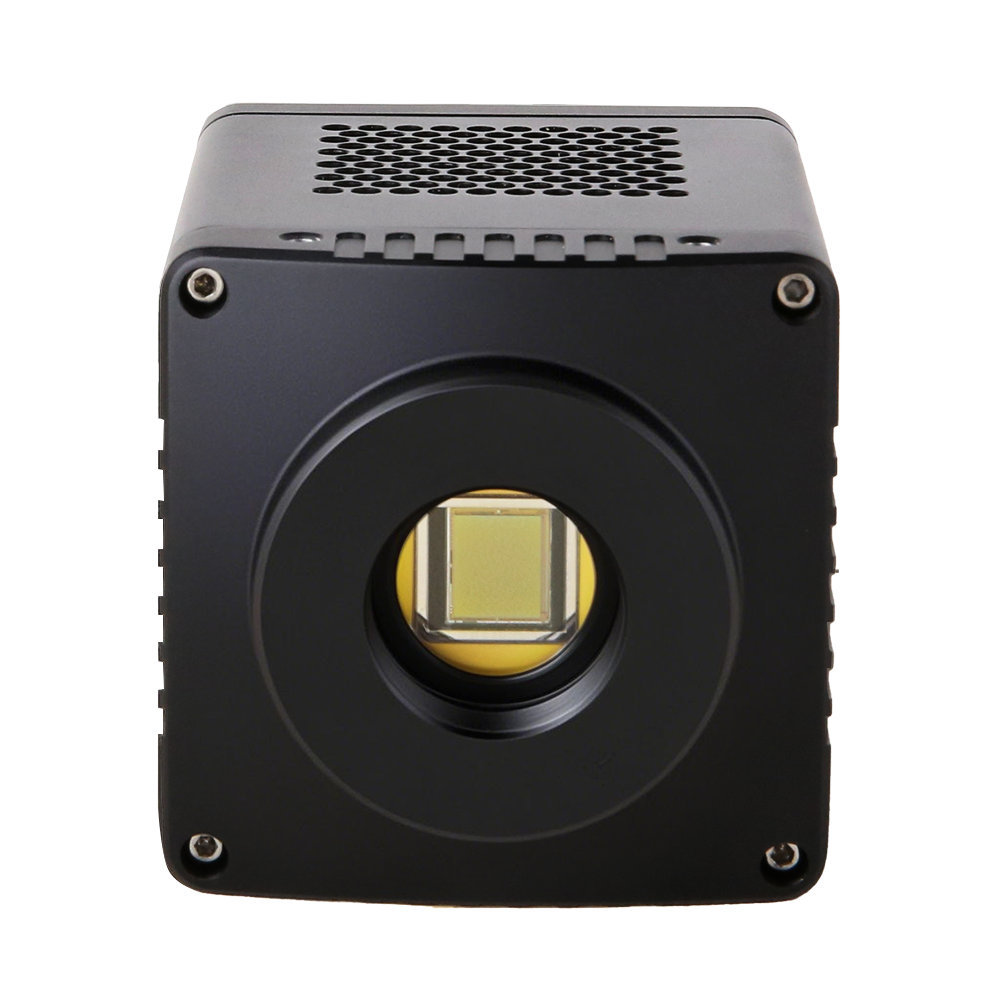

ToupTek SWIR1302 is a short-wave infrared camera with a Chinese-made InGaAs sensor of 1.3 MP resolution (1280×1024) and 15 µm pixel, imaging in the 900–1700 nm range. The large pixel provides high sensitivity while maintaining fast acquisition; cooled versions are available.

What is a SWIR 900–1700 nm (InGaAs) camera?

A SWIR camera captures images in the short-wave infrared band – it lets you “see” what is invisible in visible light, while differing from thermal imaging (LWIR), which relies on heat radiation. This makes SWIR ideal for material analysis, moisture detection, silicon inspection, and imaging through fog, smoke, and dust.

Key features

InGaAs 1.3 MP (1280×1024) sensor, 15 µm pixel
Range 900–1700 nm
USB3 / 10GigE / CameraLink Full / CoaXPress interfaces
Global shutter, 12–14-bit ADC, 4 GB buffer
Precise cooling (cooled versions), external triggering, OEM

Available models

Model	Interface	Frame rate
SWIR1302KMB-U200	USB3	200 fps
SWIR1302KMB-10G	10GigE	200 fps
SWIR1302KMB-CXP	CoaXPress 2.0	100 fps
SWIR1302KMB-CL200	CameraLink Full	200 fps

Technical specification

Sensor	InGaAs (Chinese-made)
Resolution	1.3 MP (1280 × 1024)
Pixel size	15 µm
Spectral range	900–1700 nm
Shutter	global
Bit depth	12–14 bit
Interfaces	USB3 / 10GigE / CameraLink Full / CoaXPress 2.0
Buffer	4 GB
Cooling	cooled versions

Applications

Semiconductors – silicon wafer defect inspection and analysis (silicon see-through)
Material sorting – classification of plastics and waste
Food industry – moisture detection, quality control and grading
Glass – defect detection and see-through inspection of high-temperature glass
Agricultural remote sensing – multispectral imaging from drones (UAV)
Imaging through fog/smoke/dust – monitoring in harsh conditions
Security – detection of counterfeits and hidden features

Request a quote and configuration

We supply ToupTek SWIR cameras in a configuration tailored to the application – choice of interface, cooled or uncooled version, and accessories (SWIR lenses, illumination, cabling). Contact Interlab to receive a quote and model selection for your measurement task.
