ToupTek SWIR2048L3A 900–1700 nm – InGaAs line-scan camera 2048 px (CameraLink Full)

Name: ToupTek SWIR2048L3A 900–1700 nm – InGaAs line-scan camera 2048 px (CameraLink Full)
Brand: ToupTek
SKU: 18017

ToupTek SWIR2048L3A is a line-scan short-wave infrared camera with an InGaAs 2048 px sensor for imaging in the 900–1700 nm band. It combines CameraLink Full transmission, a fast 79K @ 2048×1 line, a 14-bit ADC, a 512 MB buffer and TEC cooling – for high-speed sorting, online inspection and imaging of continuous materials.

What is a line-scan SWIR camera?

A SWIR camera captures an image in the short-wave infrared band – letting you “see” what is invisible in visible light, while also differing from thermal imaging (LWIR), which relies on heat radiation. Thanks to this, SWIR excels at material analysis, moisture detection, silicon inspection, and imaging through fog, smoke and dust.

Key features

Linear InGaAs 2048 px sensor, 900–1700 nm range
Fast 79K @ 2048×1 line
14-bit ADC, 512 MB buffer
Quantum efficiency 70% @ 1550 nm

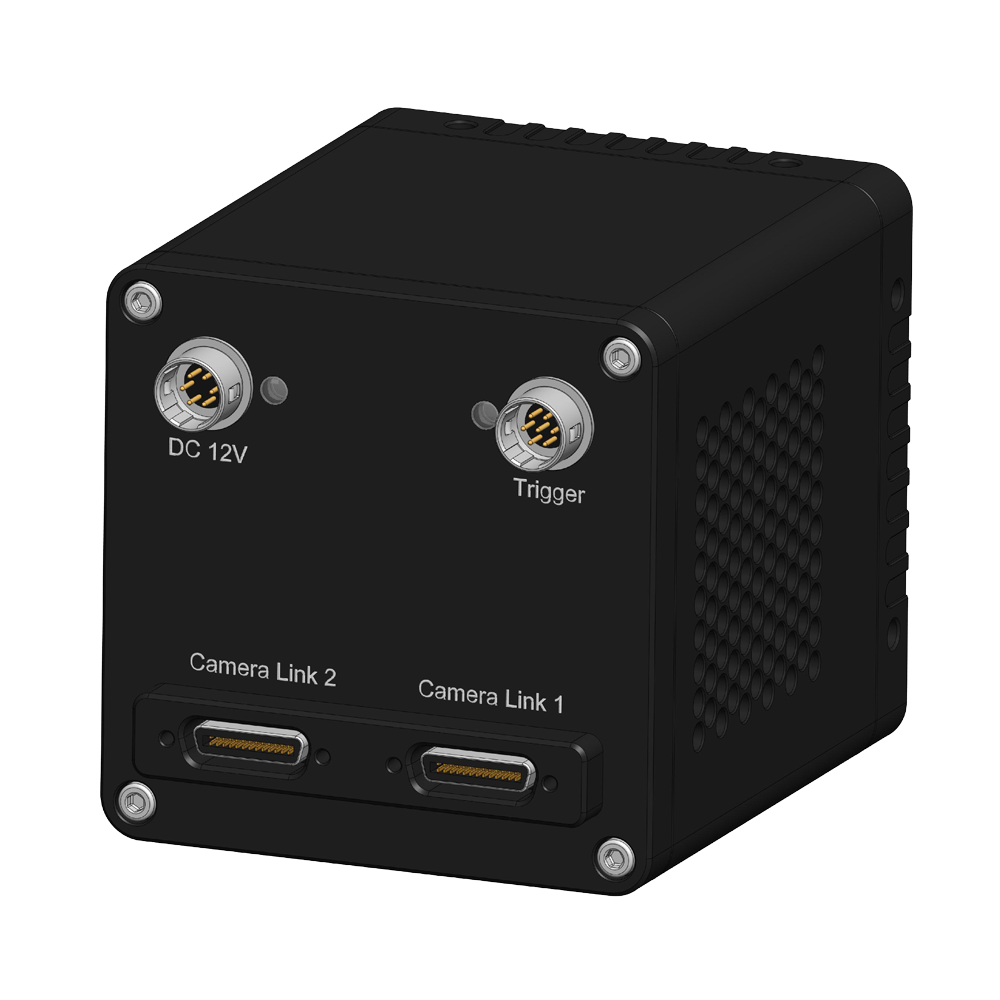

CameraLink Full interface, M42 mount
Cooling up to 40 °C below ambient, SDK and CLView software

Technical specification

Sensor	InGaAs linear 2048 px
Spectral range	900–1700 nm
Line	79K @ 2048 × 1
Quantum efficiency	70% @ 1550 nm
Bit depth	14 bit
Buffer	512 MB
Cooling	TEC up to 40 °C below ambient
Interface	CameraLink Full
Mount	M42

Applications

Line sorting – fast classification of materials on a conveyor
Online inspection – control of continuous webs and surfaces
Spectral sorting – material recognition
Semiconductors – surface inspection

Request a quote and configuration

We supply ToupTek SWIR cameras in a configuration matched to the application – choice of interface, cooled or uncooled version, and accessories (SWIR lenses, illumination, cabling). Contact Interlab to receive a quote and model selection for your measurement task.
