Furukawa FITEL S124X Ribbon Fusion Splicer

Ribbon fusion splicers are specialized devices for joining multi-fiber cables in ribbon format. Instead of splicing one fiber at a time, a ribbon fusion splicer processes an entire ribbon (12 or 16 fibers) simultaneously — which dramatically shortens installation time with a hi

Ribbon fiber fusion splicer › who is the FITEL S124X for?

Data centers — hyperscale cross-connect frames with Rollable Ribbon cables (FEC 6912f and similar)
Backbone and long-haul — installations with very high fiber-count cables
Metro — metropolitan networks requiring fast splicing with a large number of joints
Any installation where splicing time is critical to the project budget

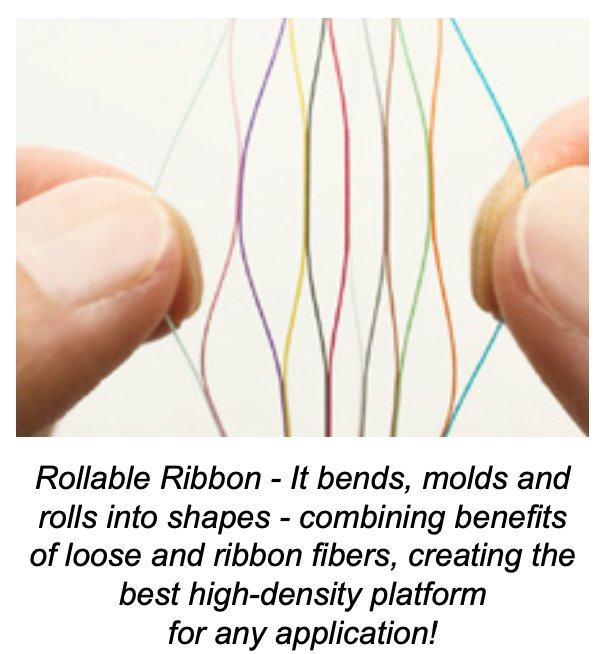

Rollable Ribbon › the future of high-density networks

Rollable Ribbon is a revolutionary cable format combining the advantages of loose fibers and traditional ribbon. The ribbon is flexible — it bends, rolls and forms like a bundle of loose fibers — yet retains the ribbon structure that enables mass splicing.The FEC 6912f cable with Rollable Ribbon fibers replaces a traditional 864-fiber cable at the same outer diameter — which means 8 times higher fiber density. The FITEL S124X is optimized for splicing 200 µm Rollable Ribbon up to 16 fibers.

One splicer › all ribbon formats

The FITEL S124X supports all current ribbon and fiber formats thanks to interchangeable V-groove guides — without the need to buy separate devices:

Format	Pitch	Max. fibers	Splice time
Rollable Ribbon	200 µm	16	23 s
Flat ribbon	250 µm	12	15 s
Flat ribbon	200 µm	12	15 s
Single fiber	—	1	13 s

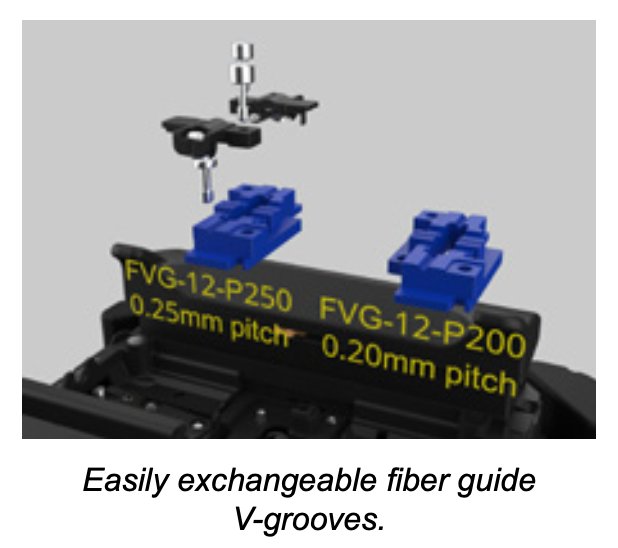

Interchangeable V-groove guides — fast format change

Switching between the 250 µm and 200 µm formats takes a dozen or so seconds. The FVG-12-P250 and FVG-12-P200 guides are easily interchangeable without tools — the technician switches between cable types in the field without downtime.

Ergonomics and device features

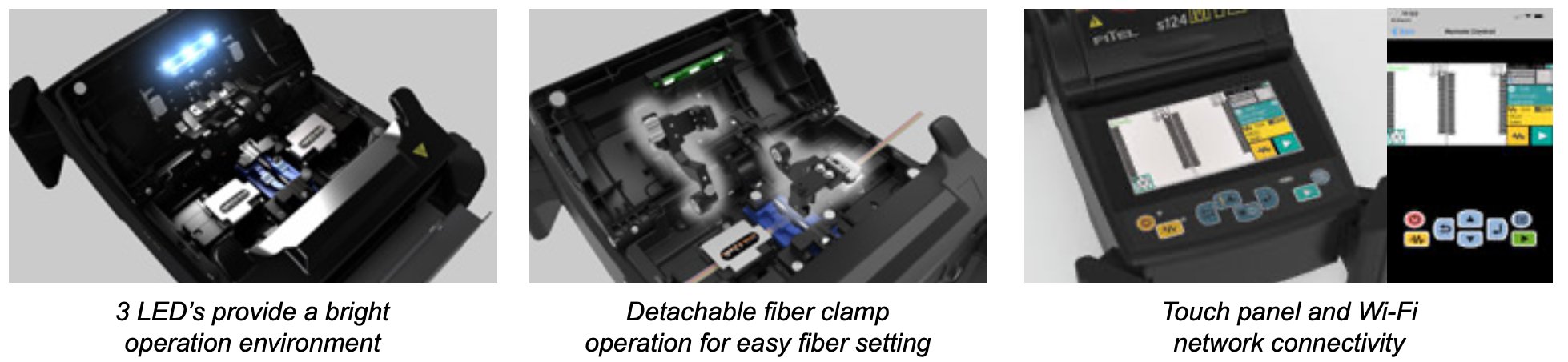

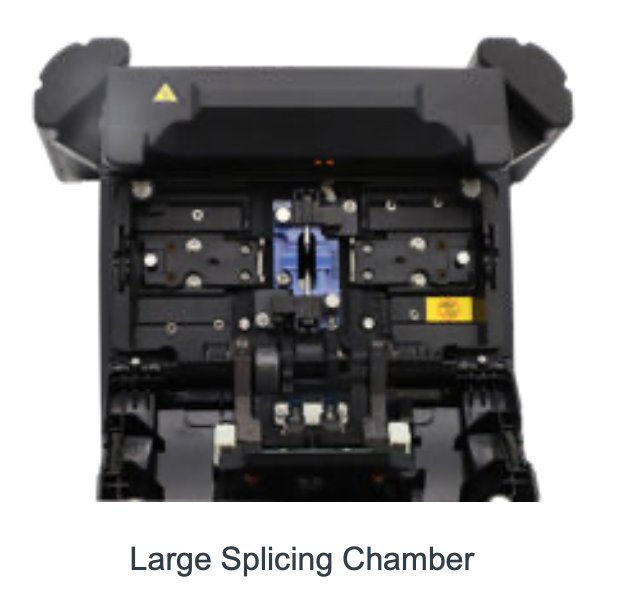

Spacious splicing chamberThe large chamber ensures convenient loading of wide multi-fiber ribbons. 3 LEDs illuminate the entire work area — work in any lighting conditions.Detachable fiber clampThe detachable fiber clamp facilitates precise positioning of multi-fiber ribbons and simplifies maintenance.

4.3" touch panel and WiFiIntuitive interface with a touchscreen. The WiFi module enables data management and remote control of the splicer via smartphone (Android/iOS).Automatic condition compensationAutomatic correction of arc parameters according to temperature and atmospheric pressure — consistent results regardless of field conditions.

Durability

The S124X has mechanical and environmental resistance identical to the S179+: a 76 cm drop from 5 positions, IK07-class impacts, and protection against dust and splashing.

Drop	76 cm, 5 positions (vertical drop test)
Impact	IK07 (0.5 kg from 40 cm height)
Dust	Particles ≤25 µm for 8 h
Splashing	IPX2 (3 mm/min, 4 sides, 15° tilt)

Technical specification

Parameter	Value
Supported fiber types	SM (G.652, G.657A1, G.657A2), MM (G.651), DS (G.653), NZD (G.655), UBIF (G.657B3)
Fiber count	2, 4, 6, 8, 12, 16
Average splice loss	SM: 0.05 dB • MM: 0.03 dB • DS: 0.08 dB • NZD: 0.08 dB • BIF: 0.05 dB
Splicing time	16-fiber: 23 s • 12-fiber: 15 s • Single: 13 s
Heating time	16-fiber: 28 s • 12-fiber: 28 s • Single: 13 s
Fiber pitch (coating)	Ribbon: 200 µm and 250 µm • Single: 200, 250, 900 µm
Cleave length	10 mm
Battery (cycles)	200 splice+heat cycles (90 s/cycle, 20°C)
Weight	1.8 kg (with battery)
Dimensions	139 × 209 × 114 mm (without bumper) / 179 × 246 × 131 mm (with bumper)
Display	4.3" touch LCD (color)
Connectivity	WiFi (dongle optional in the S124X-3-1 version)
Electrode life	1,200 splices
Splicing / heating programs	max. 300 / max. 100
Results memory	10,000 splices
Operating temperature	‑10°C to +50°C
Max. operating altitude	up to 2,000 m (1–12 fibers) / up to 1,000 m (16 fibers)
Wind protection	up to 15 m/s
Power supply	AC 100–240 V (50/60 Hz) / DC 11–24 V
Compatible sleeves	40 mm / 60 mm

Standard kit

Two versions available: S124X-3-0 (without WiFi dongle) and S124X-3-1 (with WFD-01 WiFi dongle).

FITEL S124X splicer with FVG-12-P250 guide (0.25 mm pitch)
HCC-11 hard transport case
S947 battery
ELR-01 spare electrodes
S979 AC adapter + power cord
CTX-03 cooling tray
Fiber reformers: FRF-01 (4 fibers) + FRF-02 (8/12 fibers)
VGC-01 brush, D5111 electrode sharpener, TCC-01 tool kit
ARS-01 anti-glare film, UMC-03 operating manual
S124X-3-1 additionally: WFD-01 WiFi dongle
