Albedo Net.Time Ω – modułowy grandmaster PTP/NTP/SyncE

Albedo Net.Time Ω – Modular PTP/NTP/SyncE Grandmaster

Name: Albedo Net.Time Ω – Modular PTP/NTP/SyncE Grandmaster
Brand: Albedo Telecom
SKU: 17778

Albedo Net.Time Ω (Omega) is a universal, modular PTP/NTP/SyncE grandmaster with 4 GbE ports, handling up to 1,000,000 NTP transactions/s and 1024 PTP unicast clients – a single network clock for power utilities, data centers, railways, aviation and finance.

Albedo Net.Time Ω (Omega) is a universal, modular PTP/NTP/SyncE network clock with 4 GbE ports that, thanks to interchangeable modules, can be configured to the requirements of any industry – power utilities, data centers, railways, air traffic control or finance. It can operate as a master, boundary or slave clock and distribute a wide range of signals (PTP, NTP, SyncE, ToD, IRIG-B, 1PPS, T1/E1, MHz). Net.Time Ω simplifies migration to PTP without abandoning investments in NTP, IRIG-B or BITS – translating protocols in any direction.

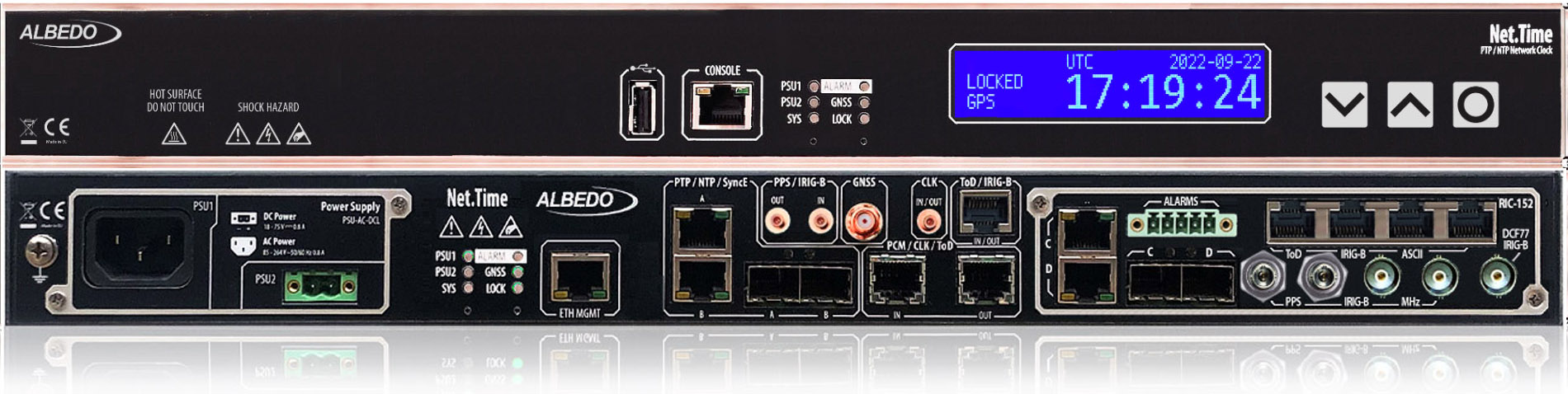

Net.Time Ω with display – modular PTP/NTP/SyncE clock with 4 GbE ports.

Key advantages of Net.Time Ω

Modular, scalable architecture – configuration for any industry, up to 4 GbE ports
Up to 1,000,000 NTP transactions/s and up to 1024 PTP unicast clients
Support for PTP Telecom, Power and Utility profiles and native PRP
Multi-band GNSS – accuracy, redundancy and anti-spoofing resilience
OCXO / Rubidium oscillator – high stability in holdover mode
Protocol translator – PTP-to-anything, NTP-to-PTP, IRIG-B-to-PTP
Optional display, alarm relays, redundant power supply; power draw of only ~10 W
Up to 10 years warranty

Applications

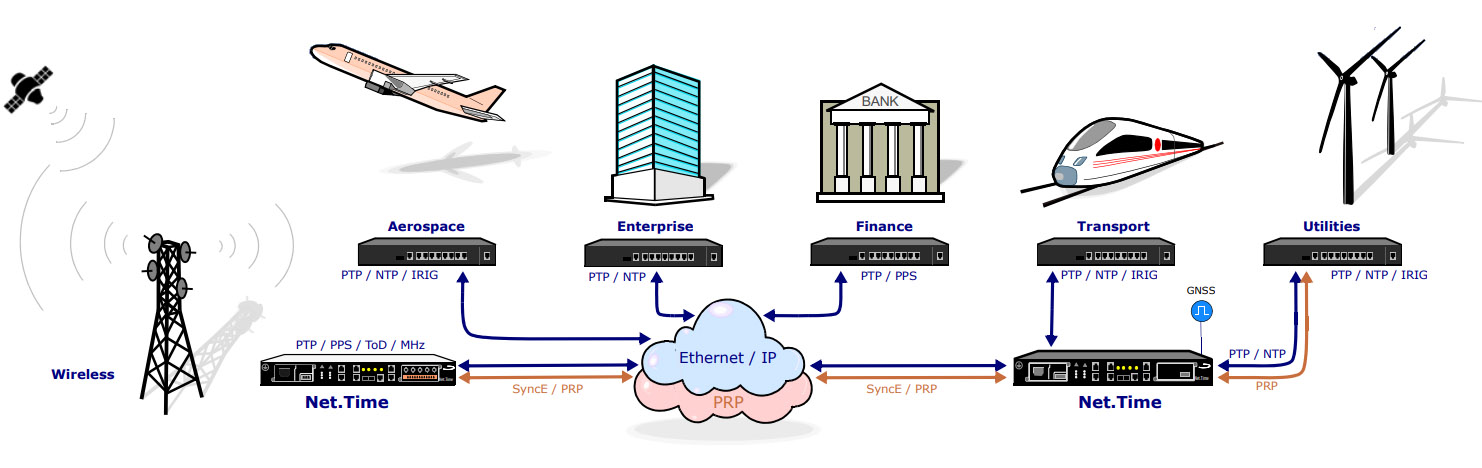

A single modular clock configurable for many industries – power utilities, data centers, railways, aviation, finance.

Power utilities – WAN and substations (smart grid, automation)
Wireless networks / 5G backhaul (boundary clock at the edge)
Data centers and financial institutions (timestamping)
Railways and air traffic control (legacy signals + PTP)

Technical specification

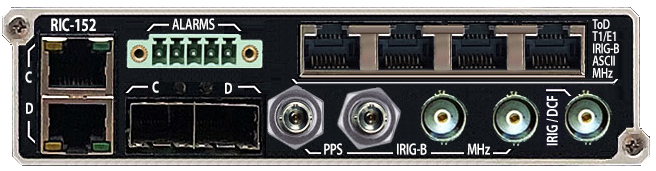

Interchangeable interface modules (RIC) – flexible configuration of time inputs and outputs.

Throughput / ports	1 Gb/s · up to 4 ports
PTP profiles	Telecom / Power / Utility (optional)
NTP	yes – up to 1,000,000 transactions/s
SyncE	optional (in/out)
PRP	optional (native DAN-P, no RedBox)
IRIG-B / display / modules	optional
PTP unicast clients	up to 1024
Platform	19", 1U, aluminum enclosure, passive cooling (fanless)
Operating temperature	−40…+70°C
GNSS receiver	72 channels – GPS, GLONASS, BeiDou, Galileo; single- / multi-band versions
Oscillator	TCXO / OCXO / OCXO High Quality / Rubidium / Rubidium High Quality
Accuracy	GNSS <40 ns, ToD <10 ns
Holdover	Rubidium: 100 ns @ 10 h, 500 ns @ 24 h, 1 µs @ 48 h · OCXO: 500 ns @ 2 h, 1 µs @ 4 h, 5 µs @ 24 h
I/O signals	PTP, NTP, ToD, n × 1PPS, IRIG-B, SyncE, MHz, T1, E1, DCF77
Protocol translator	any input signal/protocol → any output
Configuration	Slave / Master / Boundary (up to 1024 unicast clients)
Management	Web, CLI, Syslog, SNMP v2/v3, SGRwin
Access control	RADIUS, TACACS+
Power supply	redundant (single/dual); AC 100–240 V, DC 18–75 V or 43–160 V, AC/DC 85–264 V / 100–370 V
Warranty	up to 10 years

Frequently asked questions (FAQ)

Why is Net.Time Ω called a universal clock?

Thanks to its modular design and support for all PTP profiles (Telecom, Power, Utility), NTP, SyncE and legacy signals, a single model can be adapted to power utilities, telecommunications, data centers or finance – without replacing the platform.

How many devices can Net.Time Ω synchronize?

Up to 1024 PTP unicast clients and up to 1,000,000 NTP transactions per second, which allows very large networks to be served from a single node.

Does it support PRP without an additional RedBox?

Yes – Net.Time Ω offers native PTP/NTP over PRP (DAN-P clock), so it does not require an external RedBox in dual-redundancy networks (IEC 62439-3).

Interlab Sp. z o.o. is an authorized distributor of Albedo Telecom in Poland. We provide technical consulting, configuration selection, demonstrations and deployment support. Contact us to get a quote or schedule a presentation.
