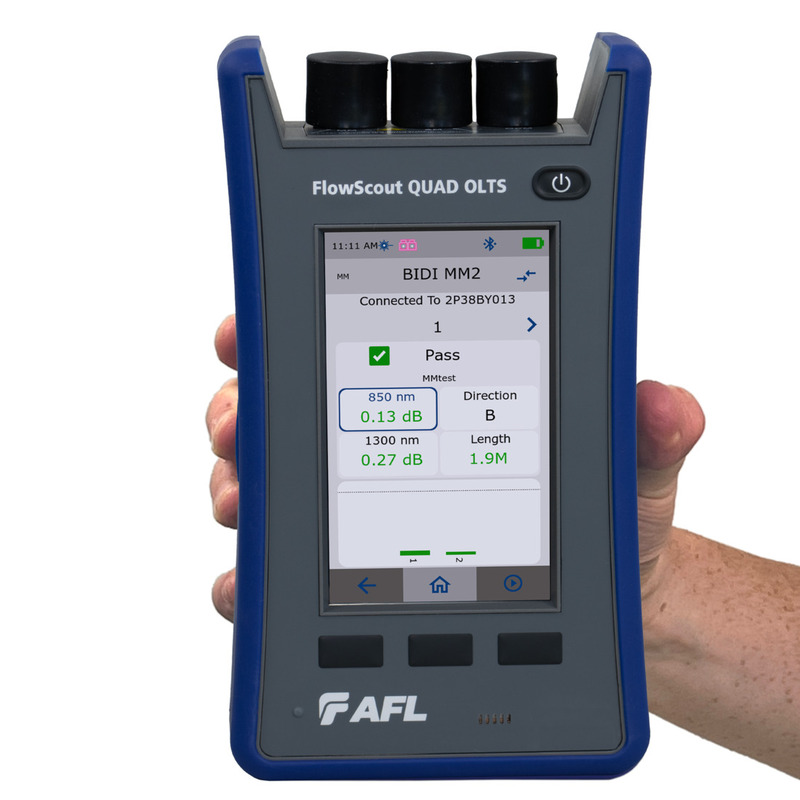

AFL FlowScout Quad OLTS – tester OLTS w dłoni technika

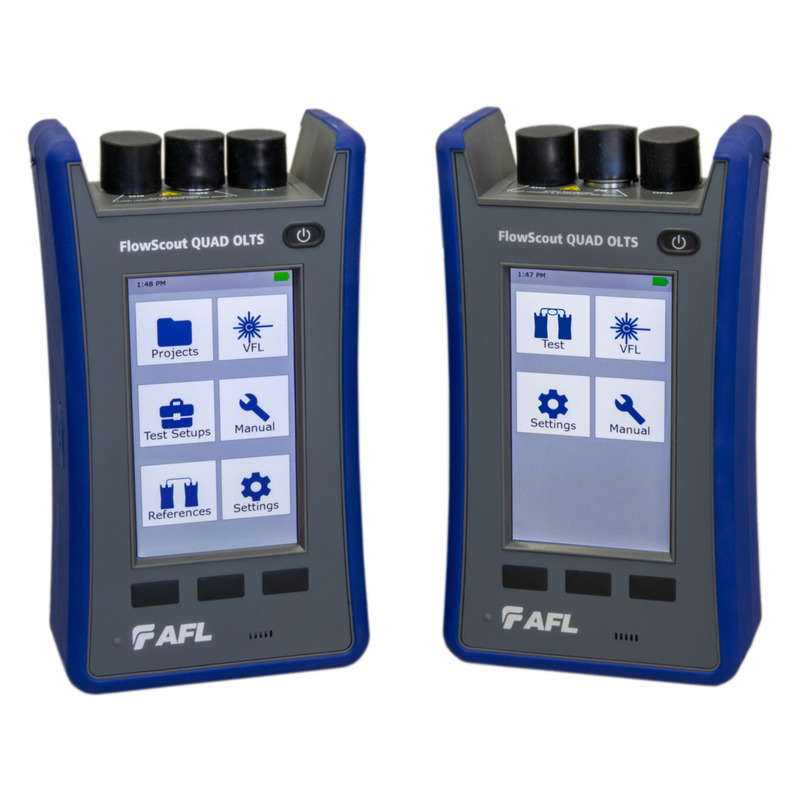

AFL FlowScout Quad OLTS – widok bez patchcordów

AFL FlowScout™ Quad OLTS – Tier 1 Certification OLTS Tester (Multimode and Single-mode)

The AFL FlowScout Quad OLTS is a Tier 1 certification-grade OLTS tester for fast, accurate insertion loss measurement and certification of duplex fiber links — both single-mode and multimode. Ideal for LANs and data centers; it can also operate as a standalone optical power meter or light source.

Tier 1 certification OLTS tester for 850 / 1300 / 1310 / 1550 nm
One kit for duplex multimode and single-mode links
Extremely fast and accurate pass/fail analysis
Certification to industry standards and custom limits
Wave ID function — automatic wavelength recognition
Large color touchscreen with icon-based interface
One reporting platform — AFL FlexReporter™ (Bluetooth/USB)

The AFL FlowScout Quad OLTS is the ideal tool for fiber certification in enterprise LANs and data centers. It is designed for fast, accurate insertion loss (Tier 1) certification of duplex fiber links, with the ability to test both single-mode and multimode fibers. Beyond Tier I certification, the unit can serve as a standalone optical power meter or light source, and thanks to the Wave ID format it automatically recognizes the wavelengths of signals sent from other AFL devices.

Extremely fast testing

The FlowScout Quad OLTS kit delivers lightning-fast testing of duplex fiber links, cutting certification time even in the busiest installation environments.

Accurate results and simple operation

Built on precise, highly accurate measurement technology, it ensures correct verification and validation of links. The intuitive, icon-based interface lets a technician quickly configure, test, verify, and document the network. The FlowScout Quad OLTS automatically evaluates insertion loss pass/fail against standards or user limits, and the large color touchscreen presents measured power levels with color-coded result indication.

All-in-one solution

The FlowScout Quad OLTS is a pair of handheld testers supporting native duplex testing in multimode and single-mode technology within a single kit — with no need for separate devices for each fiber type.

One reporting platform

Measured pass/fail limits and device information can be transferred from internal memory via Bluetooth or USB. Using the free AFL FlexApp (iOS/Android), test results can be wirelessly uploaded to the AFL FlexReporter™ cloud for analysis, editing, and report generation in FlexReports PC software.

Technical specifications

Optical interface (power meter)	interchangeable connector adapter (LC standard)
Detector type	InGaAs
Calibrated wavelengths	850, 1300, 1310, 1550 nm
Power measurement range	-60 to +3 dBm
Accuracy	±5% @ -10 dBm
Linearity	±0.15 dB
Display resolution	0.01 dB
Memory capacity	10,000 results
Length measurement	SM up to 200 km, MM up to 5 km (±1 m ±1%)
Multimode source	LED; 850 ±30 nm, 1300 (-40/+50) nm; power -23 dBm
Single-mode source	class I laser; 1310 ±20 nm, 1550 ±20 nm; power -1 dBm
Wave ID / tone generator	yes / 270 Hz, 330 Hz, 1 kHz, 2 kHz
Display	5″ capacitive, color, touchscreen
Communication	Bluetooth 5.1 BLE, USB-C
Dimensions / weight	22 × 11 × 5.5 cm / 0.9 kg
Operating temperature	-10 to +50 °C, 0–90% RH (non-condensing)
Power / operating time	Li-Ion battery or AC adapter / >8 h of continuous testing
Calibration interval	3 years
