ToupTek E3ISPM-U3-CL – USB3.0 + CameraLink camera (parallel output), Sony IMX183 20 MP

Name: ToupTek E3ISPM-U3-CL - USB3.0 + CameraLink camera (parallel output), Sony IMX183 20 MP
Brand: ToupTek
SKU: 17995

ToupTek E3ISPM-U3-CL is a camera with an innovative dual, parallel USB3.0 + CameraLink output – the same data stream goes to two devices simultaneously (USB controls, CameraLink transmits), which is ideal for isolated networks and redundant deployments. Sony IMX183 BSI 20 MP sensor, hardware ISP, 512 MB DDR3 buffer.

What is a ToupTek microscopy camera?

A microscopy camera turns a microscope into a digital imaging system: it captures the image from the optical path and enables live preview, measurements, documentation and analysis. ToupTek cameras feature a hardware Ultra-Fine engine (demosaicing, white balance, color correction, Gamma, LUT) implemented in the camera, which offloads the computer and delivers faithful colors and a stable preview. The bundle includes ToupView/ToupLite software and a cross-platform SDK (Windows/Linux/macOS/Android).

Key features

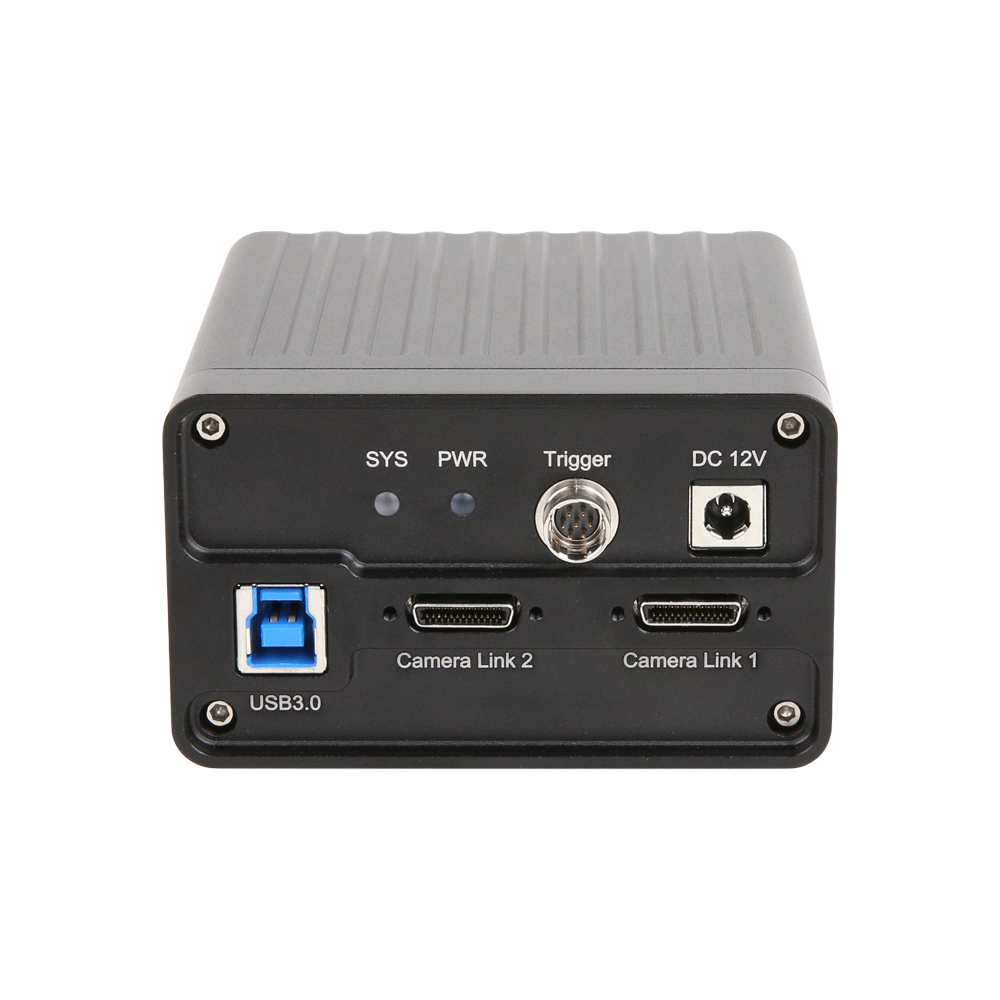

Parallel USB3.0 + CameraLink output (identical data to two devices)
Sony IMX183CQK BSI sensor, 20 MP
Hardware ISP (demosaicing, AE/AGC, Gamma, LUT in the camera)
512 MB DDR3 buffer, glow-free design
Dynamic range 72 dB, SNR 41.8 dB, ROI, hardware/software binning
Isolated industrial I/O, 7 W power draw (24/7 operation), C-mount, CE/FCC

Technical specifications

Sensor	Sony IMX183CQK BSI, 20 MP
Output	USB3.0 + CameraLink (parallel)
ISP	hardware
Buffer	512 MB DDR3
Dynamic range	72 dB (SNR 41.8 dB)
Binning	hardware 2×2/3×3; software 2×2/3×3/4×4
Power draw	7 W

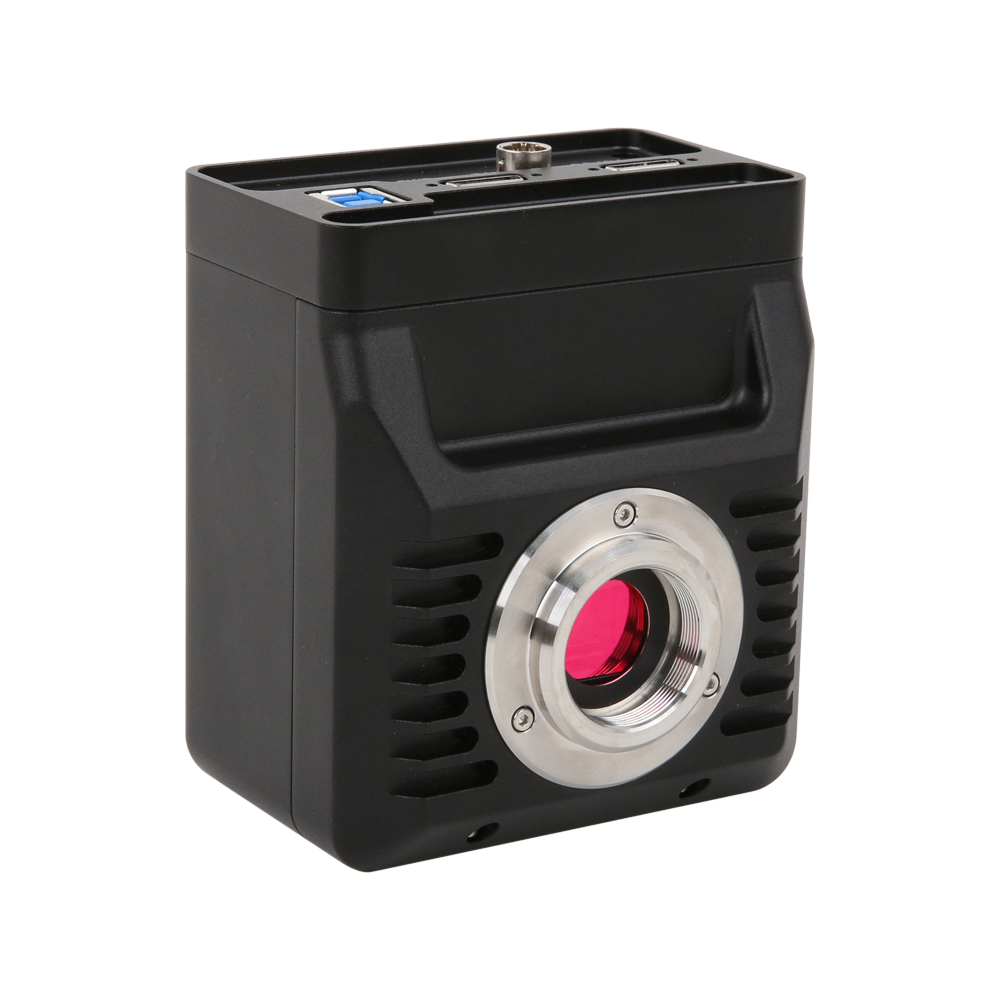

Mount	C-mount

Applications

Inspection of semiconductors, PCBs and LCD panels
Scientific imaging and microscopy
Industrial automation and machine vision
Network-isolated / redundant systems

Request a quote and configuration

We select ToupTek microscopy cameras for your microscope and application – sensor, interface, adapters (C-mount / 23.2 mm eyepiece tube). Contact Interlab to receive a quote and model selection.
