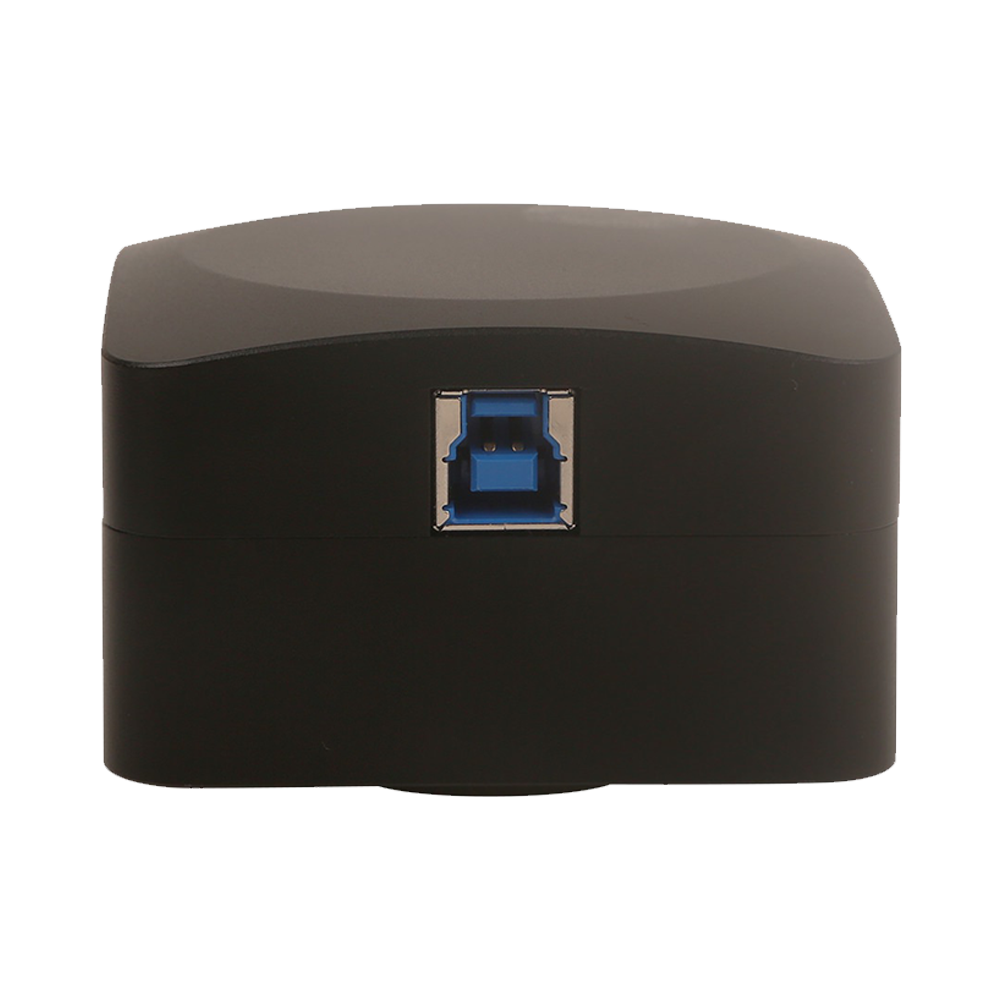

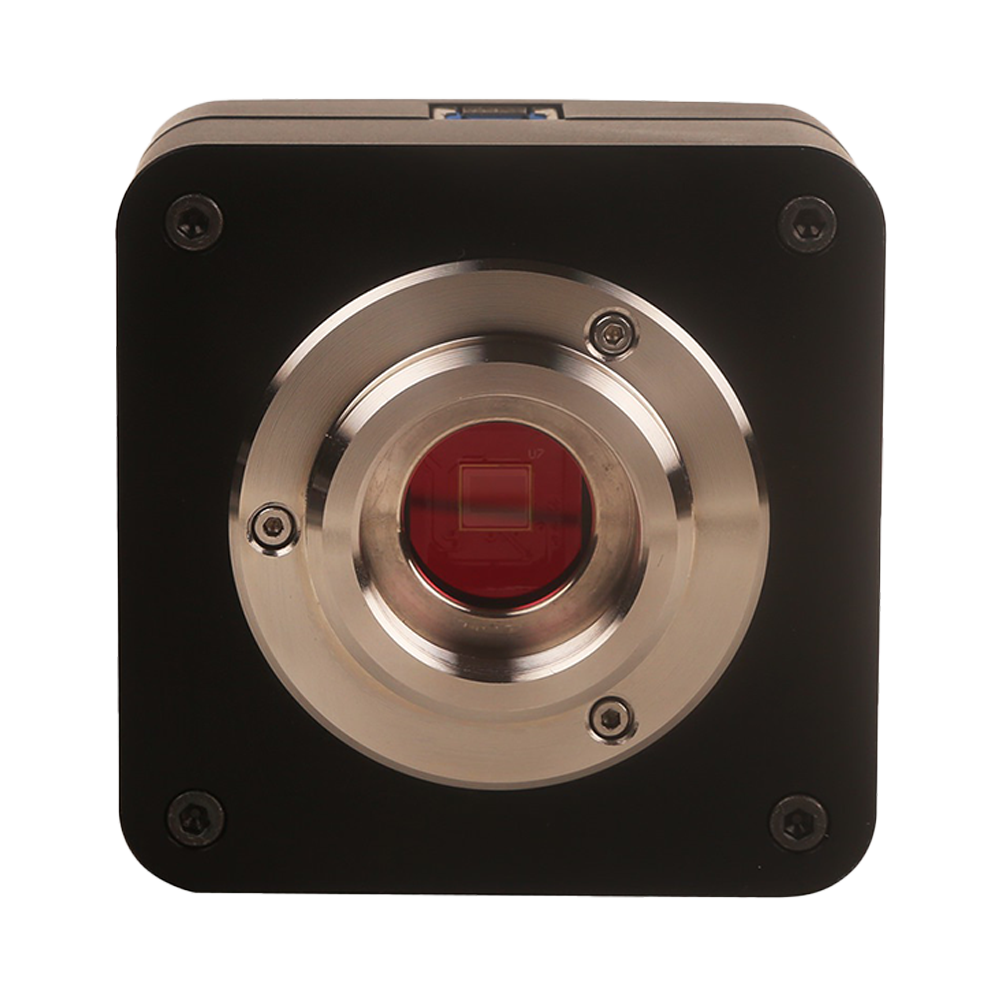

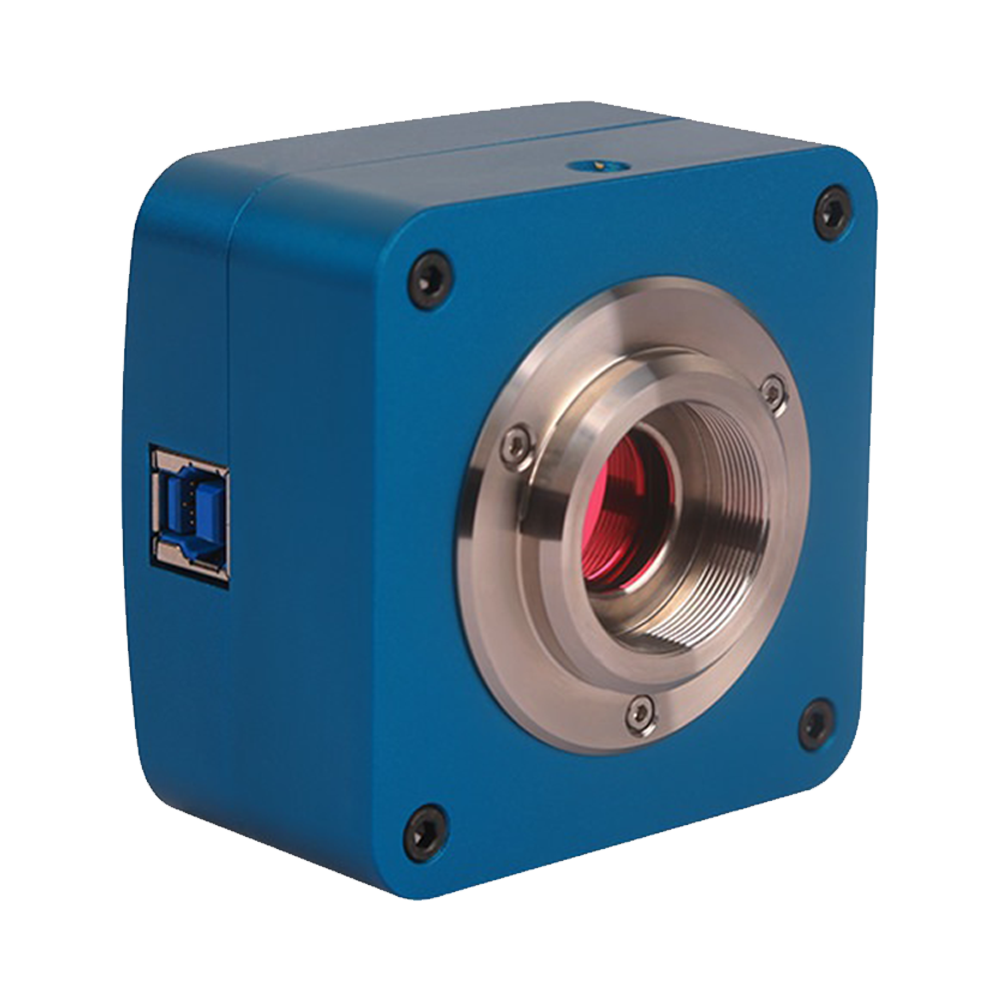

ToupTek U3CCD – CCD microscope camera USB3.0 (Sony ExView HAD), long exposure, NIR

Name: ToupTek U3CCD – CCD microscope camera USB3.0 (Sony ExView HAD), long exposure, NIR
Brand: ToupTek
SKU: 17998

ToupTek U3CCD is a CCD USB3.0 microscope camera with Sony ExView HAD sensors – higher quantum efficiency and low readout noise from visible light through near-infrared. Global shutter and long exposure (up to 3600 s) favor the detection of very weak signals.

What is a ToupTek microscope camera?

A microscope camera turns a microscope into a digital imaging system: it captures the image from the optical path, enabling live preview, measurements, documentation and analysis. ToupTek cameras feature a hardware Ultra-Fine engine (demosaicing, white balance, color correction, Gamma, LUT) implemented in the camera, which offloads the computer and delivers faithful colors and a stable preview. The set includes ToupView/ToupLite software and a cross-platform SDK (Windows/Linux/macOS/Android).

Key features

Sony ExView HAD CCD sensors, enhanced NIR response
Global shutter (no rolling shutter effect)
FPGA exposure up to 3600 s
Resolution approx. 2.8–12 MP
USB3.0 (5 Gb/s), low readout noise
8/12/16-bit depth, ROI, binning, C-mount, cross-platform SDK

Technical specifications

Sensors	Sony ExView HAD CCD
Shutter	global
Exposure	up to 3600 s (FPGA)
Resolution	2.8–12 MP
Band	VIS→NIR (enhanced)
Interface	USB3.0 (5 Gb/s)
Depth	8/12/16-bit
Mount	C-mount

Applications

Low-light microscopy and fluorescence
Materials science and semiconductors
NIR imaging
General scientific documentation

Request a quote and configuration

We select ToupTek microscope cameras to match the microscope and application – sensor, interface, adapters (C-mount / 23.2 mm eyepiece tube). Contact Interlab to receive a quote and model selection.
