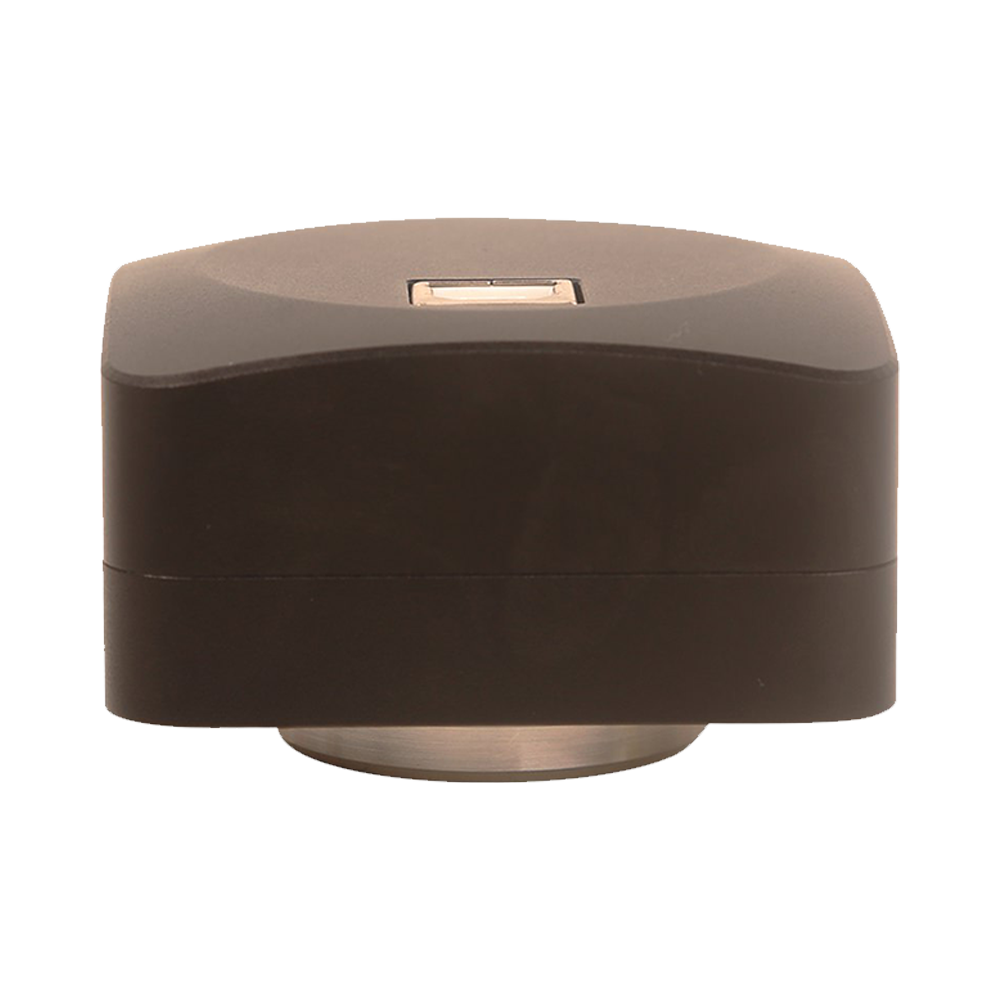

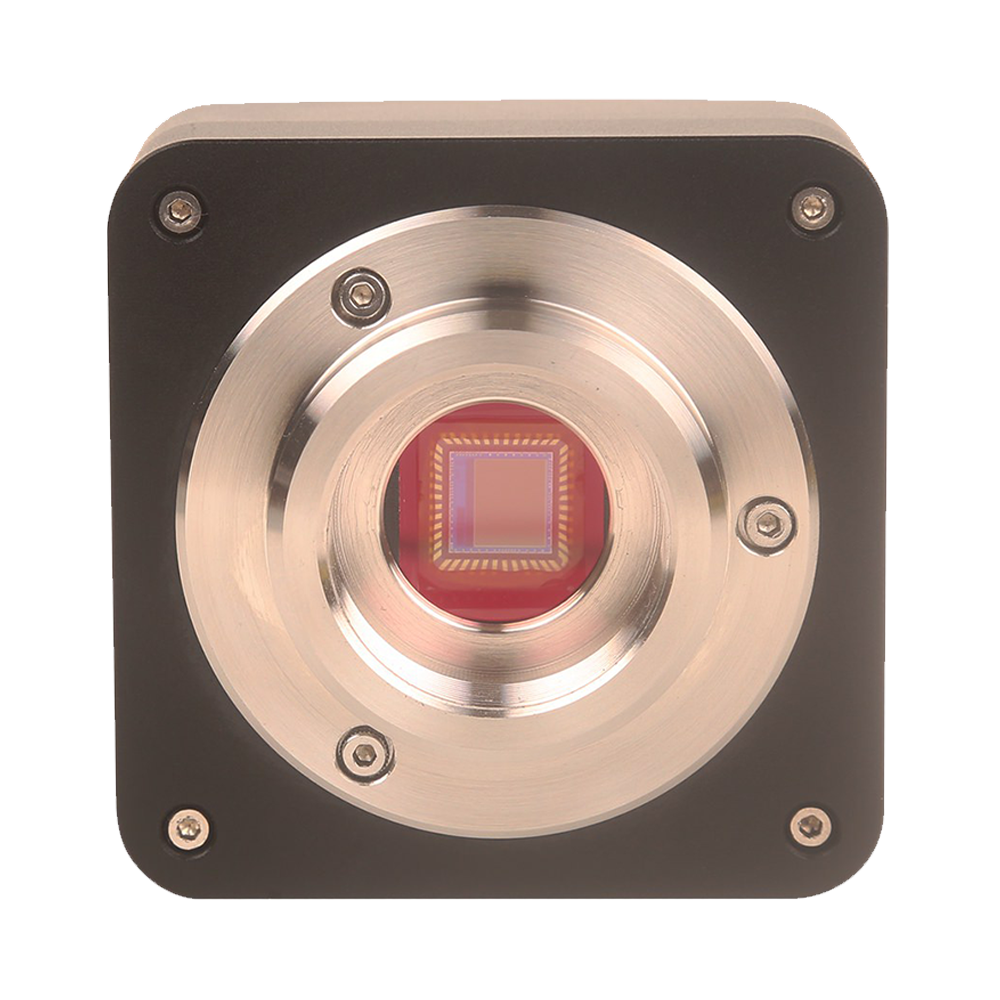

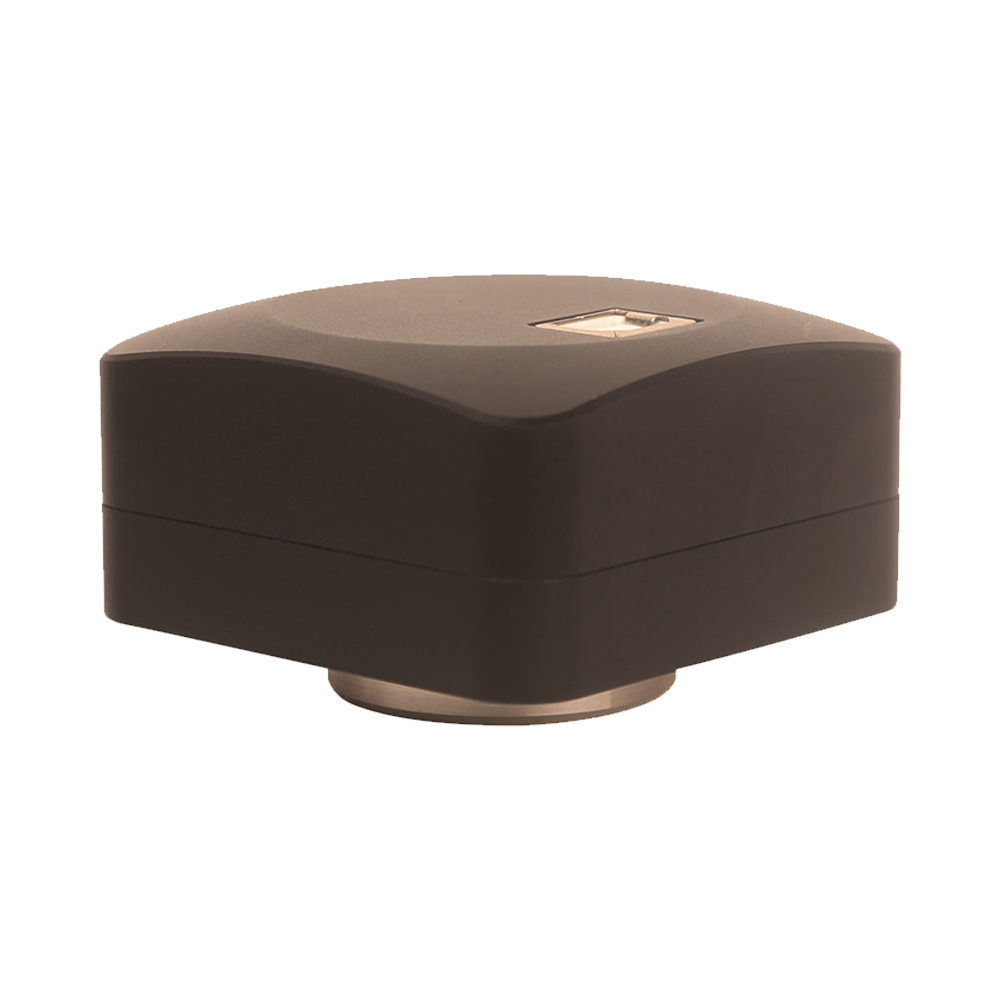

ToupTek ECMOS – USB2.0 microscope camera (Sony Exmor BSI), 1.2–8.3 MP

Name: ToupTek ECMOS – USB2.0 microscope camera (Sony Exmor BSI), 1.2–8.3 MP
Brand: ToupTek
SKU: 17997

ToupTek ECMOS is a compact USB2.0 (plug-and-play) microscope camera with back-illuminated Sony Exmor BSI sensors – good sensitivity and low noise even in low light. Resolution 1.2–8.3 MP, easy integration and compatibility.

What is a ToupTek microscope camera?

A microscope camera turns a microscope into a digital imaging system: it captures the image from the optical path, enabling live preview, measurements, documentation and analysis. ToupTek cameras feature a hardware Ultra-Fine engine (demosaicing, white balance, color correction, Gamma, LUT) implemented in the camera, which offloads the computer and delivers faithful colors and a stable preview. The set includes ToupView/ToupLite software and a cross-platform SDK (Windows/Linux/macOS/Android).

Key features

Sony Exmor/Exmor R/RS BSI sensors
USB2.0 (480 Mb/s) plug-and-play interface
Resolution 1.2–8.3 MP
Column-parallel A/D (low noise and power)
Ultra-Fine engine, 8/12-bit depth, RAW/Bayer
C-mount, CNC aluminum/zinc-aluminum housing, cross-platform SDK

Technical specifications

Sensors	Sony Exmor/Exmor R/RS BSI
Interface	USB2.0 (480 Mb/s)
Resolution	1.2–8.3 MP
Depth	8/12-bit
Mount	C-mount
Power	from the USB bus
SDK	ToupView/ToupLite; cross-platform

Applications

Education and documentation
Bright/dark field and low-light microscopy
General experimental imaging

Request a quote and configuration

We select ToupTek microscope cameras to match the microscope and application – sensor, interface, adapters (C-mount / 23.2 mm eyepiece tube). Contact Interlab to receive a quote and model selection.
