Luna OBR 4200

The LUNA OBR is a portable diagnostic station created for both manufacturers and installers of fiber-optic modules and short networks.

Spatial resolution < 3mm
Zero dead zone range of 500m
Sensitivity -120 dB
Attenuation resolution 0.1 dB

Luna obr 4200

The Luna Optical Backscatter Reflectometer™ (OBR) 4200 is the only portable device in the OBR field. A high-resolution reflectometer with highly sensitive backscatter, designed for testing short fiber-optic lines. Thanks to its small, rugged, and stable housing, the OBR4200 makes it possible to view any events in a fiber-optic section or network up to 500m with no dead zone and with millimeter resolution. This reflectometer is ideal for the fiber-optic industry, both in the production and inspection of short fiber-optic networks.

Key technical parameters

· Spatial resolution < 3mm
· Zero dead zone range 500m
· Sensitivity -120 dB
· Attenuation resolution 0.1 dB

Applications and distinguishing features

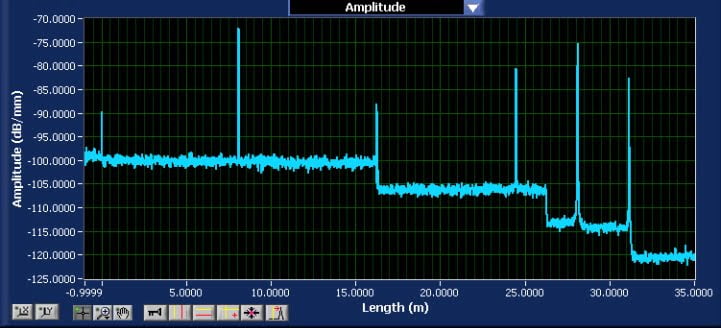

1) Measurement of losses generated by bends and fusion splices

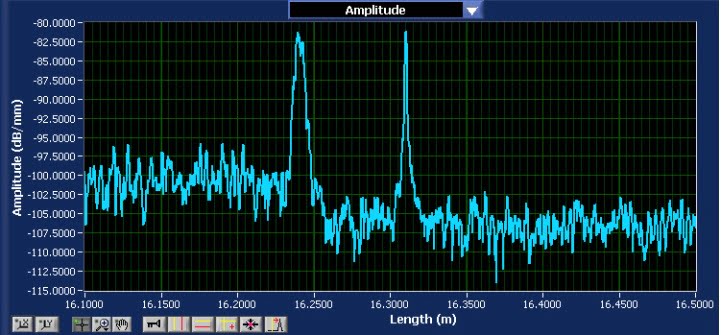

2) Ease of distinguishing a 7cm bend before a connector

Key parameters that distinguish the OBR4200
· Checking the quality of fiber-optic connections, connectors, and short networks
· Troubleshooting and distinguishing macrobends, fusion splices, connectors, and fiber damage
· Time savings thanks to IL point location
· Maintenance of onboard networks in aircraft
· Ability to create your own database verifying pass/fail events
