Albedo Net.Audit
Albedo Net.Audit - galeria 2
Albedo Net.Audit - galeria 3
Albedo Net.Audit - galeria 4

Albedo Net.Audit

Net.Audit is an exceptionally effective system for monitoring IP-layer network quality parameters. The system measures all parameters that determine the network quality class (QoS) in accordance with ITU-T Y-1541. Measurements are performed in real time (with no impact on network performance) and are based on RFC 4656 OWAMP (One-Way Measurement Protocol).

  • Real end-to-end measurements through NAT
  • One-way measurements – OWAMP RFC4566
  • Measurement probe synchronization
  • High system scalability
  • Centralized system management
REQUEST A QUOTE
SPECIFICATION

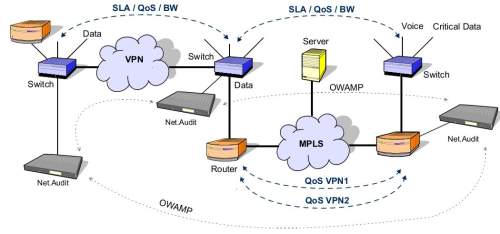

Net.Audit is an exceptionally effective system for monitoring IP-layer network quality parameters. The system measures all parameters that determine the network quality class (QoS) in accordance with ITU-T Y-1541. Measurements are performed in real time (with no impact on network performance) and are based on RFC 4656 OWAMP (One-Way Measurement Protocol). The system architecture consists of active measurement probes with an option for GPS time synchronization, and server software that collects all measurement data. The measurement probes can perform measurements in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations. All of this makes Net.Audit an ideal and exceptionally cost-effective system for verifying network SLAs and for identifying problems affecting the degradation of the quality of delivered services.

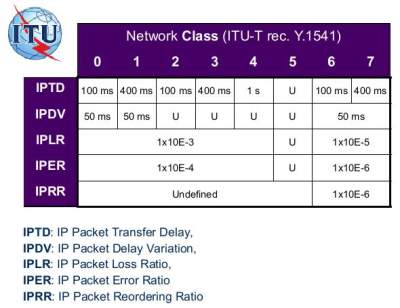

Measured QoS parameters:

  • Real end-to-end measurements through NAT
  • One-way measurements - OWAMP RFC4566
  • Measurement probe synchronization
  • High system scalability
  • Centralized system management
  • Network SLA parameter monitoring
  • IPTD: IP Packet Transfer Delay (RFC 2678 One way delay)
  • IPDV: IP Packet Delay Variation (one-way)
  • IPLR: IP Packet Loss Ratio (one-way)
  • IPER: IP Packet Error Ratio (one-way)
  • IPRR: IP Packet Reordering Ratio (one-way)
  • Network Availability (upstream / downstream)
Throughput data:
  • Channel occupancy distribution for upstream and downstream (kbit/s)
SLA statistics:
  • Programmable thresholds for IP-layer QoS parameters
  • Programmable IP-layer throughput thresholds
Results:
  • Graphs and statistics
  • Results for the upstream and downstream directions
  • GUI accessed through a web browser
  • Pass / Fail indicators
  • Reports in the form of e-mail messages and in CSV format
  • Long-term monitoring statistics (daily, weekly, monthly, yearly)
Measurement technology:
  • Measurements based on RFC 4656 OWAMP (One-Way Active Measurement Protocol)
  • Min. Header: 0.008 kbit/s (test packet: 64 bytes, 1 packet/min.)
  • Max. Header: 12.144 kbit/s (test packet: 1,518 bytes, 1 packet/sec.)
System management:
  • Access via SSH
  • Web browser
  • Remote configuration capability
  • Remote management/modification
Measurement probe synchronization methods:
  • NTP
  • GPS (OPTION)
Test settings:
  • Programmable test packet frequency from 1 sec. to 1 min.
  • Programmable test packet length from 64 to 1518 bytes
  • Programmable DSCP of test packets
Operating model:
  • In-service monitoring based on active measurement probes
Operating mode:
  • Point-to-point measurements (through NAT)
  • Multiple (and parallel) measurements between the system probes
Topology:
  • Point-to-point
  • Point-to-multipoint
  • Multipoint-to-multipoint
Architecture of the monitored network
  • LAN, MAN, WAN
  • VLAN support
  • Compatible with MPLS-based e-Line, E-LAN, e-Three
