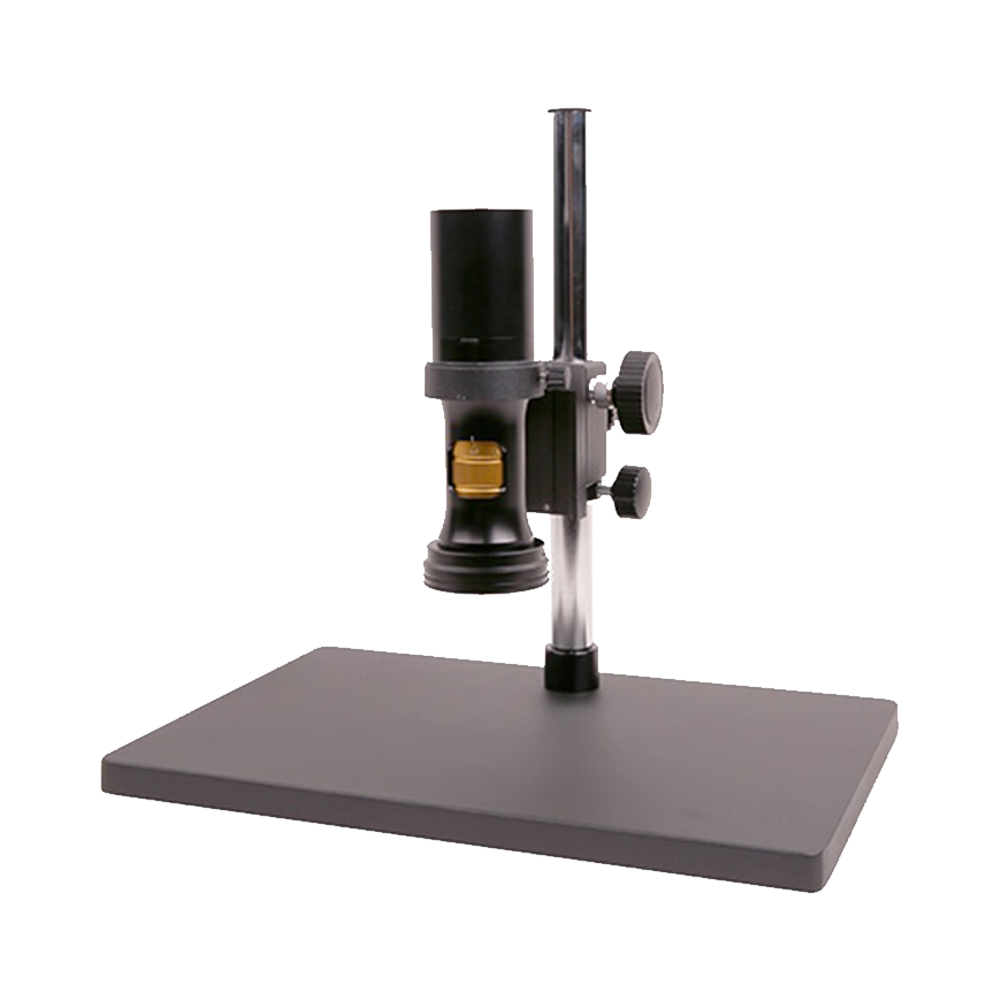

ToupTek ZM – all-in-one system with continuous zoom (HDMI/USB/Wi-Fi, 4K)

Name: ToupTek ZM – all-in-one system with continuous zoom (HDMI/USB/Wi-Fi, 4K)
Brand: ToupTek
SKU: 17973

ToupTek ZM is an integrated microscopy system with continuous zoom (ZM0480 0.4–8× and ZM0756 0.7–5.6× platforms), combining optics, a Sony camera and wireless LED illumination. It supports 4K/1080P HDMI, USB and Wi-Fi output; thanks to the integration it starts right away, without complex configuration.

What is an all-in-one system with continuous zoom?

Zoom optics, camera and illumination are integrated in a single housing – without cabling or component selection. The standard 50 mm mount allows installation on various stands, while the HDMI/USB/Wi-Fi outputs cover live display, PC acquisition and wireless operation.

Key features

Continuous zoom optics: ZM0480 0.4–8× / ZM0756 0.7–5.6×
Sony IMX sensors (2 MP / 5.1 MP / 8 MP)
4K/1080P HDMI, USB2.0, Wi-Fi (AP/STA) output
Wireless LED illumination (ring/coaxial/polarizing)
Recording to SD card or PC, H.264/H.265 encoding
Standard 50 mm mount, measurement tools, multilingual menu, ISP

Technical specifications

Type	all-in-one system with continuous zoom
Optics	ZM0480 0.4–8× / ZM0756 0.7–5.6×
Sensors	Sony IMX (2 / 5.1 / 8 MP)
Output	4K/1080P HDMI, USB2.0, Wi-Fi
Illumination	wireless LED (ring/coaxial/polarizing)
Recording	SD / PC, H.264/H.265
Working distance	37.5–160 mm, NA up to 0.182

Applications

Inspection of electronics, PCBs and semiconductors
LED/LCD inspection
Biological research
Education and inline inspection

Request a quote and configuration

We match ToupTek smart imaging systems and accessories to your microscope and task (camera, screen, illumination). Contact Interlab to receive a quote and configuration guidance.
