ToupTek AIOCAMTOP4K – economical all-in-one 4K camera with 13.3″ screen

Name: ToupTek AIOCAMTOP4K – economical all-in-one 4K camera with 13.3″ screen
Brand: ToupTek
SKU: 17970

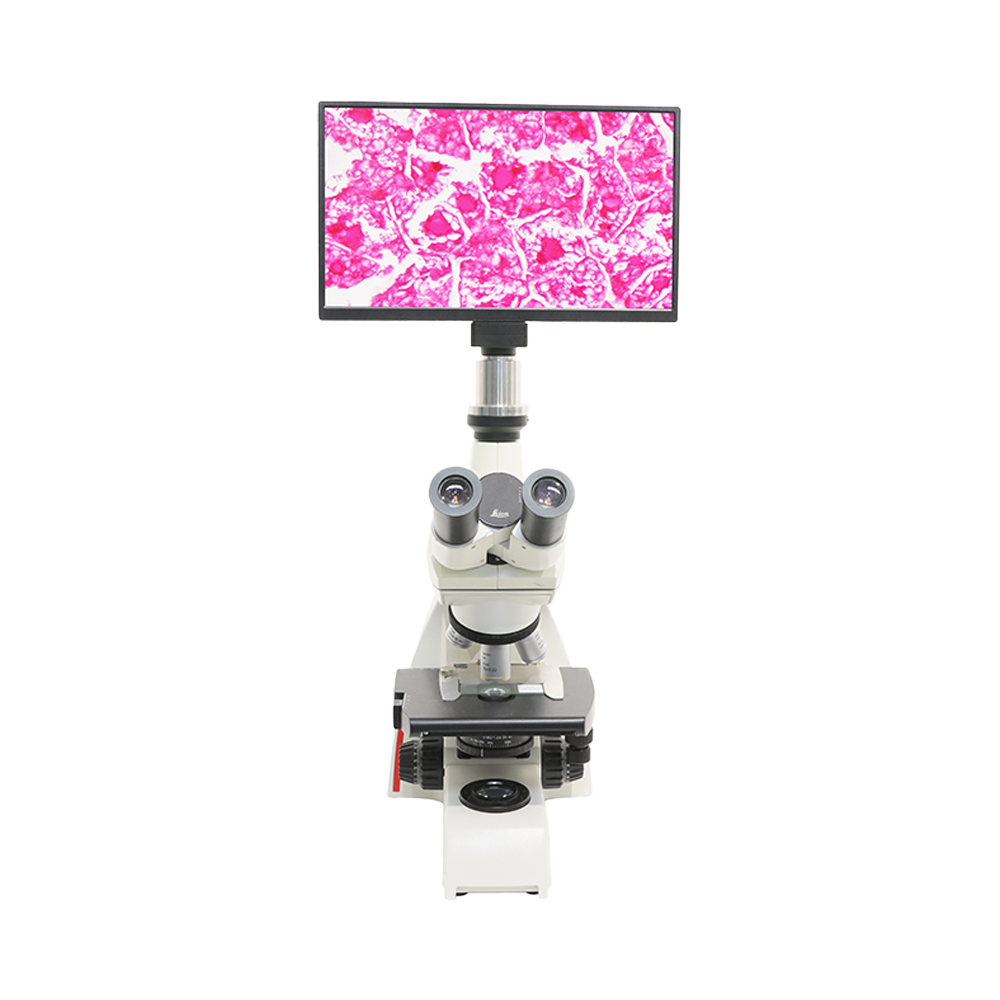

ToupTek AIOCAMTOP4K is the economical version of the all-in-one 4K camera: a 13.3″ screen integrated with a 4K acquisition system and a Sony Starvis 2 sensor. It works without a computer on stereo and biological microscopes; over Wi-Fi it forms an interactive teaching system.

How does the TOP (economical) version differ?

AIOCAMTOP4K retains the Sony Starvis 2 sensor and computer-free operation, but simplifies the interfaces (HDMI1.4, USB2.0) and delivers 4K@30 fps instead of 60 – hence the lower price while preserving image quality and XCamView functions (measurement, voice control).

Key features

Integrated 13.3″ screen + 4K system, computer-free operation
Sony Starvis 2 BSI sensor (IMX678, 8 MP)
HDMI1.4/USB2.0/Wi-Fi (AP/STA) output, 4K@30
Recording to USB drive, local preview and playback
Voice control; ROI WB, 3D NR, sharpening
XCamView (measurement, auto-edge), H.264/H.265, iOS/Android app

Technical specifications

Type	economical all-in-one 4K camera
Screen	13.3″
Sensor	Sony Starvis 2 (IMX678, 8 MP)
Output	HDMI1.4 / USB2.0 / Wi-Fi 4K@30
Functions	measurement, voice control, WB ROI, 3D NR
Video	H.264/H.265
Mount	C-mount

Applications

Microscopy teaching
Laboratory observation
Quality control
Video documentation

Request a quote and configuration

We select ToupTek smart imaging systems and accessories to match your microscope and task (camera, screen, illumination). Contact Interlab to receive a quote and configuration selection.
