ToupTek X5CAM4K – 4K multi-interface camera for interactive teaching (HDMI/LAN/USB3/Wi-Fi)

Name: ToupTek X5CAM4K – 4K multi-interface camera for interactive teaching (HDMI/LAN/USB3/Wi-Fi)
Brand: ToupTek
SKU: 17958

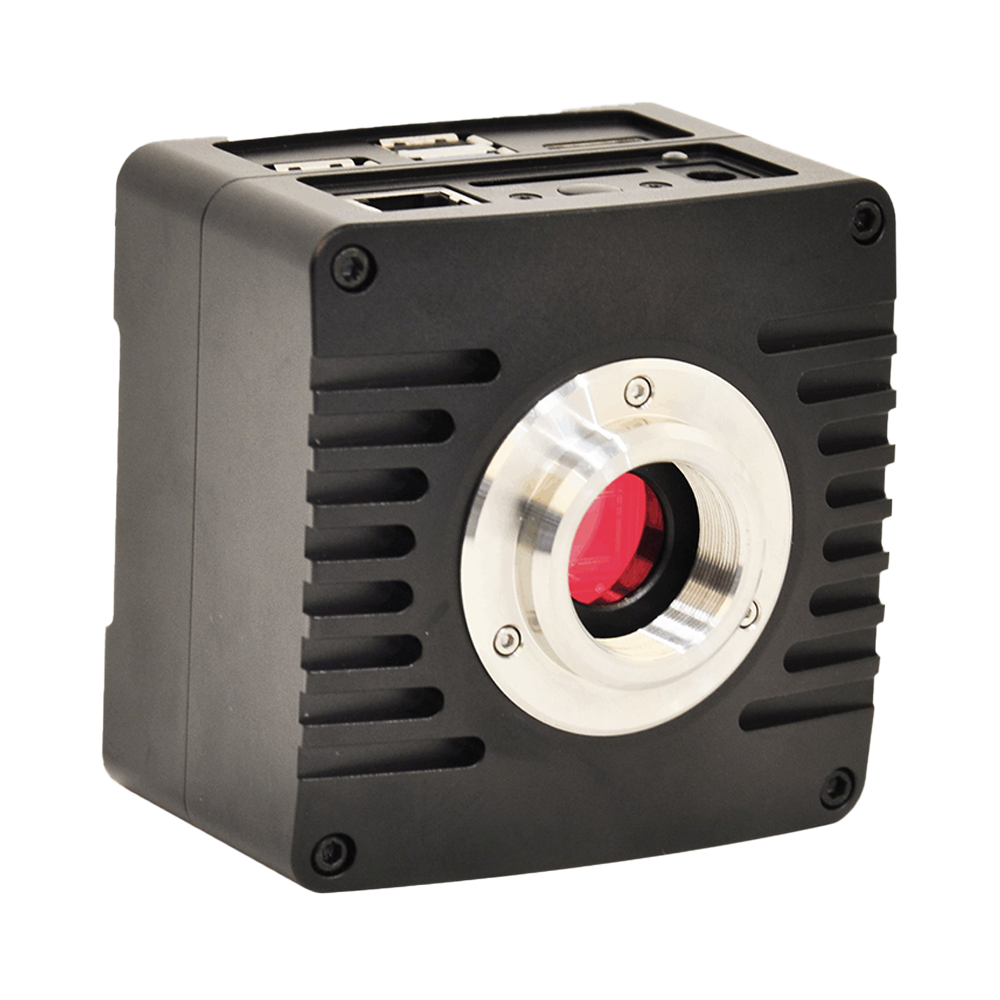

ToupTek X5CAM4K is a 4K multi-interface camera designed for interactive microscope teaching systems – with synchronous HDMI/network/USB3/Wi-Fi output for sharing the image across multiple terminals. Sony Starvis 2 sensors and low latency (~40 ms) provide smooth live display.

What is the ToupTek multi-interface (HDMI) camera?

The multi-interface (HDMI) camera integrates imaging, control and multiple outputs (HDMI/USB/LAN/Wi-Fi/Type-C) in a single housing. The built-in XCamView interface lets you operate the camera directly on an HDMI monitor (mouse/touch), without a computer – with live preview, measurements, recording and saving to SD/USB; parallel outputs enable simultaneous display, PC acquisition and network/teaching operation.

Key features

Sony Starvis 2 sensors (IMX678/585), color/mono versions
HDMI/NETWORK/USB3.0/Wi-Fi output (parallel, multi-terminal)
4K@60, low latency ~40 ms
Voice control, network upload, timestamp
XCamView (measurements, stacking, stitching, WDR)
SD/USB storage, RAW, C-mount, ToupView/ToupLite

Technical specifications

Type	4K multi-interface camera (teaching)
Sensors	Sony Starvis 2 IMX678/585 (color/mono)
Frame rate	4K@60; ~40 ms
Output	HDMI / NETWORK / USB3.0 / Wi-Fi
Functions	multi-terminal, voice, stacking
Mount	C

Applications

Interactive teaching systems
Demonstrations and presentations
Research and documentation
Industrial inspection

Request a quote and configuration

We select ToupTek multi-interface cameras to match the microscope and scenario (sensor, output interface, display, network). Contact Interlab to receive a quote and model selection.
