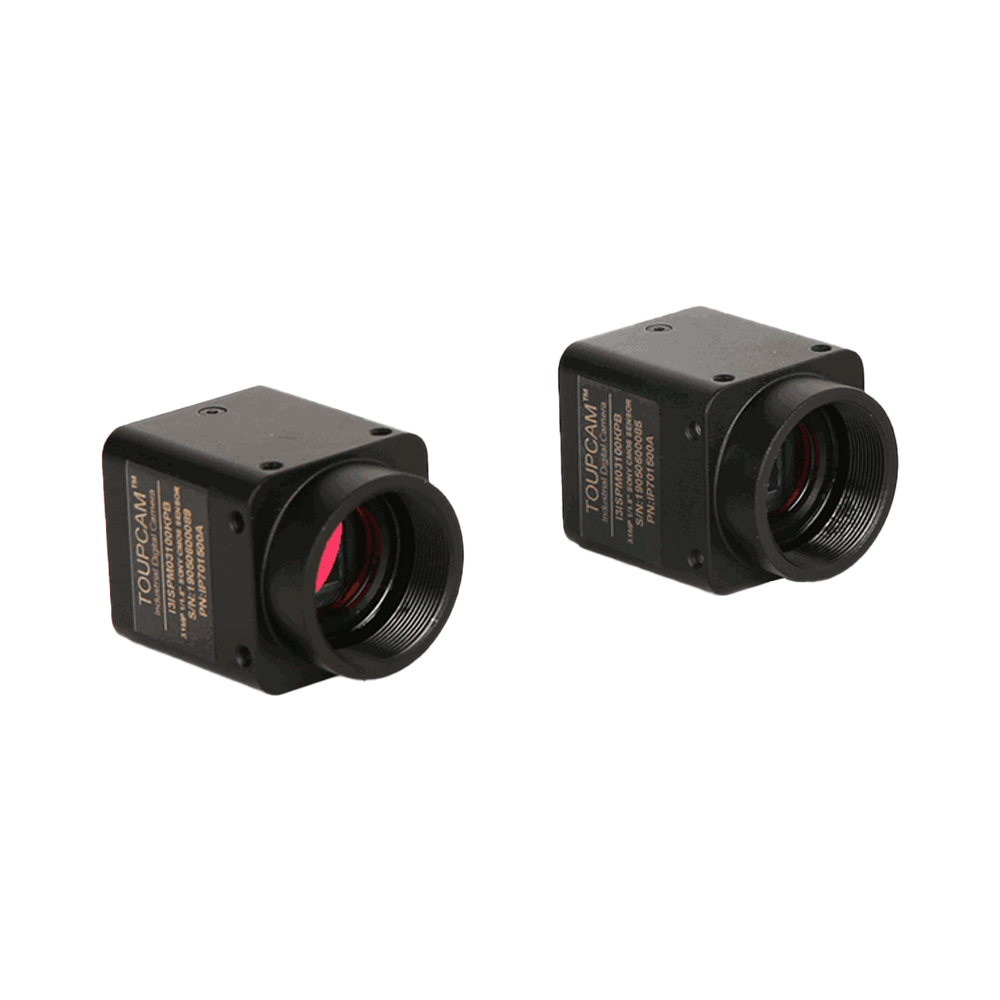

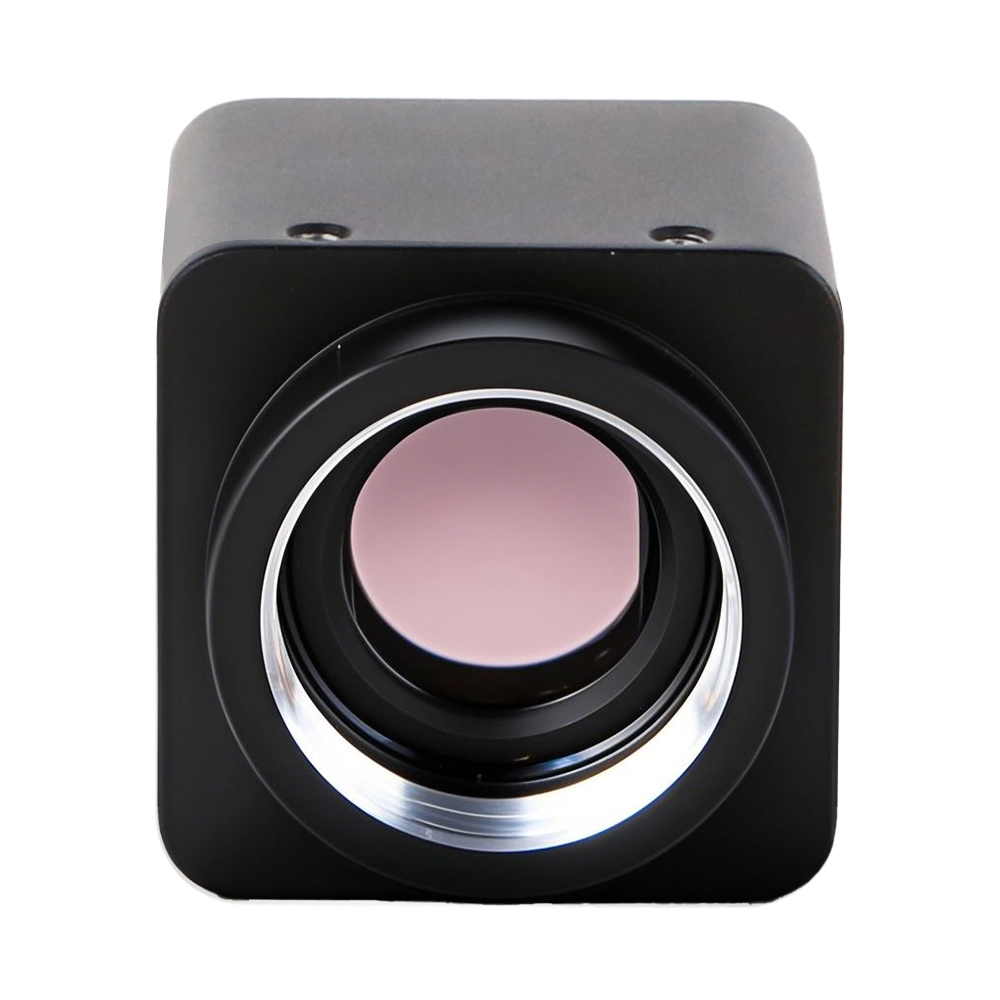

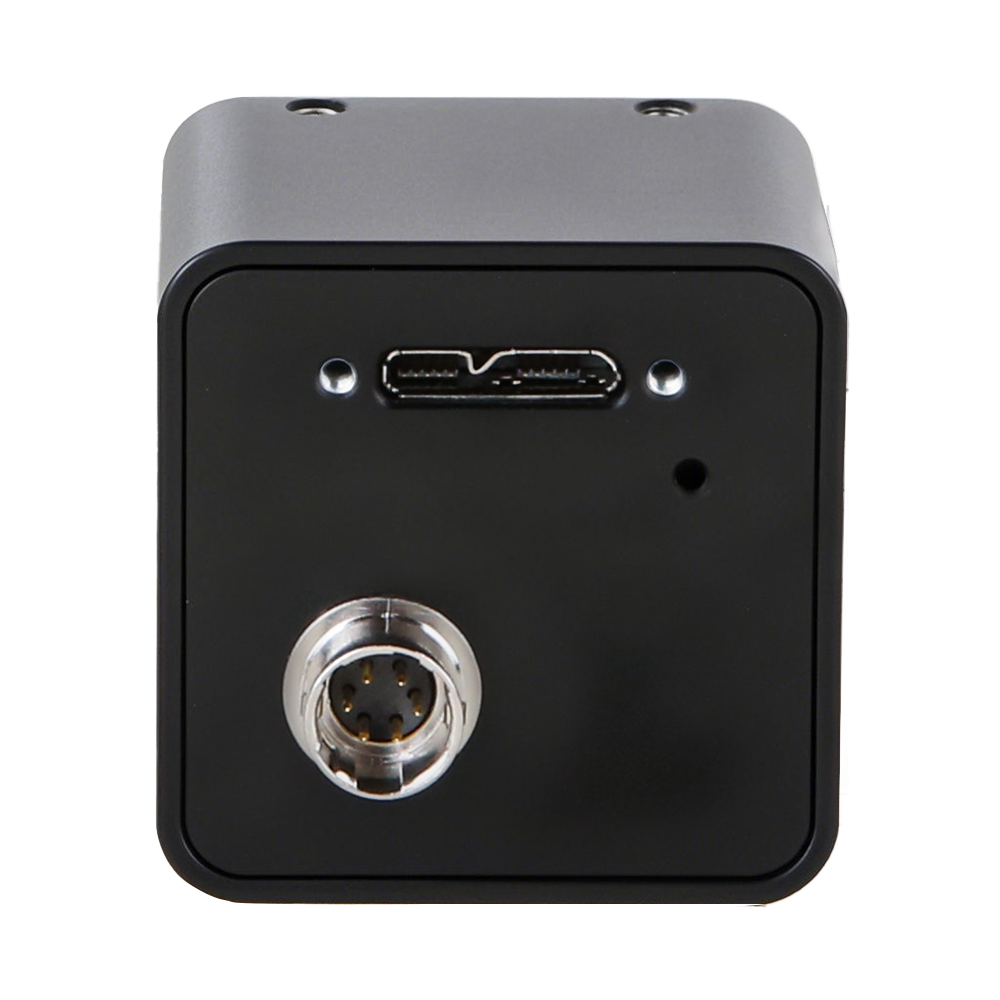

ToupTek I3ISPM – Compact High-Speed Industrial Camera with Hardware ISP 0.5-20.4 MP

Name: ToupTek I3ISPM - Compact High-Speed Industrial Camera with Hardware ISP 0.5-20.4 MP
Brand: ToupTek
SKU: 17988

ToupTek I3ISPM is a compact, high-speed industrial camera with a hardware ISP, for dynamic applications and embedded integration. Sony/onsemi sensors, resolution 0.5-20.4 MP, GS/RS shutter, housing from 33x33x33 mm.

What is a machine vision camera?

Machine vision cameras are used for automated inspection, measurement, and imaging in manufacturing and research. Key aspects are: shutter type (global shutter eliminates fast-motion distortion), data interface (USB3/GigE/10GigE/CameraLink/CoaXPress), triggering and inputs/outputs (synchronization with light sources and drives), and cross-platform SDKs for integration.

Key features

Sony/onsemi sensors, 0.5-20.4 MP, high frame rate
Global (GS) or rolling (RS) shutter
Compact housing from 33x33x33 mm (46.7 mm versions)
USB3.0/GigE/CoaXPress interfaces (model-dependent)
Hardware ISP (demosaicing, AE/AGC, AWB, Gamma, LUT)
Isolated IO + GPIO, ROI, binning, 8/10/12/16-bit, CE/FCC/RoHS

Technical specifications

Sensors	Sony/onsemi CMOS
Resolution	0.5-20.4 MP
Shutter	global / rolling
Housing	from 33x33x33 mm
Interface	USB3.0/GigE/CoaXPress
ISP	hardware
Depth	8/10/12/16-bit
SDK	ToupView; Win/Linux/macOS

Applications

Machine vision and online inspection
Embedded integration
High-speed dynamic imaging
Industrial automation

Request a quote and configuration

We select ToupTek machine vision cameras to match your machine vision / inspection application – sensor, shutter, interface, lens, and triggering. Contact Interlab for a quote and model selection.
