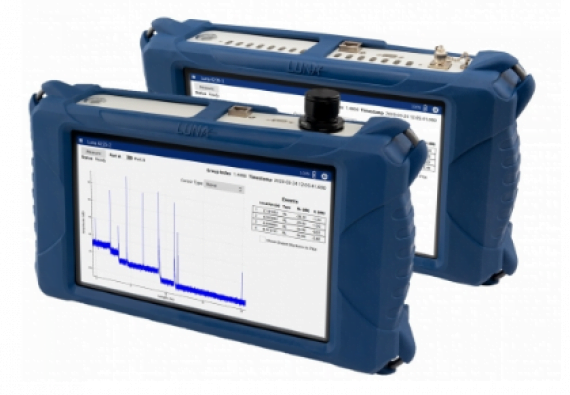

OBR6200 Reflectometer

The Luna OBR 6200 are portable and rugged ultra-high-resolution reflectometers with backscatter-level sensitivity for testing fiber-optic networks.

Fully portable and rugged OBR
Track and analyze return loss (RL) and insertion loss (IL) versus length
Measure length and delay with high precision
Spatial sampling resolution down to 80 μm

The OBR 6200 series uses optical frequency domain reflectometry (OFDR) technology to measure distributed return loss (RL) and insertion loss (IL) with sub-millimeter spatial resolution, high precision and a wide dynamic range. The OBR 6200 series consists of rugged, integrated, battery-powered systems with an intuitive touchscreen user interface, making them ideal for field maintenance applications. The OBR 6225 is optimized for short fiber-optic networks used in aviation, the navy, transportation and industry, while the OBR 6235 is well suited to various data centers.
