NKT SUPERK accessories

Accessories, filters and fibers for NKT Photonics supercontinuum sources

Wide range of complementary accessories
Fibers for individual spectral ranges
UV, VIS, IR filters and splitters
Advanced tuning systems
Plug&Play

SuperK accessories
NKT Photonics is not only about “Crystal Fibers” photonic fibers and the most stable supercontinuum sources available on the market. It is also a wide range of complementary accessories – from fibers for individual spectral ranges, through UV, VIS, IR filters and splitters, to advanced tuning systems.

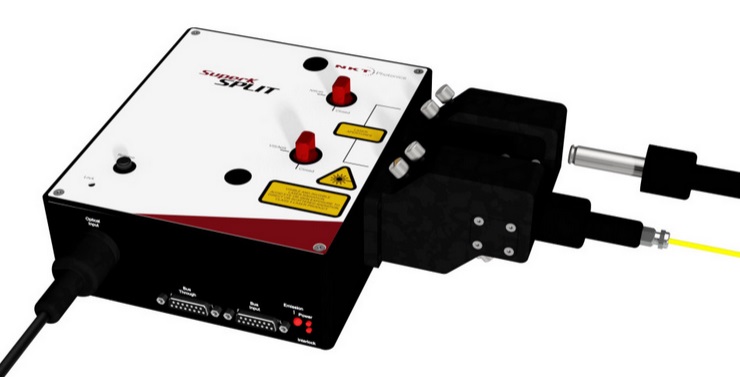

SuperK SPLIT

This is a passive filter that allows splitting of the optical spectrum, an important element in applications where a single spectral region is required.
Properties:
– separation of VIS from NIR

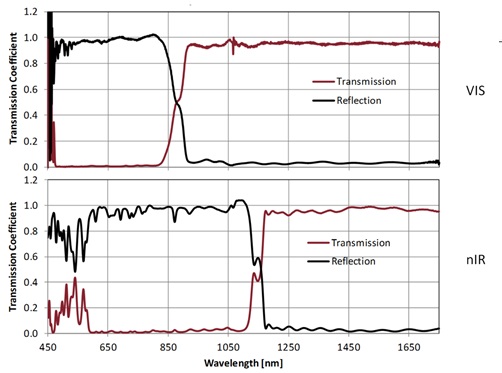

– splitter wavelength range:
VIS/IR: 450-830nm/915-2400nm,
nIR/IR: 600-1120nm/1180-2400nm

– industrial optical coupler
– various fiber connectors
– Plug&Play

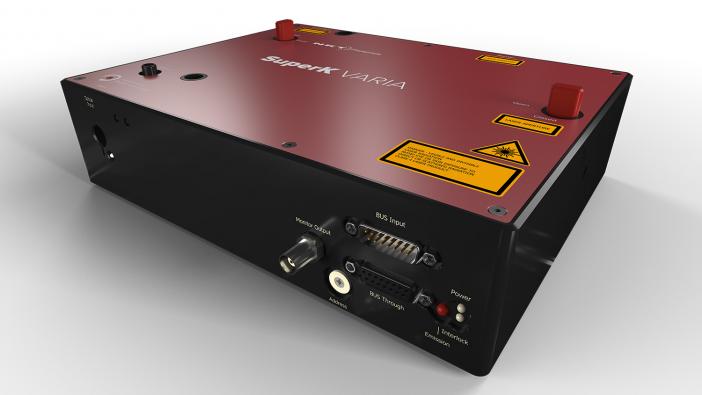

SuperK VARIA

This is a cost-effective alternative to a monochromator. Wavelength configuration between 400 and 840 nm. Bandwidth 10-100 nm.
– attenuation >50 dB
– high transmission without loss of polarization

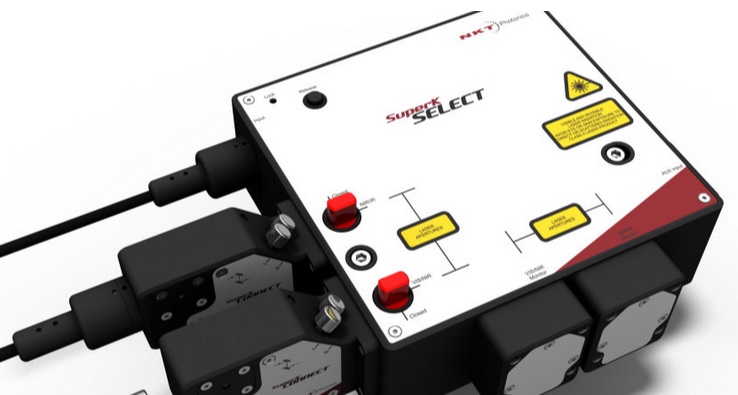

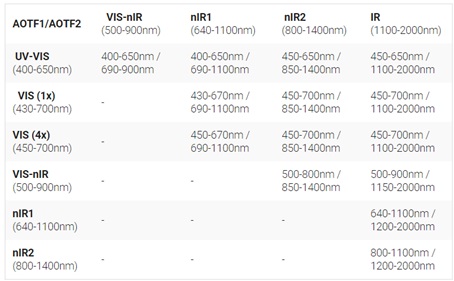

SuperK SELECT

A broadband tunable filter based on AOTF (Acousto-optic Tunable Filter) technology. SuperK SELECT is an easy-to-use and precise module allowing access to any wavelength in the spectrum.
