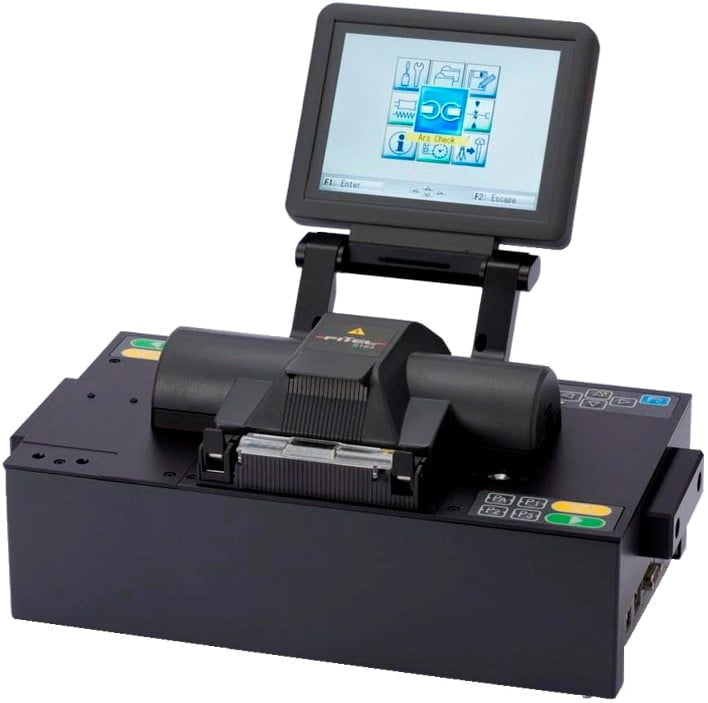

FITEL S183PM-II

Advanced fusion splicer for specialty fibers, including PM, PCF, Multicore, LDF:

cladding diameter range of spliced fibers: 80-500 µm
coating diameter range of spliced fibers: 160-2000 µm
valued for repeatability and reliability in industrial and laboratory conditions
requires no cooling or gas shielding
easy and intuitive operation
low operating cost
excellent splicing results
wide range of settings and extensive research capabilities

The FITEL S183PM-II is the most stable and reliable fiber optic fusion splicer in its class.

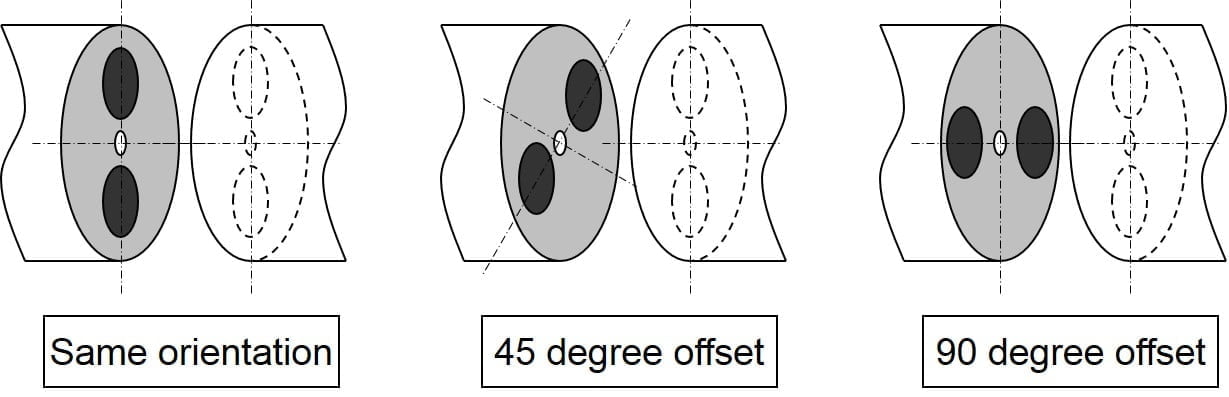

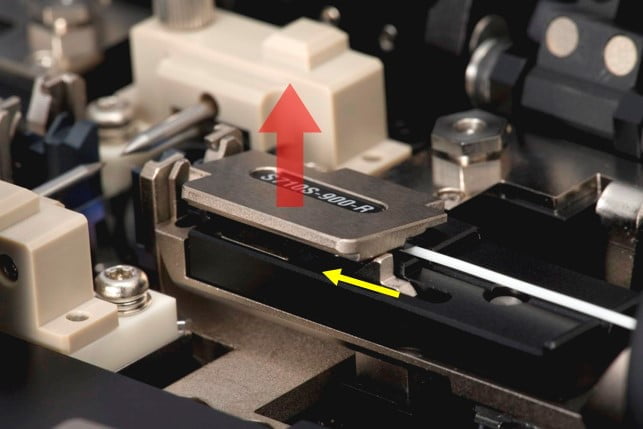

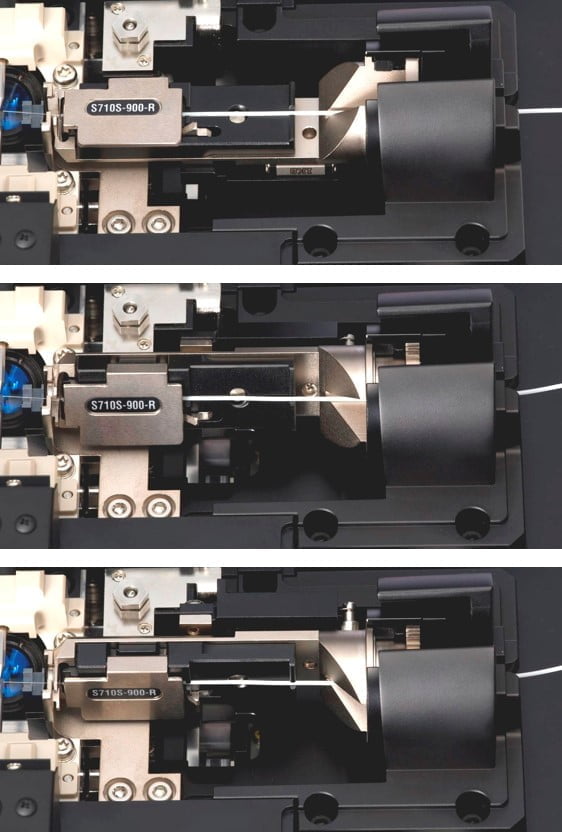

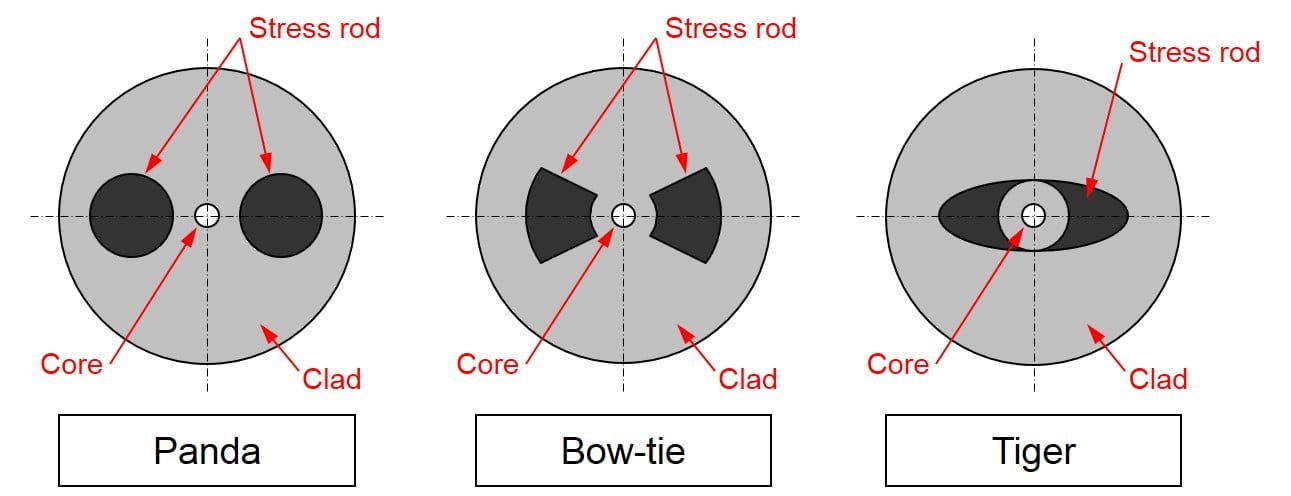

It is the standard choice for manufacturers of optical components who value the quality of their products. The unique rotating holder system enables splicing of polarization-maintaining fibers without the risk of damaging the splice when removing the fibers (automatic opening of one of the holders before the rotators return to their home position).

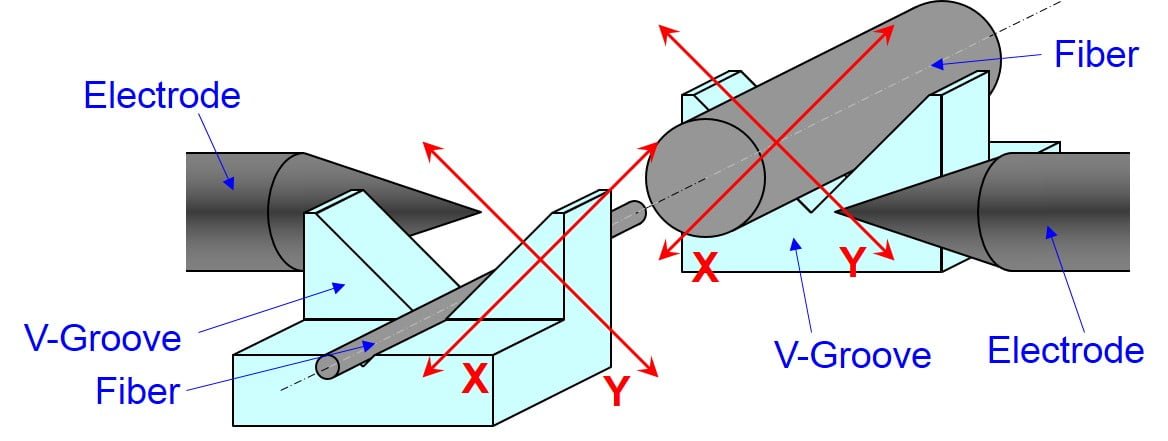

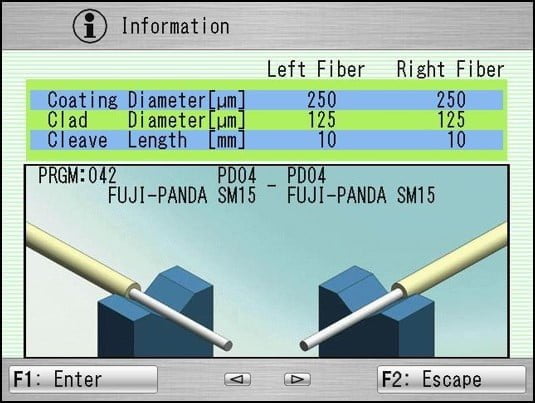

The innovative v-groove positioning system automatically adjusts their position according to the diameters of the spliced fibers, so that the longitudinal axes of the spliced fibers lie on one line. Only FITEL has such a simple, and therefore reliable, design solution. In addition, the intuitive menu allows for easy selection of v-groove settings depending on the fiber cladding and coating diameter, as well as the length of the exposed material.

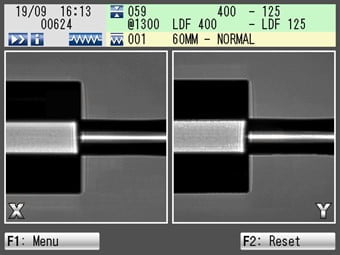

The simple and reliable design solution ensures repeatable and durable splices of all types of fibers, including photonic and LDF fibers, as well as their combinations.
