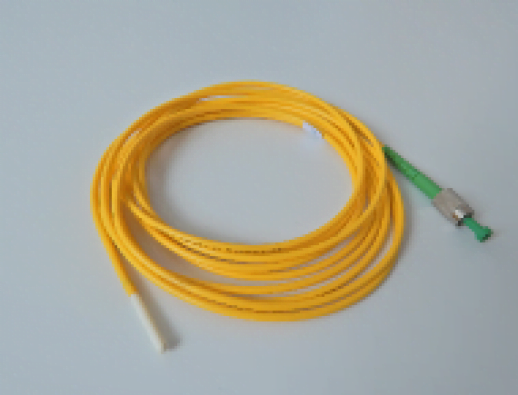

Temperature Sensor FBGT-01

The FBGT-01 fiber optic temperature sensor is an internal temperature sensor based on Fiber Bragg Grating technology. The device can be used on its own or in series as part of an FBG sensor array.

High accuracy and resolution
Immunity to electrical sparking and electromagnetic interference
Compact dimensions and high corrosion resistance
Series-connection capability (up to 10 sensors)
Fast and simple installation

Manufacturer: Safibra

Language: en

Specialty optical fibers, Laboratory Instruments

Product characteristics

The FBGT-01 features high accuracy and resolution. It has a fully fiber optic construction that provides inherent immunity to electrical sparking and electromagnetic interference. In addition, it combines compact dimensions, high corrosion resistance and long-term reliability.

Features

temperature monitoring for single applications or in a series connection
up to 10 sensors in a chain (measurable through 1 channel)
immune to electromagnetic interference
high precision and excellent stability
fast and simple installation

Applications

The main application is in SHM projects. The device is used primarily for compensation measurements to eliminate the influence of temperature on mechanical strain sensors, and subsequently for power-industry applications.

Temperature measurements are possible in solid, liquid and gaseous environments. Measurement is possible at single or multiple points, in sensing networks, etc. Suitable for environments with electromagnetic waves, HV applications, etc.

Specifications

Sensor dimensions:	3 mm x 3 mm x 23 mm
Temperature range:	-40 °C to +80 °C
Measurement resolution:	±0.1 °C
Measurement accuracy:	±1 °C

Download materials click to expand
