OS5500 Displacement Sensor

The OS5500 displacement sensor is an FBG (Fiber Bragg Grating) based gauge designed to measure small changes up to 450 mm in civil and geotechnical structures.

Measuring range up to 450 mm
Rugged aluminium housing, IP65
Full temperature compensation
Fast response time, stable measurements
Supports multiplexing of multiple instruments

Features

– Measuring range up to 450 mm using a 1 mm stainless steel cable
– Rugged aluminium housing suitable for outdoor installations, IP65 protection rating
– Qualified to the same rigorous standards applied to comparable electronic gauges
– Internal protection of connectors/splices
– Supports multiplexing of multiple instruments over a single fiber
– Full temperature compensation across the entire operating range
– Fast response time, stable measurements, high data resolution
– Designed for simple installation in various applications

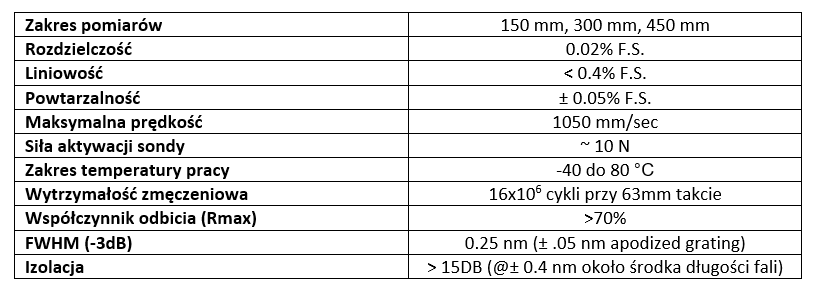

Properties

Applications

-Structures (bridges, dams, tunnels, mines, buildings, drilling platforms)
-Power generation (wind turbines, oil wells, pipelines, nuclear reactors, generators)
-Transport (railways, trains, roadways, specialized vehicles, cranes)
-Marine vessels (hull, deck, cargo containers)
-Aerospace (airframes, composite structures, wind tunnels, static and dynamic testing)
