CZUJNIK ODKSZTAŁCENIA ROZETA CMIWS OS3300

OS3300 CMIWS Strain Rosette Sensor

The Luna os3300s are fiber-optic strain “rosette” sensors based on Fiber Bragg Grating (FBG) technology. They feature simple integration, with low-profile sensors that can be distributed over distances up to 10 km, and 3 active strain-sensing elements (0°/45°/90°) providing robust sensor coverage.

  • Based on Fiber Bragg Grating (FBG)
  • Simple integration and low-profile design
  • Range up to 10 km with 3 strain-sensing elements
  • Strain range from -1800 to 1800 µε
  • Optional temperature compensation
REQUEST A QUOTE

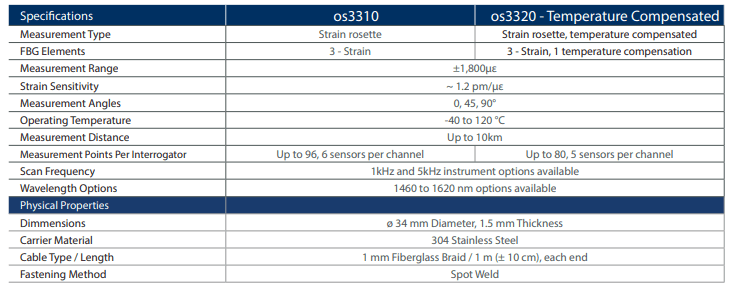

SPECIFICATION

The Luna os3300s are fiber-optic strain “rosette” sensors based on Fiber Bragg Grating (FBG) technology. They feature simple integration, with low-profile sensors that can be distributed over distances up to 10 km, and 3 active strain-sensing elements (0°/45°/90°) providing robust sensor coverage.

With a strain range from -1800 to 1800 µε and available integrated temperature compensation, the os3300 series offers a unique sensor deployment capability.

Features

Easy, simple and repeatable installation

Discreet, low-profile, multi-point
Ability to integrate up to 96 sensors on a single HYPERION instrument

Multi-parameter measurements combined on the same software platform

Long distance, with a range of over 10 km

Applications

Structures

Energy

Transportation

Marine vessels

Download materials click to expand

datasheet

PDF
