Displacement Sensor

A short-range displacement gauge that measures the relative position between two fixed points. It is based on Fiber Bragg Grating (FBG) technology. The standard measuring range is from 0 to 50 mm. The sensor has connectors on both sides and can be used standalone or in series as part of various FBG sensor arrays. Installing and wiring such arrays is significantly less expensive and less cumbersome than comparable electronic measurement networks.

Fiber Bragg Grating (FBG) technology
Measuring range 0-50 mm
Immune to EM radiation
High resolution
Series installation

The displacement sensor is the optical fiber equivalent of potentiometric, inductive or capacitive displacement indicators and can be mounted directly on the surface of the monitored structure.

The displacement sensor features high accuracy and resolution as well as immunity to electrical sparks and electromagnetic interference. It is suitable for remote sensing and can be installed several kilometers away from the measurement unit. It is protected against water, ensuring an IP67 protection rating.

Features

immune to electromagnetic radiation, designed for operation in harsh conditions
sensors can be installed in series, reducing the amount of wiring for the user
fast response
high resolution
sensor placed directly on the monitored parts
fast, simple and repeatable installation
intrinsically safe design

Applications

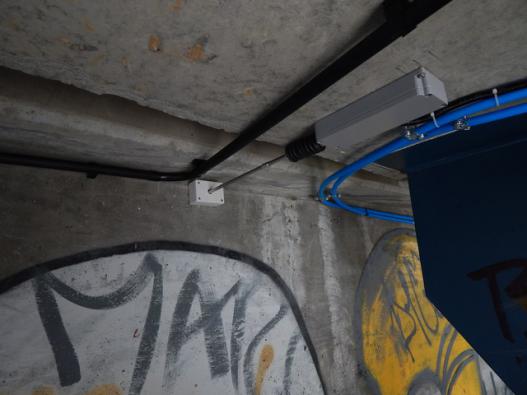

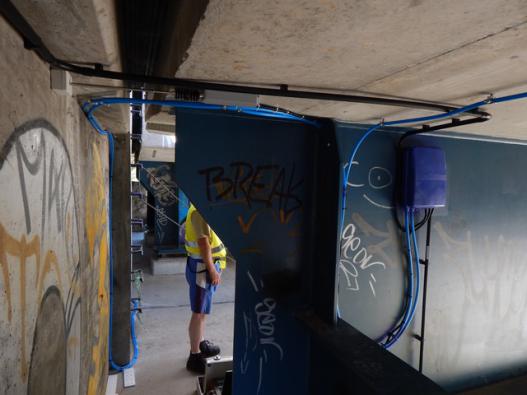

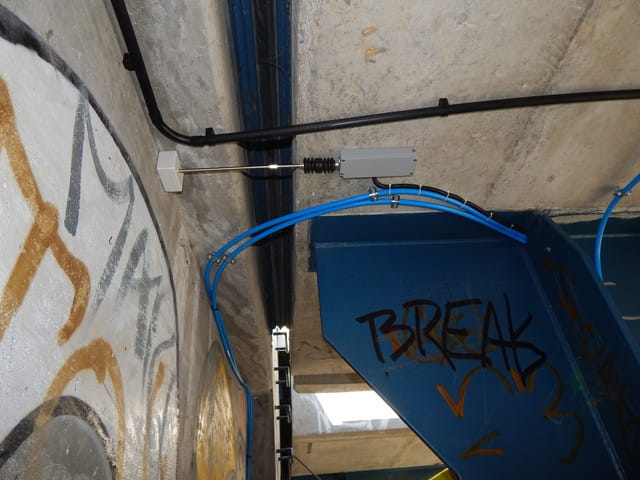

The optical fiber displacement sensor can be used to measure changes in the position of fixed points on structures (due to strain, compression and bending). This enables continuous monitoring of the structural condition of the structure, displacement or unwanted deformations in (concrete) walls, bridges, buildings, ships, etc. The sensor can also be used to monitor illegal access or acts of vandalism at various facilities. Electrical power is not required on site, and the interrogator can be located tens of kilometers away.

civil engineering facilities
large concrete and metal components
nuclear power plants
chemical and petrochemical industry
laboratories and universities
dams

Specification

Sensor dimensions:	185 x 65 x 35 mm (excluding positioning lever)
Strain range:	0 to 50 mm
Resolution:	0.05 mm
Operating temperature:	-20 °C to +60 °C
Central wavelength:	1510 to 1590 nm
Connector type:	FC/APC (standard)
Pigtail length:	1.0 m (standard)
Housing:	painted aluminum, stainless steel
Protection class:	IP67
