Albedo Net.Time τ – grandmaster PTP / serwer czasu PRC (ITU-T G.811)

Albedo Net.Time τ – PTP Grandmaster / PRC Time Server (ITU-T G.811)

Name: Albedo Net.Time τ – PTP Grandmaster / PRC Time Server (ITU-T G.811)
Brand: Albedo Telecom
SKU: 17779

Albedo Net.Time τ (Tau) is a carrier-grade PTP grandmaster and Primary Reference Clock (PRC) compliant with ITU-T G.811, with a built-in GNSS receiver and rubidium oscillator – a precise time and frequency source for 5G, backbone and telecom networks, data centers and financial institutions.

Albedo Net.Time τ (Tau) is a carrier-grade Primary Reference Clock compliant with ITU-T G.811. It is a PTP/NTP grandmaster with a built-in GNSS receiver and rubidium oscillator, designed as a source of precise time and frequency for 5G, backbone networks, data centers and financial institutions. Thanks to its universal protocol translator function, Net.Time τ accepts and delivers practically any time signal (PTP, NTP, SyncE, GNSS, ToD, 1PPS, T1/E1, MHz), allowing legacy infrastructure to be seamlessly integrated with the new PTP standard.

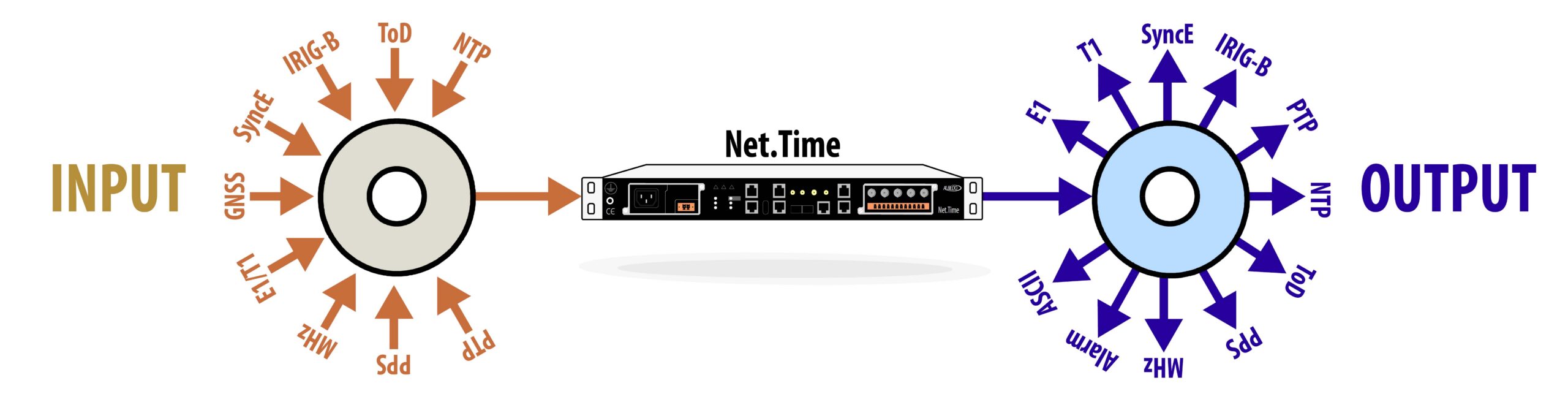

Net.Time as a universal time protocol translator: any input signal (GNSS, IRIG-B, NTP, PPS, SyncE, E1/T1) translated to any output.

Key advantages of Net.Time τ

PRC compliant with ITU-T G.811 – carrier-grade time and frequency reference for the entire network
PTP grandmaster (Telecom profile) + SyncE – meets the stringent phase and frequency requirements of 5G networks
Built-in 72-channel, multi-band GNSS (GPS, GLONASS, BeiDou, Galileo) – accuracy <40 ns, resistance to interference and spoofing
Rubidium oscillator + holdover – time maintained on GNSS loss (100 ns @ 10 h)
Redundant power supply and 19″/1U design, passive (fanless) operation
Universal protocol translator – PTP↔NTP↔SyncE↔IRIG-B in any input/output combination
Up to 512 unicast PTP clients, Web/CLI/SNMP management, RADIUS/TACACS+
Up to 10 years warranty – exceptionally low total cost of ownership (TCO)

Applications

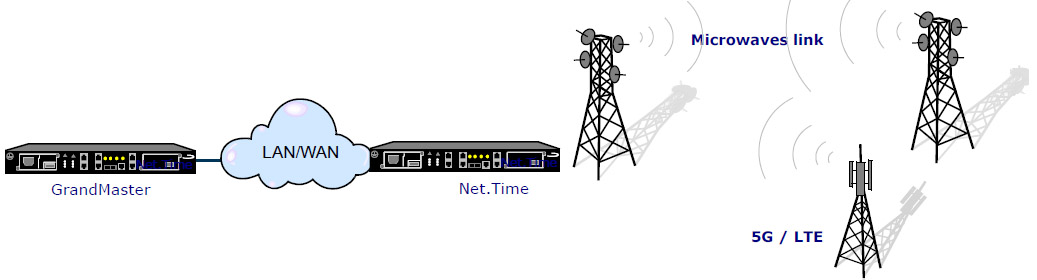

Synchronization of the backbone network and 5G RAN – Net.Time τ as a carrier-grade time and frequency source.

Synchronization of the network backbone and 5G RAN access network
Data centers and enterprise networks
Digital broadcast
Time-stamping of financial transactions (regulatory compliance)

Technical specification

Throughput / ports	1 Gb/s · 2 ports
PTP profile	Telecom (in/out)
SyncE	yes (in/out)
Unicast PTP clients	up to 512
Clock class	Primary Reference Clock – ITU-T G.811
Platform	19", 1U, aluminum enclosure, passive cooling (fanless)
Operating temperature	−40…+70°C
GNSS receiver	72 channels – GPS, GLONASS, BeiDou, Galileo; single- / multi-band versions
Oscillator	TCXO / OCXO / OCXO High Quality / Rubidium / Rubidium High Quality
Accuracy	GNSS <40 ns, ToD <10 ns
Holdover	Rubidium: 100 ns @ 10 h, 500 ns @ 24 h, 1 µs @ 48 h · OCXO: 500 ns @ 2 h, 1 µs @ 4 h, 5 µs @ 24 h
Input/output signals	PTP, NTP, ToD, n × 1PPS, IRIG-B, SyncE, MHz, T1, E1, DCF77
Protocol translator	any input signal/protocol → any output
Configuration	Slave / Master / Boundary (up to 1024 unicast clients)
Management	Web, CLI, Syslog, SNMP v2/v3, SGRwin
Access control	RADIUS, TACACS+
Power supply	redundant (single/dual); AC 100–240 V, DC 18–75 V or 43–160 V, AC/DC 85–264 V / 100–370 V
Warranty	up to 10 years

Frequently asked questions (FAQ)

What is the difference between a PTP grandmaster and an NTP server?

A PTP grandmaster (IEEE 1588) delivers nanosecond-/microsecond-level and phase synchronization, required for example in 5G and power grids, whereas a classic NTP server provides millisecond-level accuracy. Net.Time τ combines both worlds – it is simultaneously a PTP grandmaster and an NTP server.

What is a Primary Reference Clock (PRC) according to ITU-T G.811?

A PRC is the top-level reference clock with the highest class of frequency stability in a telecom network. Net.Time τ meets the G.811 requirements, so it can act as the main source of time and frequency for the entire infrastructure.

Does Net.Time τ protect against spoofing and GPS loss?

Yes. The multi-band GNSS receiver increases resistance to interference and spoofing, and the rubidium oscillator provides holdover (time maintenance) after loss of the satellite signal – 100 ns for 10 hours.

Which time signals does Net.Time τ support?

PTP, NTP, SyncE, GNSS, ToD, n × 1PPS, IRIG-B, T1/E1, MHz – in any input/output combination, with translation between protocols.

Interlab Sp. z o.o. is an authorized distributor of Albedo Telecom in Poland. We provide technical consulting, configuration selection, demonstrations and deployment support. Contact us to receive a quote or schedule a presentation.
