ToupTek M-SD-HM – Portable Microscope Stands (Compact, Benchtop)

Name: ToupTek M-SD-HM – Portable Microscope Stands (Compact, Benchtop)
Brand: ToupTek
SKU: 17936

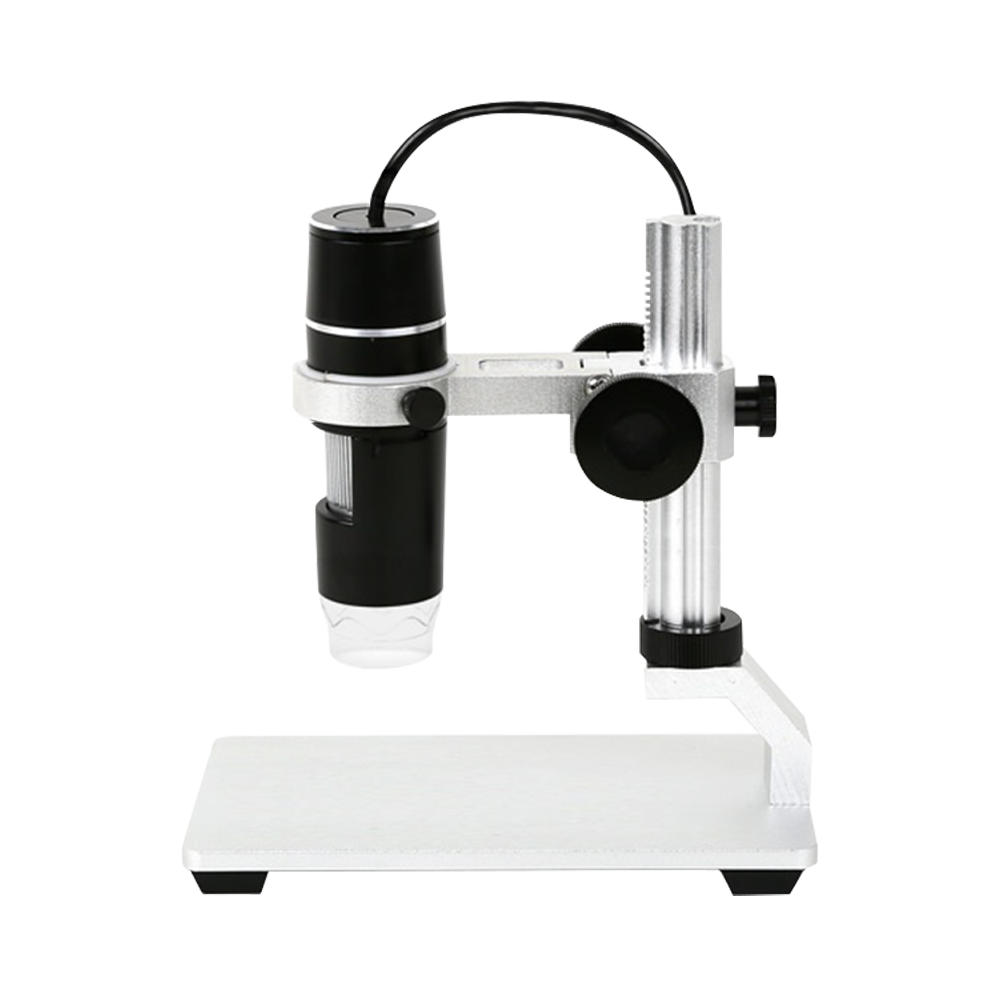

ToupTek M-SD-HM is a series of portable, benchtop microscope stands with screw, rack-and-pinion and clamping mechanisms, featuring 33–41 mm support rings. They combine mobility with stability – for field work, training, light-duty research and portable deployments.

When to choose a portable stand?

When mobility and quick setup matter – the M-SD-HM are lightweight and compact, yet stable. The HM1–HM5 variants differ in focusing mechanism (screw / rack-and-pinion / composite coarse+fine) and range (51–110 mm), working with portable microscopes, zoom lenses and industrial C-mount cameras.

Key features

Variants HM1–HM5: screw, rack-and-pinion, composite (coarse+fine)
Support rings Φ33–41 mm
Focusing range 51–110 mm (by variant)
Lightweight construction: anodized aluminum / polymer
Compact, for benchtop and portable work
Works with portable microscopes, zoom lenses and C-mount cameras

Technical specification

Type	portable microscope stands
Variants	HM1–HM5
Mechanisms	screw / rack-and-pinion / composite (coarse+fine)
Support ring	Φ33–41 mm
Focusing range	51–110 mm (by variant)
Material	anodized aluminum / polymer
