OBR4610 Optical Reflectometer

The Luna OBR 4610 extends Luna’s multi-award-winning optical reflectometer to 1060 nm applications.

Zero dead zone
Operates at 1040 – 1080 nm
10 µm sampling resolution over 30 m length
80 dB dynamic range
Backscatter-level sensitivity (-130 dB)

Designed for testing components and short optical networks as well as troubleshooting, the OBR 4610 delivers ultra-high-resolution reflectometry with backscatter-level sensitivity. With zero dead zone and exceptionally low noise, the OBR 4610 lets you “look inside” your components and systems and map reflection losses along the entire length of the optical path.

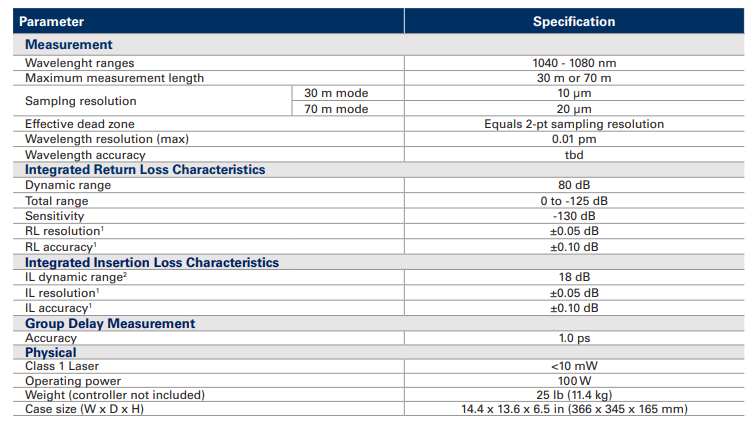

Characteristics

Zero dead zone
Operates at 1040 - 1080 nm
10 µm sampling resolution over 30 m length
80 dB dynamic range
Backscatter-level sensitivity (-130 dB)
Fast scanning
Measures IL, RL, scatter loss, distance, polarization states, phase derivative and group delay
