FBG Strain Sensor

The FBGS-01 optical fiber strain sensor measures tension or compression between two fixed points. It uses Fiber Bragg Grating technology.

Immune to electromagnetic radiation
Sensors can be daisy-chained in series
Compression and tension monitoring
High sensitivity
Long-term reliability

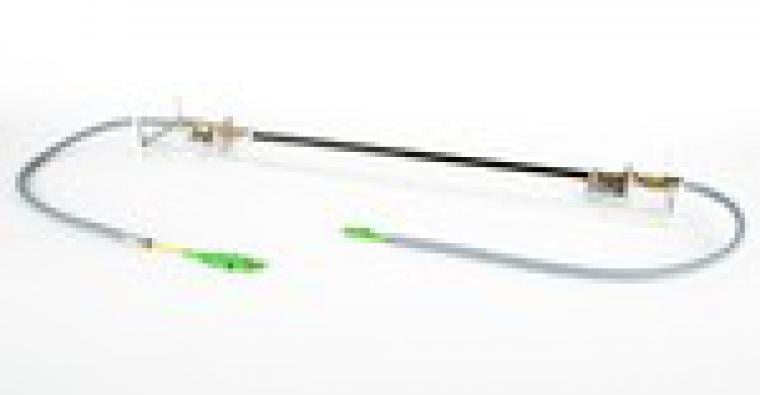

The standard gauge length ranges from 250 mm to 2 meters. The sensor has connectors on both sides and can be used standalone or in series as part of an FBG sensor array. Installing and wiring such arrays is significantly less expensive and less cumbersome than comparable electronic measurement networks.

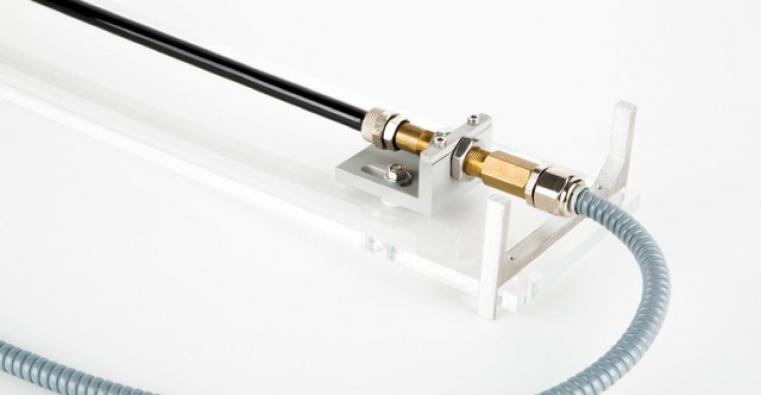

The FBGS-01 strain sensor can be mounted directly on the surface of a structure using adhesive. The sensor is supplied with two aluminum L-brackets and mounting elements. In this way the optical fiber sensor is in direct contact with the surface and therefore accurately measures the strain on the surface.

The FBGS-01 strain sensor features high accuracy and resolution as well as immunity to electrical sparks and electromagnetic interference. It is suitable for remote sensing and can be installed several kilometers away from the measurement unit.

Features:

immune to electromagnetic radiation, safe for operation in harsh conditions
sensors can be daisy-chained in series
compression and tension monitoring
high FBG strength, which means excellent fatigue resistance
high sensitivity
long-term reliability
large-scale integration
spark-safe design

Applications:

The device enables continuous monitoring of the condition of structures, cracks and fissures in (concrete) walls, monitoring of bridges, dams, buildings, tunnels, ships, trains and other complex structures, etc. Electrical power is not required on site; the interrogator can be placed dozens of kilometers away.

civil engineering facilities
large concrete and metal components
nuclear power plants
chemical and petrochemical industry
gas and oil industry
laboratories and universities

Specification:

Sensor length:	from 250mm to 2m
Strain range:	-0.5% shortening and +1% elongation
Strain measurement accuracy:	1.2 pm/με
Operating temperature:	from -20 °C to +60 °C
Central wavelength:	1510 to 1590 nm, 810-860
Connector type:	FC/APC (standard)
Pigtail length:	1.0 m (standard)
Anchor material:	Aluminum
Protection class:	IP68
